Remove/Install Multifunction Camera - AR54.21-P-3000RG
Model 190
With Code 22P (Lane tracking package)
Model 190
With Code 513 (Speed Limit Assist)
Model 190
With Code 608 (Adaptive Highbeam Assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

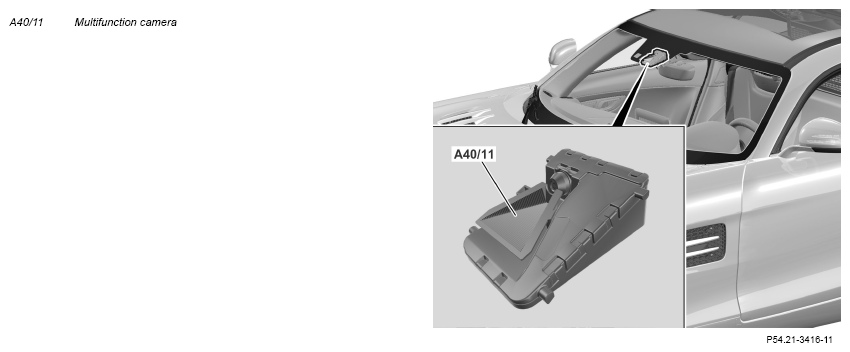

| 2 | Remove cover from multifunction camera (A40/11) | ||
| 3 | Release and disconnect electrical connection | ||
| 4 | Remove multifunction camera (A40/11) | ||
| 5 | Install in the reverse order | ||
| Calibrate | |||
| 6 | Calibrate multifunction camera (A40/11) using diagnostic system | When replacing the multifunction camera (A40/11) or when replacing the windshield. | |
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| AD00.00-P-2000-04B |
