Remove/Install Right Turbocharger - AR09.40-P-6027MNG

Engine 177 in model 253

G12817082Courtesy of MERCEDES-BENZ USA
G12817083Courtesy of MERCEDES-BENZ USA
G12817084Courtesy of MERCEDES-BENZ USA
G12817085Courtesy of MERCEDES-BENZ USA
G12817086Courtesy of MERCEDES-BENZ USA
G12817087Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on coolant   AH20.00-N-2080-01A
REMOVINGINSTALLING Remove/install
1 Drain off coolant IMPORTANTInstallation:  Do not install center and front lower engine compartment lining until after leak test. AR20.00-P-1142MNG
2 Remove left-hand air filter housing IMPORTANTInstallation:  Only install upper engine cover after the leak test. AR09.10-P-1151MNG
3 Remove right air filter housing   AR09.10-P-1152MNG
4 Unclip engine wiring harness of right cylinder head cover at the heat shields and place to one side   AR15.18-P-1000-06MNG
    TORQUE SPECIFICATION Bolt, engine wiring harness ground to cylinder head cover *BA15.10-P-1003-05F
    TORQUE SPECIFICATION Bolt, engine wiring harness to cylinder head cover *BA15.18-P-1001-01G
5 Remove ignition coil for cylinders 1+2 (T4)   AR15.12-P-2009MNG
6 Remove right heat shield on right exhaust gas   AR09.40-P-6027-00MNG
    TORQUE SPECIFICATION Bolt, side heat shield to cylinder head cover *BA09.40-P-1007-01ZA
    TORQUE SPECIFICATION Pipe for inerting to engine *BA86.10-P-1002-03E
7 Check elastomer bearings of the right heat shield for damage If a problem arises

Replace elastomer bearing.

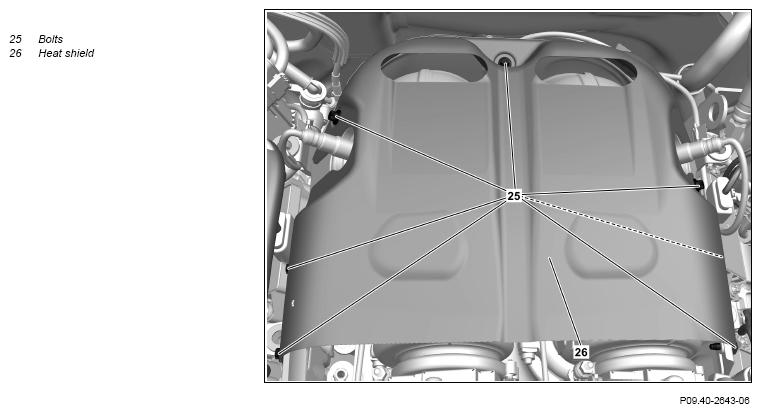

8 Remove screws (25) and remove heat shield (26) upward TORQUE SPECIFICATION Bolt, upper heat shield to bracket/side heat shield *BA09.40-P-1006-01ZA
9 Remove left and right catalytic converter Left catalytic converter AR49.20-P-0101MNG
    Right catalytic converter AR49.20-P-0102MNG

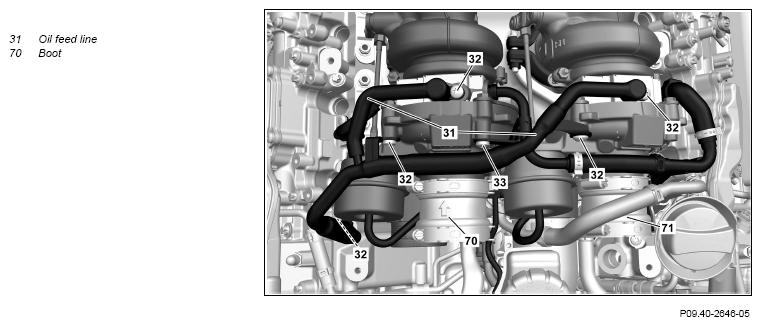

10 Remove boot (70) from right exhaust gas turbocharger (1) and place to one side TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J
11 Remove vacuum hose (12) from right exhaust gas turbocharger (1)
12 Remove oil feed line (31) from right exhaust gas turbocharger (1) and seal openings with suitable stop plugs   AR09.40-P-6040MNG
    SPECIAL TOOL Record plug Fig 1

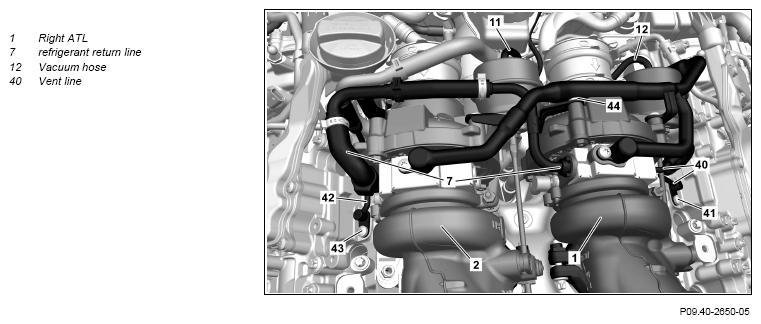

13 Remove coolant return line (7)   AR20.20-P-1101MNG

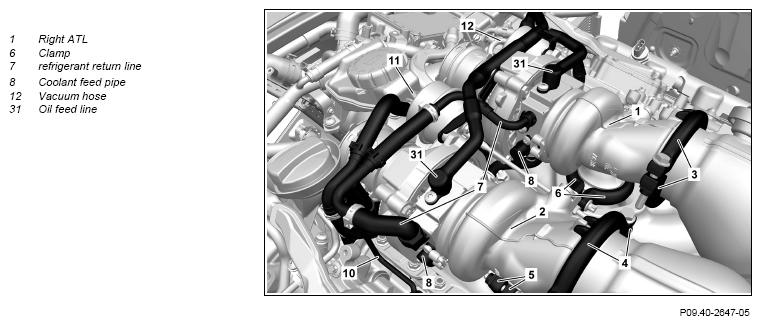

14 Remove coolant feed pipe (8) on right exhaust gas turbocharger (1) and on right cylinder head   AR20.20-P-1100MNG
15 Remove bleed line (40) from right exhaust gas turbocharger (1)   AR20.20-P-1201MNG
16 Remove charge air hose on right exhaust gas turbocharger (1) TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X

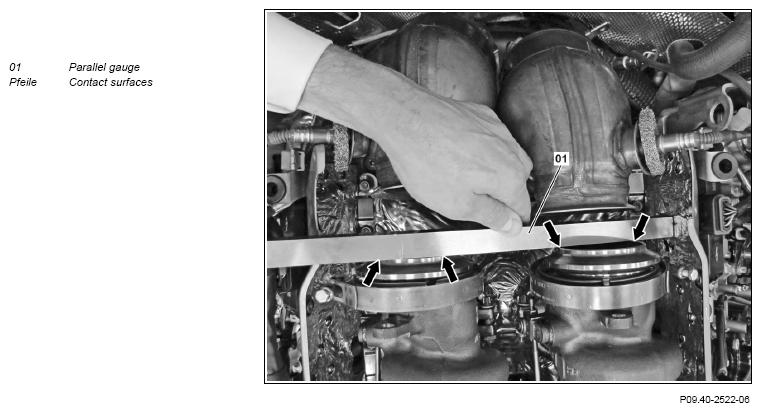

17 Remove clamp (6) IMPORTANTInstallation:  Install new clamp (6). IMPORTANTInstallation:  The SI parallel gauge (01) must be flush with the contact surfaces (arrows) so that the parallelism of the left exhaust gas turbocharger to the right exhaust gas turbocharger (1) is ensured. TORQUE SPECIFICATION Bolt, turbocharger clamp to exhaust manifold *BA09.40-P-1001-01ZA
    SPECIAL TOOL Parallel support Fig 2
18 Remove right exhaust gas turbocharger (1) with oil return feed line (18) upward NOTESInstallation:

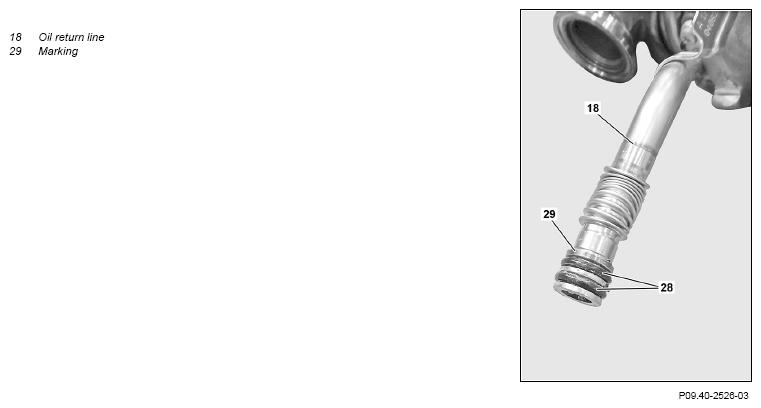

Ensure that marking (29) on oil return feed line (18) is flush with crankcase.
Oil return feed line (18) will otherwise be leaky. IMPORTANTInstallation:  Replace sealing ring on right exhaust manifold.

19 Remove oil return feed line (18) from right exhaust gas turbocharger (1)   AR09.40-P-6042MNG
20 Install in the reverse order
INSPECT Check
21
REFER TO MAINTENANCE
Check engine oil level and correct if necessary   AP18.00-P-1812CKI
WARNING
22
Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.
Perform an engine test run; check engine for functionality and leaktightness
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
23 Install center and front lower engine compartment paneling   AR61.20-P-1105LW
24 Install upper engine cover
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 1, 5
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1001-01ZA Bolt, turbocharger clamp to exhaust manifold Nm 21
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1006-01ZA Bolt, upper heat shield to bracket/side heat shield Nm 9
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
GROUND STRAP

Number Designation Engine 177
BA15.10-P-1003-05F Bolt, engine wiring harness ground to cylinder head cover Nm 9
ENGINE WIRING HARNESS

Number Designation Engine 177
BA15.18-P-1001-01G Bolt, engine wiring harness to cylinder head cover Nm 9
INERTING

Number Designation Model 253
BA86.10-P-1002-03E Pipe for inerting to engine M6 Screw Nm 8
Nut Stage 1 Nm 8
Stage 2 ∠° 30
Fig 1: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Parallel Support (168 589 03 21 00)
G12817089Courtesy of MERCEDES-BENZ USA
