Remove/Install Oil Circuit Feed Line Of Turbochargers - AR09.40-P-6040MNG
Engine 177 in model 253
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1152MNG | |
| 2 | Remove screw/bolts (2) | *BA09.40-P-1002-01ZA | |
| 3 | Remove screws (3) | *BA09.40-P-1002-01ZA | |

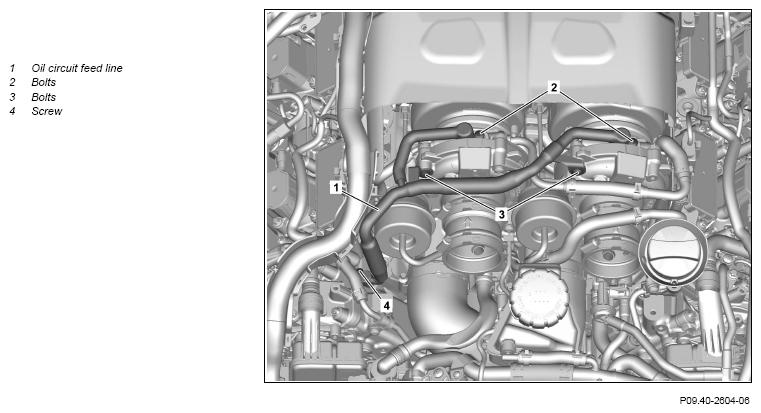

| 4 | Unscrew screw/bolt (4) and remove oil circuit feed line (1) upwards | *BA09.40-P-1002-01ZA | |
| 5 | Seal openings with suitable stop plugs or protective covers | Fig 1 | |
| Fig 2 | |||
| 6 | Install in the reverse order | ||
| 7 | Check oil level in engine and correct if necessary | ||
| AP18.00-P-1812CKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper operation and leaktightness |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 |
