Remove/Install Coolant Circuit Return Line Of Turbochargers - AR20.20-P-1101MNG

Engine 177 in model 253

G12817276Courtesy of MERCEDES-BENZ USA

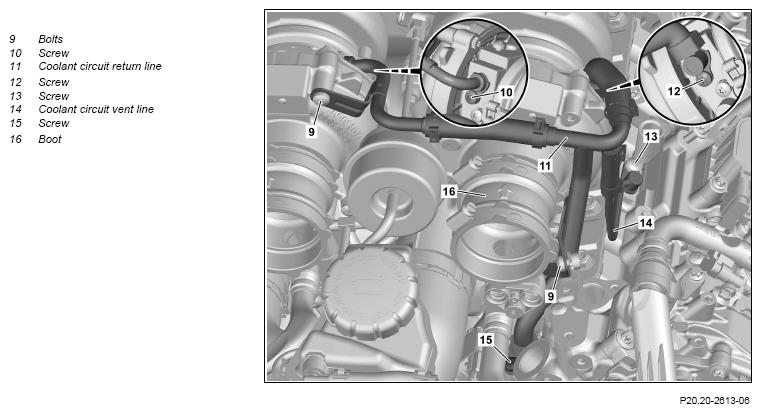

Fig 1: Turbocharger Coolant Return Line Component Location - Engine 177
G12817277Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on coolant level   AH20.00-P-1142-01CW
REMOVINGINSTALLING Remove/install
1 Remove upper design cover over heat shield (26) in upward direction INSTALLATION IMPORTANT Only install upper design cove over heat shield (26) after leak test.
2 Drain off coolant INSTALLATION IMPORTANT Do not install center and front lower engine compartment lining until after leak test. AR20.00-P-1142MNG
3 Remove left-hand air filter housing   AR09.10-P-1151MNG
4 Remove right air filter housing   AR09.10-P-1151MNG
5 Unclip engine wiring harness of left cylinder head cover at heat shields and place to one side   AR15.18-P-1000-07MNG
TORQUE SPECIFICATION Bolt, engine wiring harness ground to cylinder head cover *BA15.10-P-1003-05F
    TORQUE SPECIFICATION Bolt, engine wiring harness to cylinder head cover *BA15.18-P-1001-01G

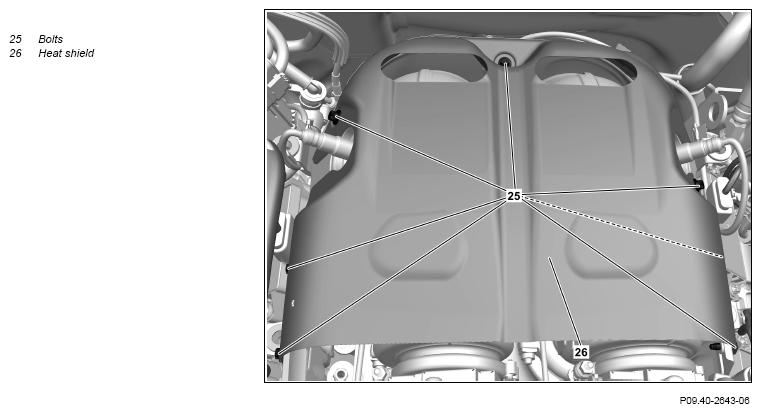

6 Remove screws/bolts (25) TORQUE SPECIFICATION Bolt, upper heat shield to bracket/side heat shield *BA09.40-P-1006-01ZA
7 Remove heat shield (26) in upward direction
8 Remove ignition coil, cylinders 5+6 (T4/2)   AR15.12-P-2008MNG
9 Remove left heat shield at left exhaust gas turbocharger   AR09.40-P-6026-01MNG
TORQUE SPECIFICATION Bolt, side heat shield to cylinder head cover *BA09.40-P-1007-01ZA
10 Check elastomer bearings of left heat shield at left exhaust gas turbocharger for damage If a problem arises

Replace elastomer bearing.

11 Remove boot (16) on left exhaust gas turbocharger and place to one side TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X
12 Remove oil circuit feed line at left turbocharger, and place to side   AR09.40-P-6040MNG
13 Unscrew screw/bolts (9) TORQUE SPECIFICATION Bolt, coolant line to turbocharger/cylinder head *BA09.40-P-1004-01ZA
14 Remove screws/bolts (10, 12, 13, 15) TORQUE SPECIFICATION Bolt, coolant line to turbocharger/cylinder head *BA09.40-P-1004-01ZA
15 Remove coolant circuit return line (11) with coolant circuit vent line (14) upwards, and seal openings with suitable stop plugs INSTALLATION IMPORTANT Replace seals.
SPECIAL TOOL Record plug Fig 2
16 Remove coolant circuit vent line (14) from coolant circuit return line (11) On replacing coolant circuit return line (11). AR20.20-P-1200MNG
17 Install in the reverse order
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
18 Perform an engine test run and check engine for proper operation and leaktightness
19 Install center and front lower engine compartment paneling   AR61.20-P-1105LW
20 Install upper design cover over heat shield (26)
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1004-01ZA Bolt, coolant line to turbocharger/cylinder head Nm 9
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1006-01ZA Bolt, upper heat shield to bracket/side heat shield Nm 9
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
GROUND STRAP

Number Designation Engine 177
BA15.10-P-1003-05F Bolt, engine wiring harness ground to cylinder head cover Nm 9
ENGINE WIRING HARNESS

Number Designation Engine 177
BA15.18-P-1001-01G Bolt, engine wiring harness to cylinder head cover Nm 9
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
