Remove/Install Left Catalytic Converter - AR49.20-P-0101MNG
Engine 177 in model 253
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right and left air filter housing. | Right air filter housing | AR09.10-P-1152MNG |
| Left air filter housing | AR09.10-P-1151MNG | ||

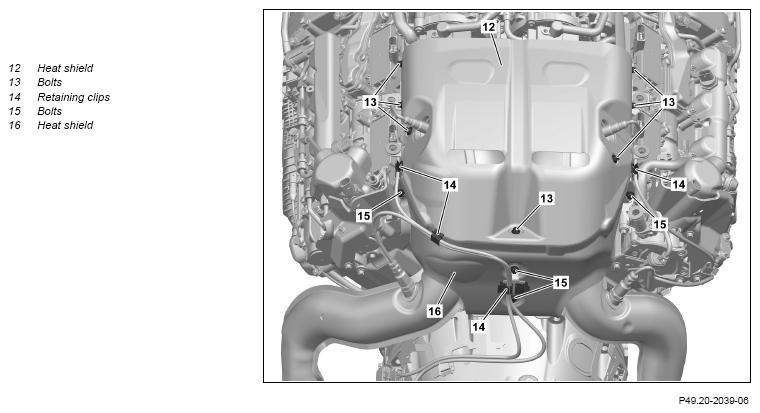

| 2 | Remove cover above heat shield (12). | ||
| 3 | Unclip wiring harness from retaining clips (14). | ||
| 4 | Remove screws (13) and remove heat shield (12) upward. | *BA09.40-P-1006-01ZA | |
| 5 | Remove screws (15) and remove heat shield (16). | *BA09.40-P-1005-01ZA | |
| *BA09.40-P-1006-01ZA | |||
| 6 | Remove bracket (10). | *BA09.40-P-1005-01ZA | |

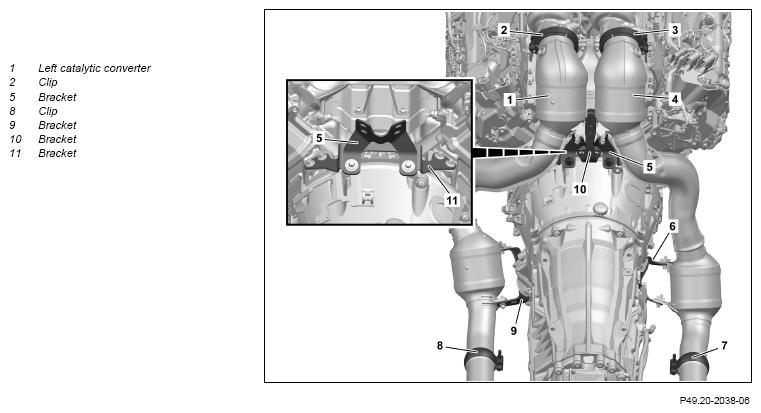

| 7 | Remove clamp (2) of left catalytic converter (1). | Pay attention to alignment of clamp (2). Leaks can occur otherwise. For two-piece clamp (2), install new screws/bolts and nuts. |
AR09.40-P-6018-01MNA |
| *BA49.10-P-1001-02E | |||
| Fig 1 | |||
| 8 | Remove left catalytic converter (1) from bracket (5). | *BA49.10-P-1003-02E | |
| 9 | Remove bottom center and rear engine compartment paneling. | AR61.20-P-1105LW | |
| 10 | Remove bracket (9). | *BA49.10-P-1011-02E | |
| 11 | Remove clamp (8). | Exhaust system must be aligned so that it is free of tension before tightening bolted connections. Otherwise, leaks will occur in the exhaust system. |
|
| *BA49.10-P-1005-02E | |||
| 12 | Secure left catalytic converter (1) against falling down. | ||
| 13 | Remove transmission. | Engine 177 in model 253 with transmission 725.0 with code M005 (4MATIC) |
AR27.10-P-0505MNG |
| 14 | Release electrical connector of left lambda sensor upstream of catalytic converter and disconnect. | AR07.04-P-0081MNG | |
| 15 | Release electrical connector of left lambda sensor downstream of catalytic converter and disconnect. | AR07.04-P-0082MNG | |
| 16 | Remove bracket (11) with bracket (5). | *BA49.10-P-1006-02E | |
| 17 | Release left catalytic converter (1) and remove downward. | ||
| 18 | Remove combustion and corrosion residues from the flange connections. | ||
| 19 | Remove left lambda sensor upstream of catalytic converter. | When replacing the left catalytic converter (1). | AR07.04-P-0081MNG |
| 20 | Remove left lambda sensor downstream of catalytic converter. | When replacing the left catalytic converter (1). | AR07.04-P-0082MNG |
| 21 | Install in the reverse order. | ||
| 22 | Check installation position and unobstructed movement of the left catalytic converter (1). | If a problem arises, ↓ Re-align left catalytic converter (1). |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Perform engine test run to check exhaust system for leak tightness. | ||
| 24 | Install bottom center and rear engine compartment paneling. | AR61.20-P-1105LW |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1005-01ZA | Bolt, rear heat shield bracket to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | ||
|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 |
| M8 | Nm | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1003-02E | Bolt, butterfly bracket to catalytic converter | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1005-02E | Clamp, front exhaust system to center exhaust system | Nm | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1006-02E | Bolt, exhaust system bracket to front of crankcase | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1011-02E | Bolt, bracket for catalytic converter to catalytic converter/bracket | Nm | 20 |
