Remove/Install Coolant Circuit Vent Line Of Right Turbocharger - AR20.20-P-1201MNG

Engine 177 in model 253

Courtesy of MERCEDES-BENZ USA

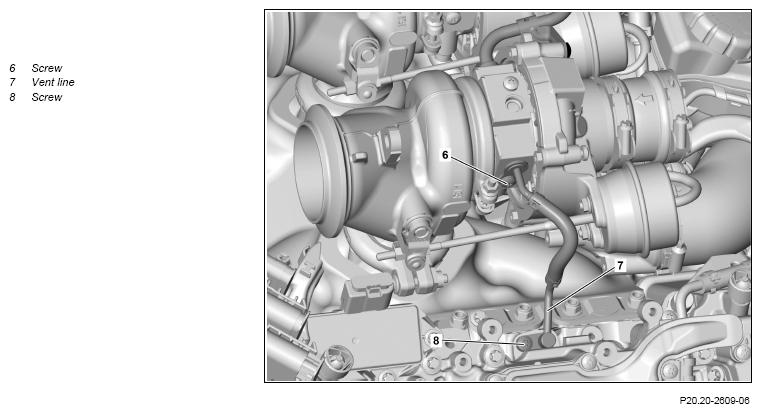

Fig 1: Right Turbocharger Coolant Vent Line Component Location - Engine 177

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Remove top engine cover upward over heat shield (26)	Install top engine cover over heat shield (26) only after the leak test.
2	Drain off coolant	Do not install center and front lower engine compartment lining until after leak test.	AR20.00-P-1142MNG
3	Remove left-hand air filter housing		AR09.10-P-1151MNG
4	Remove right air filter housing		AR09.10-P-1151MNG
5	Unclip engine wiring harness of right cylinder head cover at the heat shields and place to one side	Bolt, engine wiring harness ground to cylinder head cover	AR15.18-P-1000-06MNG *BA15.10-P-1003-05F
		Bolt, engine wiring harness to cylinder head cover	*BA15.18-P-1001-01G

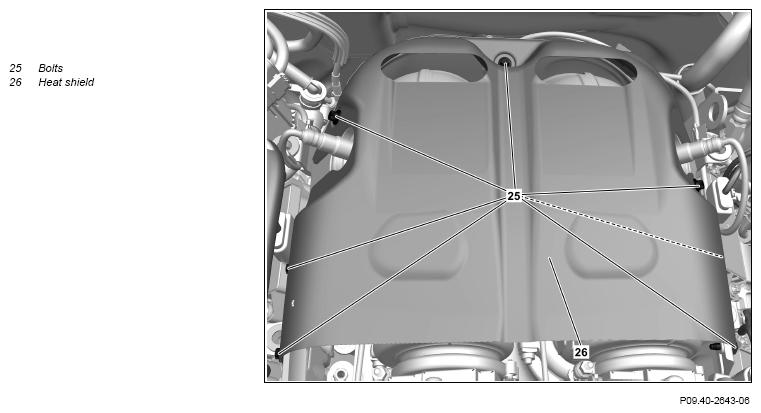

6	Remove screws/bolts (25)	Bolt, upper heat shield to bracket/side heat shield	*BA09.40-P-1006-01ZA
7	Remove heat shield (26) in upward direction
8	Remove right heat shield on right exhaust gas turbocharger	Bolt, side heat shield to cylinder head cover	AR09.40-P-6027-00MNG *BA09.40-P-1007-01ZA
		Pipe for inerting to engine	*BA86.10-P-1002-03E
9	Check elastomer bearings of right heat shield on right exhaust gas turbocharger for damage	If a problem arises ↓ Replace elastomer bearing.
10	Remove cylinder 1+2 ignition coil (T4)		AR15.12-P-2009MNG
11	Remove screw/bolts (6, 8)	Bolt, coolant line to turbocharger/cylinder head	*BA09.40-P-1004-01ZA
12	Remove vent line (7), and seal openings with suitable stop plugs	Replace seals.
		Record plug	Fig 2
13	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform an engine test run and check engine for proper operation and leaktightness
15	Install center and front lower engine compartment paneling		AR61.20-P-1105LW
16	Install top engine cover over heat shield (26)

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1004-01ZA	Bolt, coolant line to turbocharger/cylinder head	Nm	9

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1006-01ZA	Bolt, upper heat shield to bracket/side heat shield	Nm	9

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1007-01ZA	Bolt, side heat shield to cylinder head cover	Nm	9

GROUND STRAP

Number	Designation		Engine 177
BA15.10-P-1003-05F	Bolt, engine wiring harness ground to cylinder head cover	Nm	9

ENGINE WIRING HARNESS

Number	Designation		Engine 177
BA15.18-P-1001-01G	Bolt, engine wiring harness to cylinder head cover	Nm	9

INERTING

Number	Designation					Model 253
BA86.10-P-1002-03E	Pipe for inerting to engine	M6	Screw		Nm	8
			Nut	Stage 1	Nm	8
				Stage 2	∠°	30

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
