Remove/Install Ignition Coils Of Right Cylinder Bank - AR15.12-P-2009MNG

Engine 177 in model 253

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove right air filter housing		AR09.10-P-1152MNG

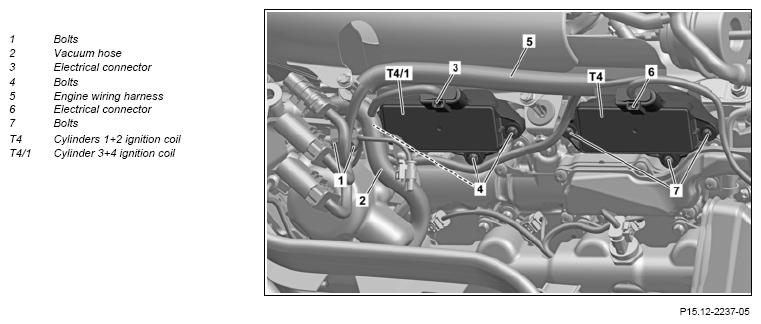

2	Release and disconnect electrical connector (6) of ignition coil, cylinders 1+2 (T4)
3	Remove bolts (7)	Bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04D
4	Detach ignition coil for cylinders 1+2 (T4) upward and remove	The ignition coil for cylinders 1+2 (T4) and the spark plug connectors form a single unit and can be removed only together.
5	Unclip engine wiring harness (5) over vacuum hose (2) and place to one side
6	Remove bolt (1)	M6 X 1	*BA00.10-P-1002-04A
7	Remove vacuum hose (2) from vacuum pump and seal openings using suitable protective covers	Set of protective caps	Fig 1>
8	Release and disconnect electrical connector (3) of ignition coil, cylinders 3+4 (T4/1)
9	Remove screws (4)	Bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04D
10	Detach ignition coil for cylinders 3+4 (T4/1) upward and remove	The ignition coil for cylinders 3+4 (T4/1) and the spark plug connector form a single unit and can be removed only together.
11	Check the ignition coil for cylinders 1+2 (T4) and check the ignition coil for cylinders 3+4 (T4/1) for damage	If a problem arises ↓ Replace ignition coil for cylinders 1+2 (T4) and replace ignition coil for cylinders 3+4 (T4/1).
12	Discharge approx. Apply about 1 g of spark plug connector grease to the spark plug connector	Apply spark plug connector grease to reduce pull-off and attachment forces Spark plug connectors will otherwise be damaged during next removal.
		Spark plug connector grease	*BR00.45-Z-1102-06A
13	Install in the reverse order
14	Read out and erase fault memory
			AD00.00-P-2000-04B
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Perform an engine test run and check engine for proper function

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6 X 1	Nm	9	13

IGNITION COIL

Number	Designation		Engine 177
BA15.10-P-1001-04D	Bolt, ignition coil to cylinder head cover	Nm	9

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1102-06A	Spark plug connector grease	A 002 989 80 51

Fig 1: Identifying Set Of Protective Caps (001 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
