Remove/Install Right Catalytic Converter - AR49.20-P-0102MNG
Engine 177 in model 253
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right and left air filter housings. | Right air filter housing | AR09.10-P-1152MNG |
| Left air filter housing | AR09.10-P-1151MNG | ||

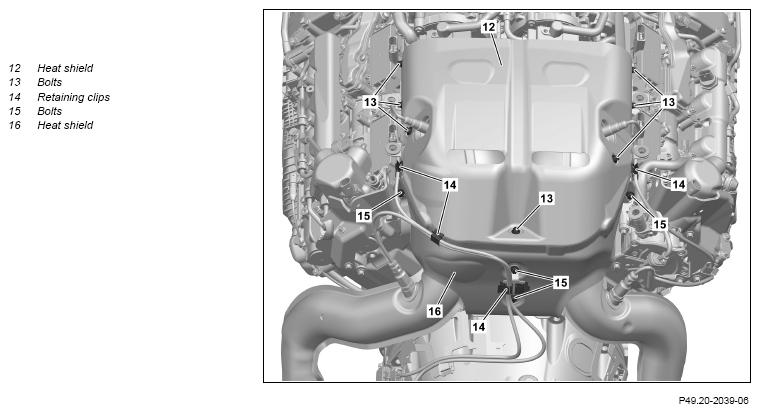

| 2 | Remove cover above heat shield (12). | ||
| 3 | Unclip wiring harness from retaining clips (14). | ||
| 4 | Remove screws (13) and remove heat shield (12) upward. | *BA09.40-P-1006-01ZA | |
| 5 | Remove screws (15) and remove heat shield (16). | *BA09.40-P-1005-01ZA | |
| *BA09.40-P-1006-01ZA | |||
| 6 | Remove bracket (10). | *BA09.40-P-1005-01ZA | |

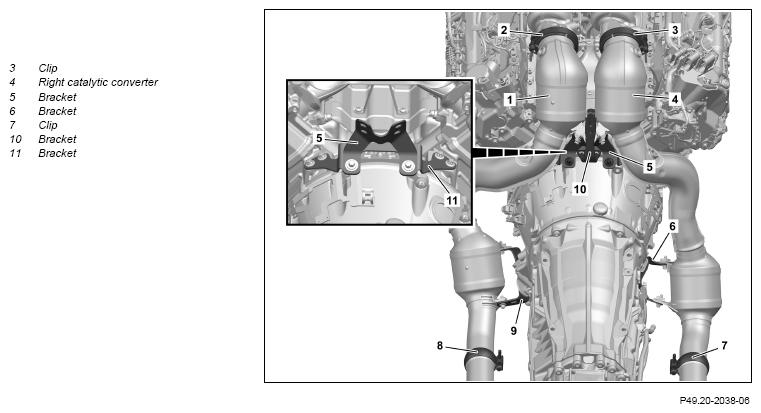

| 7 | Remove clamp (3) of right catalytic converter (4). | Pay attention to alignment of clamp (3). Leaks can occur otherwise. For two-piece clamp (3), replace screw/bolts and nuts. |
|
| *BA49.10-P-1001-02E | |||
| Fig 1 | |||
| 8 | Remove right catalytic converter (4) from bracket (5). | *BA49.10-P-1003-02E | |
| 9 | Remove lower center and rear engine compartment lining. | AR61.20-P-1105LW | |
| 10 | Remove bracket (6). | *BA49.10-P-1011-02E | |
| 11 | Remove clamp (7). | Exhaust system must be aligned so that it is free of tension before tightening bolted connections. Otherwise, leaks in exhaust system will occur. |
|
| *BA49.10-P-1005-02E | |||
| 12 | Secure right catalytic converter (4) against falling down. | ||
| 13 | Remove transmission. | Engine 177 in model 253 with transmission 725.0 with code M005 (4MATIC) |
AR27.10-P-0505MNG |
| 14 | Release and disconnect electrical connector of right lambda sensor upstream of catalytic converter. | AR07.04-P-0083MNG | |
| 15 | Release and disconnect electrical connector of right lambda sensor downstream of catalytic converter. | AR07.04-P-0084MNG | |
| 16 | Remove bracket (11) with bracket (5). | *BA49.10-P-1006-02E | |
| 17 | Release right catalytic converter (4) and remove downward. | ||
| 18 | Remove combustion and corrosion residues on flange connections. | ||
| 19 | Remove right lambda sensor upstream of catalytic converter. | When replacing the right catalytic converter (4). | AR07.04-P-0083MNG |
| 20 | Remove right lambda sensor downstream of catalytic converter. | When replacing the right catalytic converter (4). | AR07.04-P-0084MNG |
| 21 | Install in the reverse order. | ||
| 22 | Check installation position and unobstructed movement of right catalytic converter (4). | If a problem arises: ↓ Re-align right catalytic converter (4). |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Perform engine test run to check exhaust system for leaks. | ||
| 24 | Install lower front, center, and rear engine compartment lining. | AR61.20-P-1105LW |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1005-01ZA | Bolt, rear heat shield bracket to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | ||
|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 |
| M8 | Nm | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1003-02E | Bolt, butterfly bracket to catalytic converter | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1005-02E | Clamp, front exhaust system to center exhaust system | Nm | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1006-02E | Bolt, exhaust system bracket to front of crankcase | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1011-02E | Bolt, bracket for catalytic converter to catalytic converter/bracket | Nm | 20 |
