Overview Of System Components For Energizing Convenience Control - GF82.90-P-9992FG
Model 213
up to model year 2021
with code P72 (ENERGIZING comfort control)

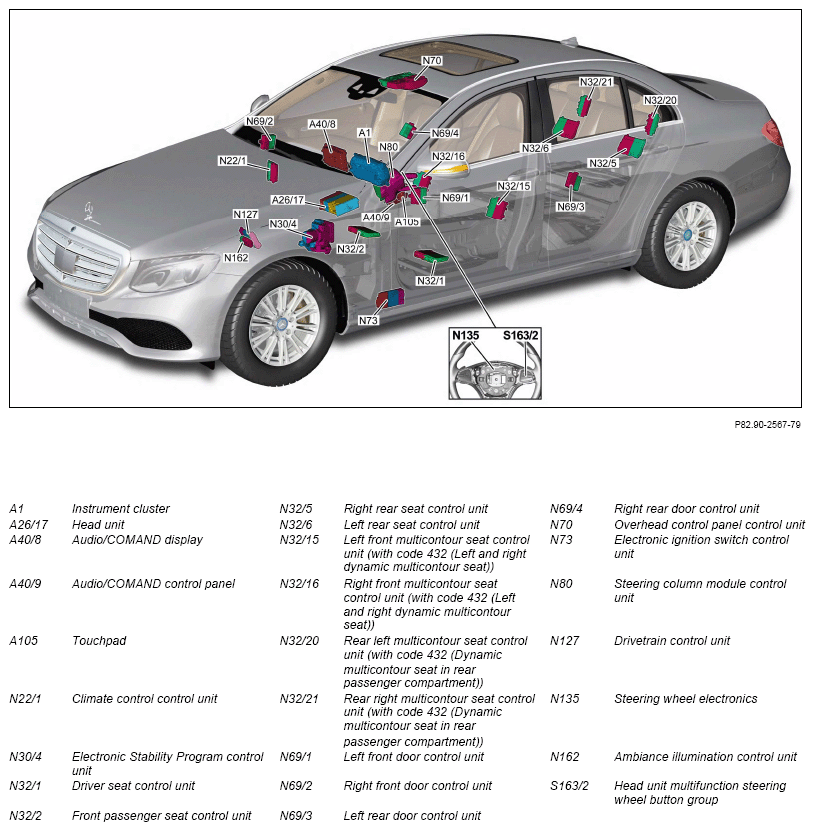

Overview of system components on model 213.0/1

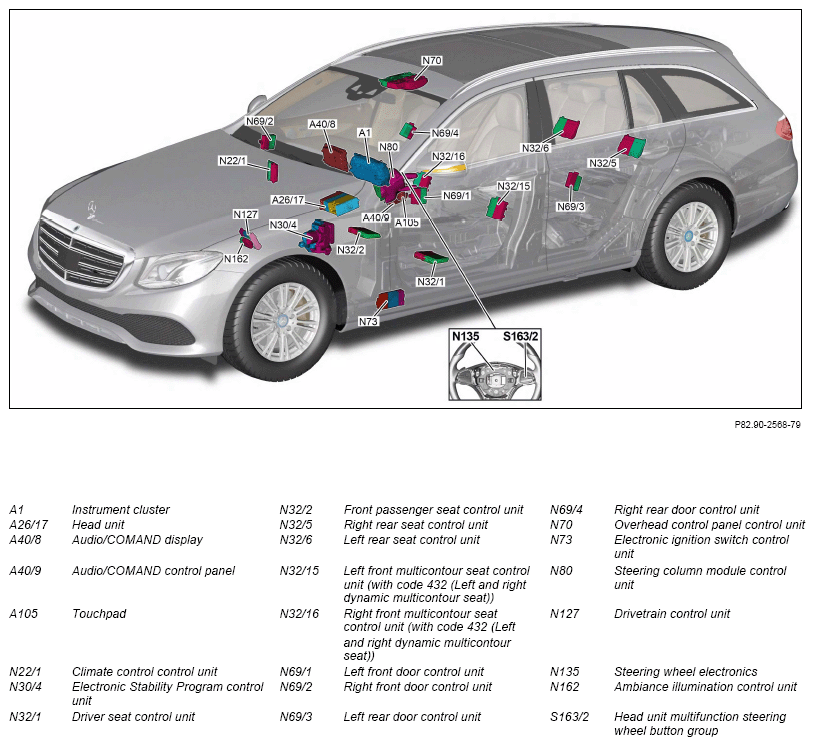

Overview of system components on model 213.2
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Head unit, component description | Model 213 up to model year 2021 with code 531 (COMMAND APS) with code P72 (ENERGIZING comfort control A26/17 | GF82.85-P-3140FGB ) | |
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150FG | |
| Component description for Audio/COMMAND control panel | Model 213 up to model year 2021 with code P72 (ENERGIZING comfort control except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FG ) | |
| Touchpad, component description | Model 213 up to model year 2021 with code 446 (Touchpad only) with code P72 (ENERGIZING comfort control) Model 213 up to model year 2021 with code 448 (Touchpad) with code P72 (ENERGIZING comfort control) A105 |
GF54.21-P-4511FG | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 with code P72 (ENERGIZING comfort control) N30/4 | GF42.45-P-5119FG | |
| Model 213.016/216 up to model year 2021 with code P72 (ENERGIZING comfort control) Model 213.050 up to model year 2021 with code P72 (ENERGIZING comfort control) Model 213.053/153 with engine 274.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N30/4 |
GF42.45-P-5119FGH | ||
| Component description for driver seat control unit | Model 213 up to model year 2021 with code 221 (Electrically adjustable left driver seat) with code P72 (ENERGIZING comfort control) Model 213 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) N32/1 |
GF91.29-P-5231FG | |
| Component description for front passenger seat control unit | Model 213 up to model year 2021 with code 222 (Electrically adjustable right driver seat) with code P72 (ENERGIZING comfort control) Model 213 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) N32/2 |
GF91.29-P-5241FG | |
| Right rear seat control unit, component description | Model 213.1 up to model year 2021 with code 223 (Electric backrest adjustment and head restraints) with code P72 (ENERGIZING comfort control) N32/5 |
GF91.29-P-5290FG | |
| Left rear seat control unit, component description | Model 213.1 up to model year 2021 with code 223 (Electric backrest adjustment and head restraints) with code P72 (ENERGIZING comfort control) N32/6 |
GF91.29-P-5285FG | |
| Multicontour seat control unit (MCS), component description | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) with code P72 (ENERGIZING comfort control) Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) with code P72 (ENERGIZING comfort control) N32/15, N32/16, N32/20, N32/21 |
GF91.25-P-5201FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 up to model year 2019 with code P72 (ENERGIZING comfort control) | GF54.21-P-6051FG | |
| Model 213 as of model year 2019 up to model year 2021 with code P72 (ENERGIZING comfort control) N80 | GF54.21-P-6051FGA | ||
| Drivetrain control unit, component description | Model 213 with engine 274.9, 276.8 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141MRP | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code P72 (ENERGIZING comfort control) Model 213 with engine 642.8 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141ORC | ||
| Ambiance illumination control unit, component description | Model 213 up to model year 2021 with code 877 (Ambient lighting) with code P72 (ENERGIZING comfort control) N162 |
GF82.20-P-5161FG | |
| Overall network (GVN) function description table of contents | GF00.19-P-0999FG |
