Remove/Install Engine With Front Axle Carrier - AR01.10-P-2500MNE

Engine 177 in model 213

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

14.01.2019 Document completely revised.
28.05.2020 Bolt, strut to soundproofing Model 213 BA62.30-P-1004-01H

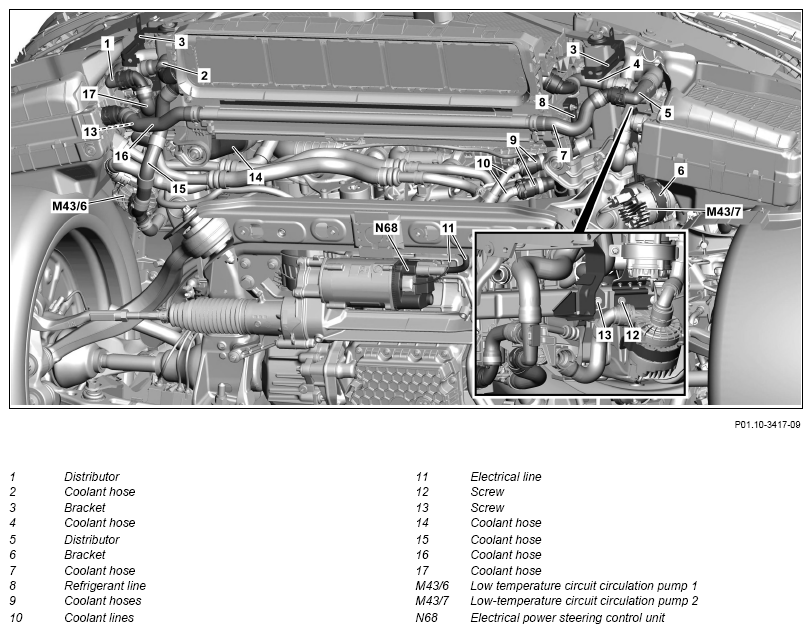

G13743483Courtesy of MERCEDES-BENZ USA

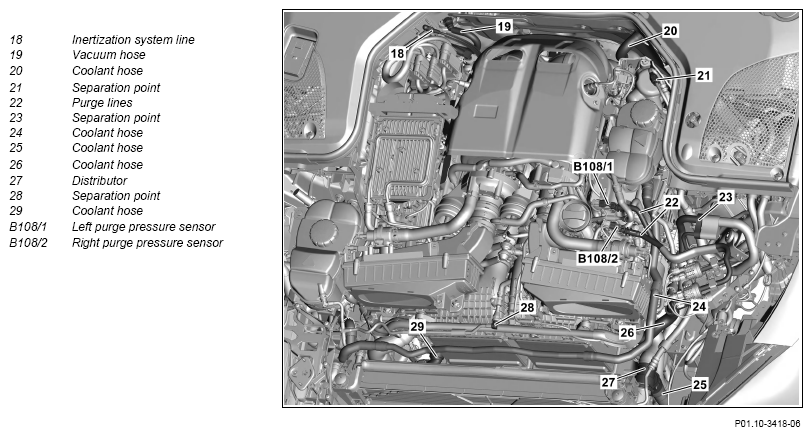

G13743484Courtesy of MERCEDES-BENZ USA

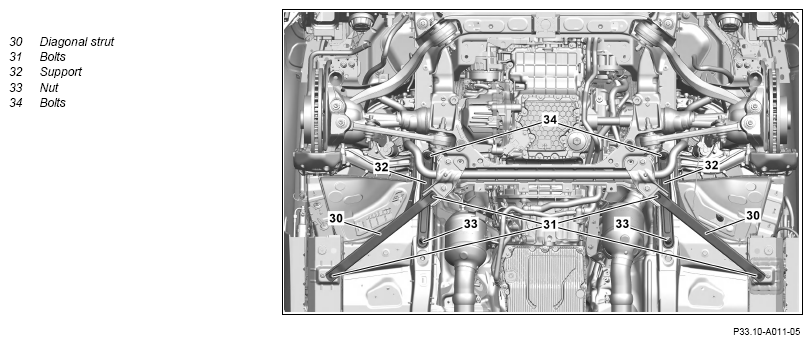

G13743485Courtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
  Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
  Notes on coolant   AH20.00-N-2080-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Notes on AIRmatic Model 213 with engine 177
with code 489 (AIRMATIC)
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AH32.22-P-1000-02LW
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Deactivate easy entry and exit feature. Engine 177 in model 213
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code M005 (Vehicles with 4MATIC/all-wheel drive)

2 Turn wheel and tire assembly of front axle to straight-ahead position and fix steering wheel in place with holding device. NOTES
Do not turn steering wheel when steering coupling is removed.
Otherwise, the clock spring contact will be damaged.

    SPECIAL TOOL Retainer device Fig 3
3 Shift automatic transmission into neutral position.
4 Release parking brake.
5 Vent pressure from air springs using vehicle diagnosis system. Engine 177 in model 213
with code 489 (AIRMATIC)
with code M005 (Vehicles with 4MATIC/all-wheel drive)

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
6 Disconnect ground line from battery.   AR54.10-P-0003LW
7 Secure vehicle on vehicle lift.   AR00.60-P-0100CW
    SPECIAL TOOL Vehicle hoist securing tool Fig 6
8 Discharge air conditioning system. Engine 177 in model 213
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 1U6 (R744 refrigerant)
AR83.30-P-1760LW
9 Remove the wheel and tire assemblies from the front axle.   AR40.10-P-1102A
10 Unscrew the central screws of the front axle shafts.   AR33.30-P-0620LW
11 Drain off coolant of the engine cooling system. INSTALLATION IMPORTANT : Only install lower engine compartment paneling after a leak test. AR20.00-P-1142MNE
12 Drain coolant of low-temperature circuit. INSTALLATION IMPORTANT : Only install upper engine cover after the leak test. AR09.41-P-6834MNE
13 Drain engine oil.
REFER TO MAINTENANCE     AP18.00-P-0101DD
14 Remove propeller shaft.   AR41.10-P-0050LW
15 Release and disconnect electrical connection of left and right RPM sensor.   AR42.30-P-0712LW
16 Unclip the electric lines of the RPM sensors from the spring links and steering knuckles and put the electric lines to the side.   AR42.30-P-0712LW
17 Unclip the electric lines of the wear indicator from the spring link and steering knuckle and put them to the side.   AR42.30-P-0712LW
18 Release and disconnect electrical connections at the suspension struts. Engine 177 in model 213
with code 489 (AIRMATIC)
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR32.25-P-1017LWL
19 Unclip electrical lines of suspension strut from spring control arm and steering knuckle and place electrical lines to one side. Engine 177 in model 213
with code 489 (AIRMATIC)
with code M005 (Vehicles with 4MATIC/all-wheel drive)

20 Remove the brake calipers from the steering knuckles and secure them to the vehicle without creating any tension while the brake hoses remain connected.   AR42.10-P-0070LWA
21 Remove coolant hose (2) from additional cooler.   AR20.20-P-7441-01RQ
22 Remove coolant hose (16) from wheel arch radiator.   AR20.20-P-7441-01RQ
23 Remove coolant hose (17) from distributor (1).   AR20.20-P-7441-01RQ
24 Remove coolant hose (15) from additional cooler.   AR20.20-P-7441-01RQ
25 Remove coolant hose (15) from low-temperature circuit circulation pump 1 (M43/6).   AR20.20-P-7441-01RQ
26 Unclip the distributor (1).
27 Remove coolant hose (14) from cooler.   AR20.20-P-7441-01RQ
28 Remove coolant hoses (9) from coolant lines (10).   AR20.20-P-7441-01RQ
29 Remove coolant hose (4) from additional cooler.   AR20.20-P-7441-01RQ
30 Remove coolant hose (7) from distributor (5).   AR20.20-P-7441-01RQ
31 Unclip the distributor (5).
32 Remove refrigerant line (8) from condenser and seal openings with suitable stop plugs.   AR83.30-P-6540LWE
    TORQUE SPECIFICATION Nut/bolt, refrigerant line to condenser *BA83.30-P-1006-01R
    TORQUE SPECIFICATION Record plug Fig 4
33 Detach oil lines from the oil cooler.   AR18.30-P-1000MNE
34 Remove fan unit.   AR20.40-P-5050MNE
35 Mount protective plate on cooler.
REFER TO SHOP-MADE TOOLS Guard plate for radiator/condenser   WF58.50-P-0110-01A
36 Remove coolant hose (25) from distributor (27).   AR20.20-P-7441-01RQ
37 Remove distributor (27) from radiator.   AR20.20-P-7441-01RQ
38 Remove coolant hose (26) from switchover valve.   AR20.20-P-7441-01RQ
39 Remove coolant hose (29) from charge air cooler.   AR20.20-P-7441-01RQ
40 Remove coolant hose from coolant suction nozzle.   AR20.10-P-2461MNE
41 Remove coolant hose from connection (28).   AR20.20-P-7441-01RQ
42 Remove coolant hose (20) at partition and seal openings with protective covers.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective caps Fig 2
43 Remove low-temperature circuit expansion reservoir.   AR09.41-P-0001MNE
44 Unclip coolant hose (24) and place to one side.
45 Remove fuel pressure via the service connection.   AR07.03-P-1460-01MNE
    TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
    SPECIAL TOOL Pressure hose Fig 7
46 Disconnect fuel feed hose from connection (21).
Note on calculation of tightening torque when using insertion or socket tools with various effective lengths
  AH00.00-P-0015-01CW
    TORQUE SPECIFICATION Union nut, fuel hose to diagnostic socket/fuel line *BA07.03-P-1006-01H
    SPECIAL TOOL Box wrench bit Fig 5
47 Disconnect refrigerant lines from connection (23) and close openings with suitable stop plugs. TORQUE SPECIFICATION Nut/bolt, connecting point for refrigerant line *BA83.30-P-1004-01R
    SPECIAL TOOL Record plug Fig 4
48 Remove purge lines (22) from left purging pressure sensor (B108/1) and right purging pressure sensor (B108/2) and put to side.
49 Disconnect inerting system line (18) from bulkhead and put to side.   AR86.10-P-0119LW
50 Remove vacuum hose (19) at partition and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Fig 4
51 Insert crossmember via radiator and finger-tighten with two screws.
52 Secure radiator unit against falling.
53 Remove engine wiring harness for removal of engine and place to one side.   AR15.18-P-1000-05MNE
    TORQUE SPECIFICATION Nut, positive line to busbar on firewall *BA54.18-P-1001-02C
    TORQUE SPECIFICATION Screw/bolt, heat shield to oil pan *BA27.10-P-1009-04H
    TORQUE SPECIFICATION Screw/bolt/nut, ground line to transmission/underfloor *BA00.19-P-1038-02A
54 Release and disconnect electrical connectors of electric lines (11) at the electric power steering control unit (N68).   AR46.20-P-0600LW
55 Remove electric lines (11) from the rack-and-pinion steering and front-axle carrier and put to side.
56 Remove steering coupling from steering shaft. Engine 177 in model 213
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 700 (Technology Local Content China)
AR46.10-P-8000-01LW
    Engine 177 in model 213
with code 700 (Technology Local Content China)
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR46.10-P-8000-01LWA
    TORQUE SPECIFICATION Engine 177 in model 213
with code 700 (Technology Local Content China)
with code M005 (Vehicles with 4MATIC/all-wheel drive) Self-locking bolt, steering coupling to lower steering shaft
*BA46.10-P-1003-01N
    SPECIAL TOOL Engine 177 in model 213
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 700 (Technology Local Content China)
Engine mount wrench set
Fig 1
57 Remove screws (13) and the brackets of the wheel arch radiator left and right of the integral carrier. TORQUE SPECIFICATION M6 X 1 *BA00.10-P-1002-04A
58 Remove low-temperature circuit circulation pump 2 (M43/7) from the bracket (6) and put to side with the lines connected.   AR09.41-P-6927MNE
59 Remove screw (12) and put to side the bracket (6) of low-temperature circuit circulation pump 2 (M43/7). TORQUE SPECIFICATION M6 X 1 *BA00.10-P-1002-04A
60 Remove brackets (3). TORQUE SPECIFICATION Bolt, strut to soundproofing *BA62.30-P-1004-01H
61 Remove steering knuckles from top transverse control arms.   AR33.25-P-0400LW
62 Detach suspension struts from spring links. Engine 177 in model 213
with code 489 (AIRMATIC)
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR32.25-P-1017LWL
    Engine 177 in model 213
with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 489 (AIRMATIC)
AR32.25-P-1017LW
63 Unscrew screws (31) and remove left and right diagonal strut (30). TORQUE SPECIFICATION Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console *BA61.10-P-1006-01L
    TORQUE SPECIFICATION Bolt, front diagonal strut to longitudinal member *BA61.10-P-1007-01L
64 Support front axle carrier with lifting platform and secure whole engine transmission unit against slipping and falling down with a tensioning strap.
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform   WS01.00-P-0091A
65 Remove rear engine crossmember from frame floor assembly.   AR22.10-P-4360MNE
66 Unscrew nut (33) of right and left support (32). TORQUE SPECIFICATION Mount, support (strut) *BA33.10-P-1002-01Q
67 Unscrew screws (34) and remove left and right support (32). TORQUE SPECIFICATION Bolt, front axle carrier to longitudinal member *BA33.10-P-1001-01Q
68 Lower engine-transmission unit with front axle carrier. NOTES
Ensure that engine does not touch any body panels or components and that no lines are pinched.
Otherwise damage will occur.
IMPORTANT Aid of helper required.

69 Install in the reverse order.
70 Check oil level of the engine and correct.
REFER TO MAINTENANCE     AP18.00-P-1812DKI
71 Perform wheel alignment measurement.   AR40.20-P-0200LW
72 Read out and delete fault memory.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
73 Carry out engine test run and check engine for proper operation and leak tightness.
74 Install lower engine compartment lining.   AR61.20-P-1105LWE
75 Install upper engine cover.   AR01.10-P-2405MNE
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 X 1 Nm 9 13
GROUND POINTS

Number Designation Model 213
BA00.19-P-1038-02A Screw/bolt/nut, ground line to transmission/underfloor M8 Nm 20
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1006-01H Union nut, fuel hose to diagnostic socket/fuel line Nm 24
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0
BA27.10-P-1009-04H Screw/bolt, heat shield to oil pan Nm 9
FRONT AXLE CARRIER

Number Designation Model 213
BA33.10-P-1001-01Q Bolt, front axle carrier to longitudinal member Nm 180
FRONT AXLE CARRIER

Number Designation Model 213
BA33.10-P-1002-01Q Mount, support (strut) Nm 110
STEERING SHAFT

Number Designation Model 213
BA46.10-P-1003-01N Self-locking bolt, steering coupling to lower steering shaft Stage 1 Nm 25
Stage 2 ∠° 90
WIRING HARNESS

Number Designation Model 213
BA54.18-P-1001-02C Nut, positive line to busbar on firewall M6 Nm 8
M8 Nm 16
FRAME FLOOR ASSEMBLY

Number Designation Model 213
BA61.10-P-1006-01L Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console Nm 50
FRAME FLOOR ASSEMBLY

Number Designation Model 213
BA61.10-P-1007-01L Bolt, front diagonal strut to longitudinal member Nm 50
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 213
BA62.30-P-1004-01H Bolt, strut to soundproofing M8 Nm 20
AIR CONDITIONING

Number Designation Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1004-01R Nut/bolt, connecting point for refrigerant line Nm 12
AIR CONDITIONING

Number Designation Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1006-01R Nut/bolt, refrigerant line to condenser Nm 12
Fig 1: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G12816349Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Protective Caps (001 589 00 91 00)
G12079434Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G11065549Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Box Wrench Bit (000 589 69 03 00)
G13743490Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
G12618350Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pressure Hose (119 589 04 63 00)
G12078803Courtesy of MERCEDES-BENZ USA
