Reduce Fuel Pressure Through Service Valve - AR07.03-P-1460-01MNE
Engine 177 in model 213, 290
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA07.03-P-1005-01H | Dust protection cap to service connection | Nm | 1 |

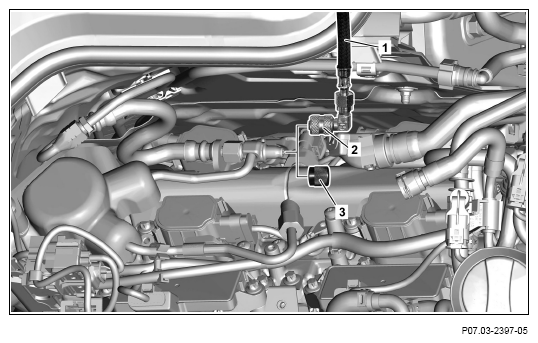

- Unscrew cap (3) from diagnostic socket of fuel distributor.
- Place hose end of
pressure hose (1) in a suitable container.
- Tighten union nut (2) of
At this point, the diagnostic socket is opened and the fuel pressure in the fuel distributor is reduced. Fuel escapes from the end of the hose.
- Unscrew union nut (2) of
- Tighten new cap (3) on diagnostic socket of fuel distributor
.
