Remove/Install Engine Oil Cooler - AR18.30-P-1000MNE
Engine 177 in model 213
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNE | |
| 2 | Remove front right complete wheel | AR40.10-P-1102A | |
| 3 | Remove front bumper | AR88.20-P-2000LWE | |

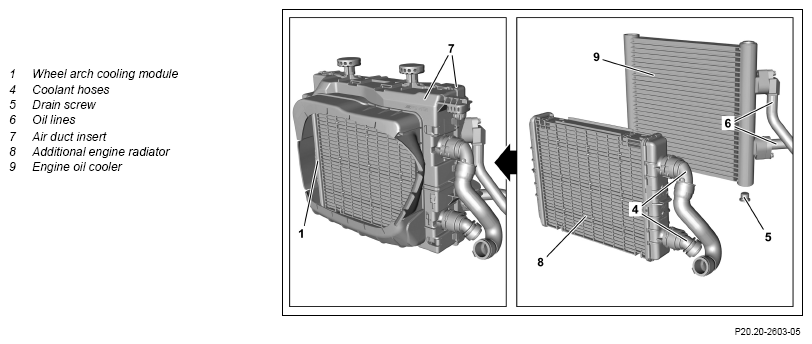

| 4 | Remove coolant hoses (4) at additional engine radiator (8) | AR20.20-P-7441-01RQ | |
| 5 | Remove drain screw (5) from engine oil cooler (9) and collect engine oil in suitable container | ||
| *BA18.30-P-1011-01N | |||
| 6 | Remove oil lines (6) from engine oil cooler (9) | ||
| *BA18.30-P-1006-01N | |||

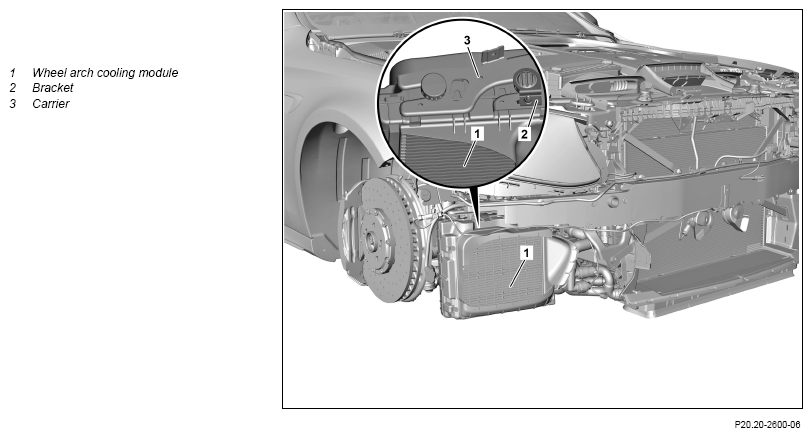

| 7 | Unscrew nut and remove bracket (2) | *BA00.10-P-1002-04A | |
| 8 | Remove wheel arch cooling module (1) at the side of the carrier (3) | ||
| 9 | Unclip air duct inserts (7) at wheel arch cooling module (1) and remove engine oil cooler (9) | ||
| 10 | Install in the reverse order | ||
| 11 | Check oil level of engine and correct | ||
| AP18.00-P-1812DKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform engine test run and check for leaktightness of wheel arch cooling module (1) with engine running | ||
| 13 | Install bottom front engine compartment lining | AR61.20-P-1105LWE |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
OIL COOLING
| Number | Designation | Engine 177 except in model 463 | |
|---|---|---|---|
| BA18.30-P-1006-01N | Screw/bolt, oil line to front-end/wheel arch oil cooler | Nm | 8 |
OIL COOLING
| Number | Designation | Engine 177 except in model 463 | |
|---|---|---|---|
| BA18.30-P-1011-01N | Drain screw to wheel arch oil cooler | Nm | 25 |
