Remove/Install Engine Cover - AR01.10-P-2405MNE
Engine 177 in model 213
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Remove/install | |||

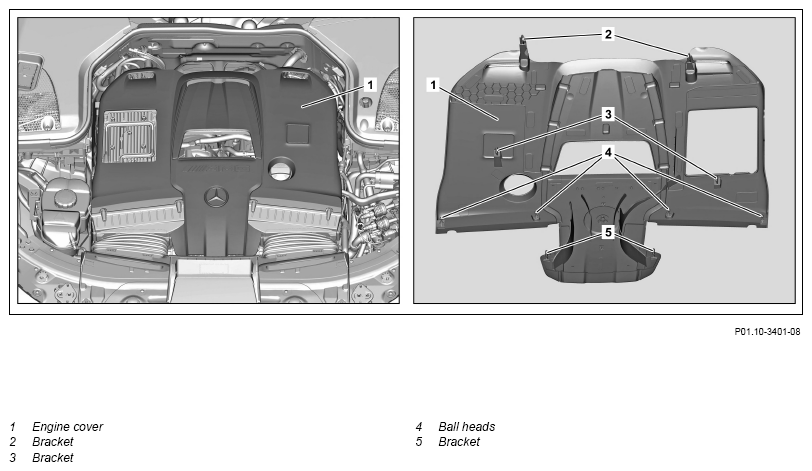

| 1 | Unfasten bracket (5) | ||
| 2 | Unfasten ball heads (4) from the elastomer bearings | ||
| 3 | Unfasten the bracket (3, 2) and remove engine cover (1) upwards | ||
| Anti-friction paste, rubber parts 2.5 kg, DBL 6867.00 | *BR00.45-Z-1002-06A | ||
| 4 | Check elastomer bearings for damage | If damage occurs to the elastomer bearing ↓ Replace elastomer bearing. |
|
| 5 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Anti-friction paste, rubber parts 2.5 kg, DBL 6867.00 | A 000 989 01 60 |
