Remove/Install Fan Unit - AR20.40-P-5050MNE

Engine 177 in Model 213

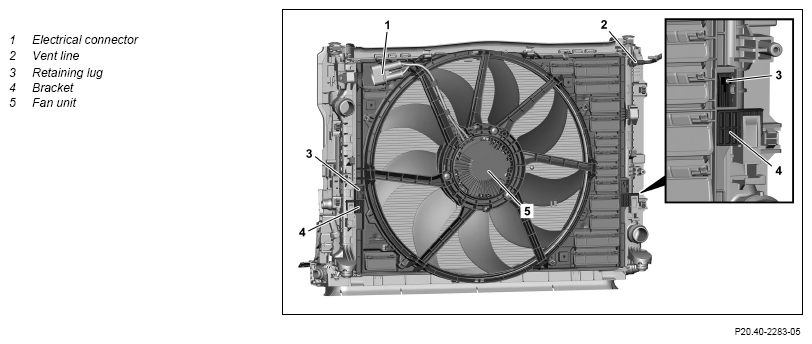

Fig 1: Fan Unit Components Location - Engine 177 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min.2 m)
2	Remove upper engine cover		AR01.10-P-2405MNE
3	Remove left and right engine air intake ducts		AR09.10-P-1151MNE
3	Remove left and right engine air intake ducts		AR09.10-P-1152MNE
4	Remove upper radiator crossmember		AR62.30-P-2300LW
		Bolt, lock striker to cross member/front-module carrier	*BA62.30-P-1008-01H
		Screw, front module carrier/cross strut to body/angle bracket for front module carrier	*BA62.30-P-1007-01H
		M6x1	*BA00.10-P-1002-04A
		M8x1	*BA00.10-P-1004-04A
5	Release and disconnect electrical connection (1)
6	Unclip coolant line from fan unit (5)
7	Detach bleed line (2) from radiator
8	Unhook fan unit (5) from radiator frame
9	Remove center and front lower engine compartment paneling		AR61.20-P-1105LWE
10	Press retaining lugs (3) backwards in direction of engine compartment and remove brackets (4)
11	Remove fan unit (5) upwards
12	Install in the reverse order
13	Check and correct coolant level	Coolant mixing ratio	*BF20.00-P-1001-04A
14	Calibrate Distance Pilot DISTRONIC controller unit	Engine 177 in Model 213 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO))
			AD00.00-P-2000-04B

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6x1	Nm	9	13

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1004-04A	M8x1	Nm	23	33

CROSS MEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 213
BA62.30-P-1007-01H	Screw, front module carrier/cross strut to body/angle bracket for front module carrier	Nm	11

CROSS MEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 213
BA62.30-P-1008-01H	Bolt, lock striker to cross member/front-module carrier	Nm	10

COOLANT MIXING RATIO

Number	Designation				All engines, except engine 178 in model 190.381
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	Up to -25°C	%	-
			Up to -37°C	%	50/50
			As of -38°C	%	55/45
			Overview and specifications		BB00.40-P-0310-01A
			References to Specifications		BB00.40-P-0310ZZ
