Drain/Pour In Coolant - AR20.00-P-1142MNE
Engine 177 in Model 213
MODIFICATION NOTES
| 21.07.2017 | Filling capacity for coolant | Engine 177 in Model 213.088/288 | BF20.00-P-1001-02LA |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Slowly open cap of engine cooling system coolant expansion reservoir and remove | ||
| 2 | Remove bottom engine compartment paneling at front | AR61.20-P-1105LWE | |
| Drain off | |||

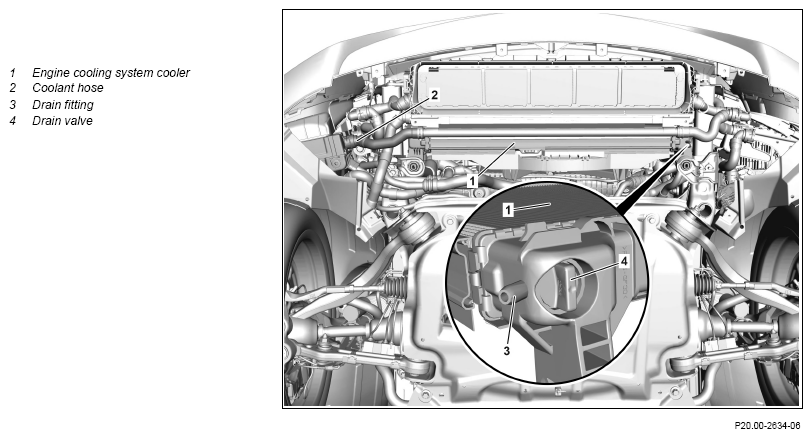

| 3 | Slide suitable drain hose onto drain fitting (3) | ||
| 4 | Open drain valve (4) on engine cooling system cooler (1) and drain off coolant into a suitable container | Only open the drain valve (4) until coolant flows out. Otherwise damage will occur on drain valve (4) and on engine cooling system cooler (1). |
|
| 5 | Close drain valve (4) | ||
| 6 | Remove the coolant hose (2) on engine oil cooler in the right wheel arch and drain off coolant into a suitable container | AR20.20-P-7441-01RQ | |
| 7 | Reattach the coolant hose (2) to the engine oil cooler | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 8 | Pour in clean coolant and bleed the engine cooling system | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02LA | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||
| Check | |||
| 9 | Check engine cooling system for leaktightness | AR20.00-P-1011OLC | |
| Install | |||
| 10 | Install bottom front engine compartment lining | AR61.20-P-1105LWE |
COOLING SYSTEM
| Number | Designation | Engine 177 in Model 213.088/288 | Engine 177 in Model 213.089/289 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02LA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈13, 2 | ≈15, 2 |
| Low-temperature circuit | Liter | ≈6, 4 | ≈6, 4 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
