Remove/Install Inertization System Line In Engine Compartment - AR86.10-P-0119LW

Model 213 with engine 177

Courtesy of MERCEDES-BENZ USA

	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A

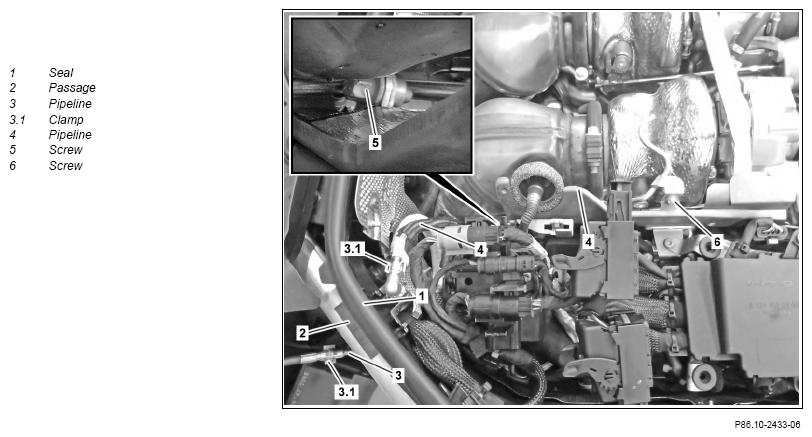

	Remove/install
1	Remove heat shield from exhaust gas turbocharger.		AR09.40-P-6044MNE
2	Open clamps (3.1) for piping (3).	Replace clamps (3.1) for piping (3).
3	Take off seal (1).
4	Remove piping (3) together with the passage (2).
5	Remove piping (3) from passage (2).
6	Remove screw (5).	Pipe for inerting to engine	*BA86.10-P-1002-03E
7	Remove screw (6) and remove piping (4).	Pipe for inerting to engine	*BA86.10-P-1002-03E
	Check
8	Check piping (1) for damage and plugging.	If problems occur, ↓ Replace pipe (1).
9	Install in the reverse order.

INERTING

Number	Designation					Model 213
BA86.10-P-1002-03E	Pipe for inerting to engine	M6	Screw		Nm	8
			Nut	Stage 1	Nm	8
				Stage 2	∠°	30
