Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

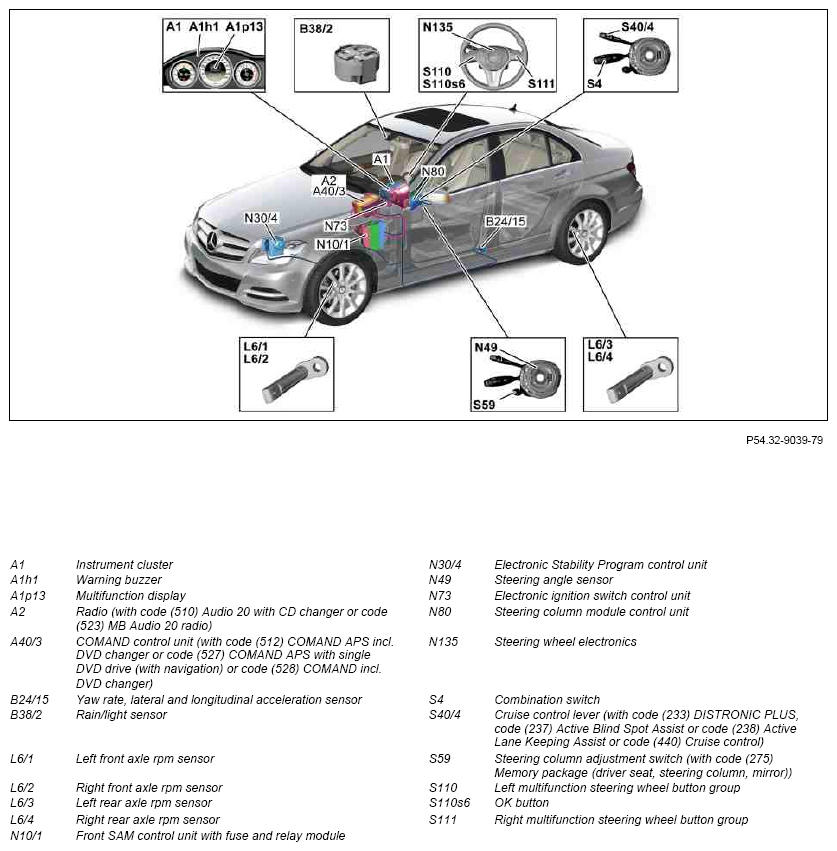

Fig 1: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983753

Attention assistance system (model 204.0/2 as of 1.3.11 with code (442) Comfort multifunction steering wheel, model 204.3 with code (442) Comfort multifunction steering wheel or model 204.9 as of 1.6.12 with code (442) Comfort multifunction steering wheel); illustration shows model 204.0

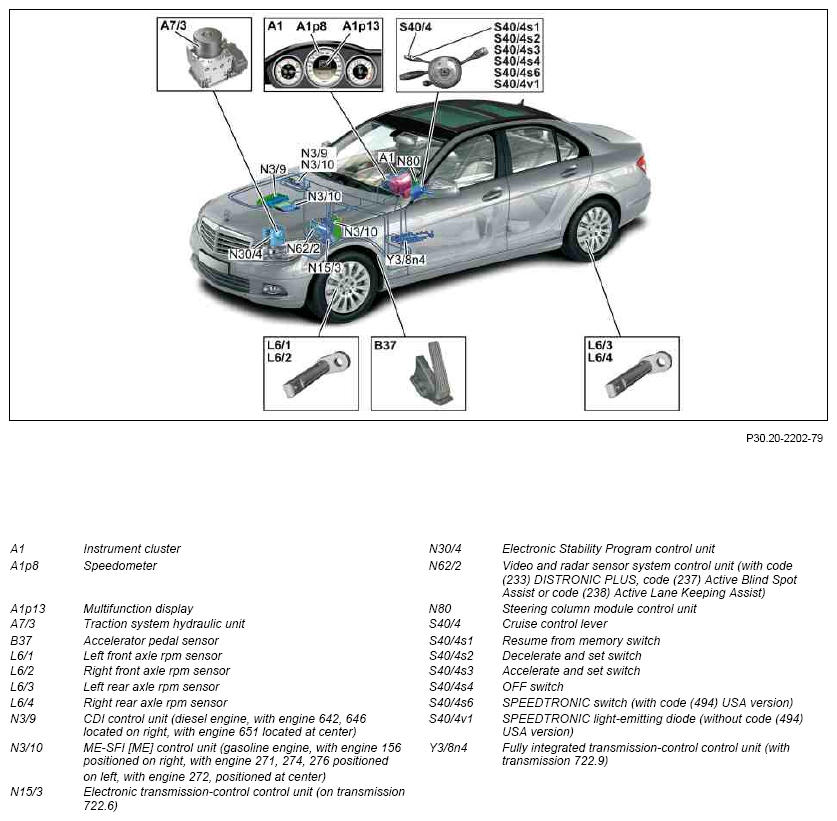

Fig 2: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983754

Cruise control (CC) (with code (440) Cruise control or code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or code (238) Active Lane Keeping Assist); illustration shows model 204.0

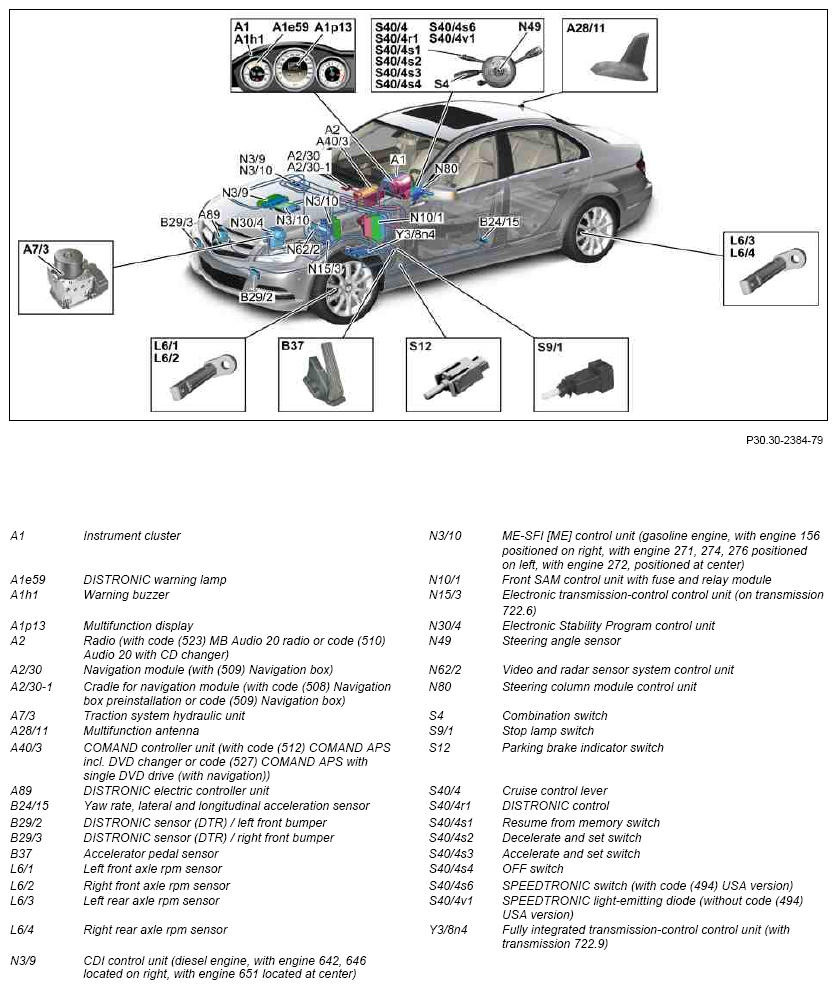

Fig 3: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983755

DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE brake (with code (233) DISTRONIC PLUS); illustration shows model 204.0

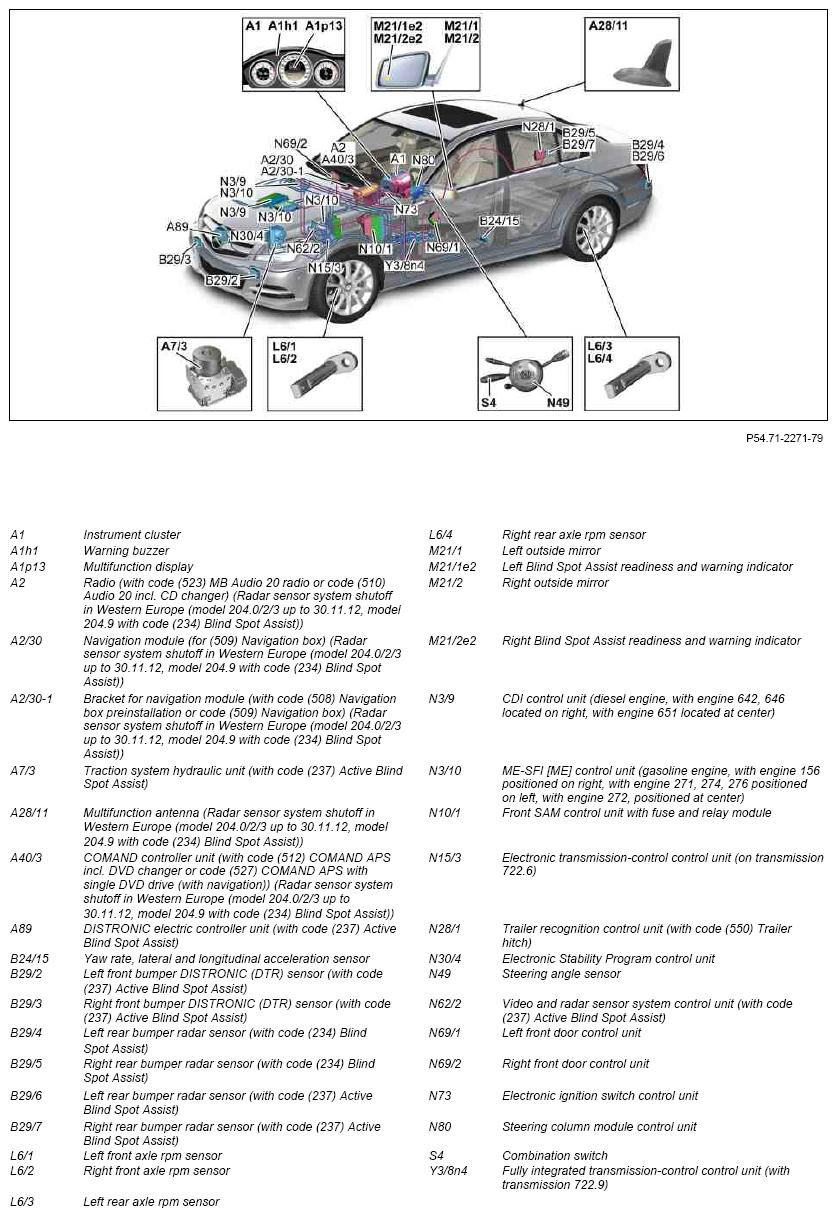

Fig 4: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983756

Blind Spot Assist (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist); illustration shows model 204.0

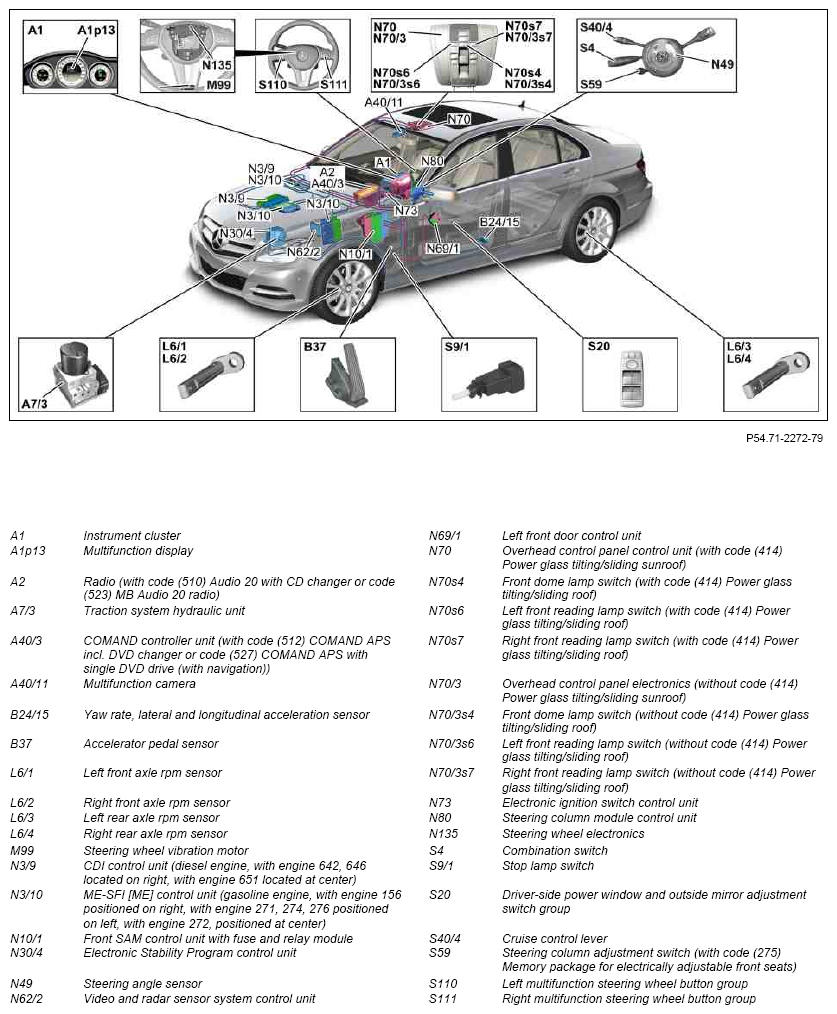

Fig 5: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983757

Active Lane Keeping Assist (with code (238) Active Lane Keeping Assist); illustration shows model 204.0

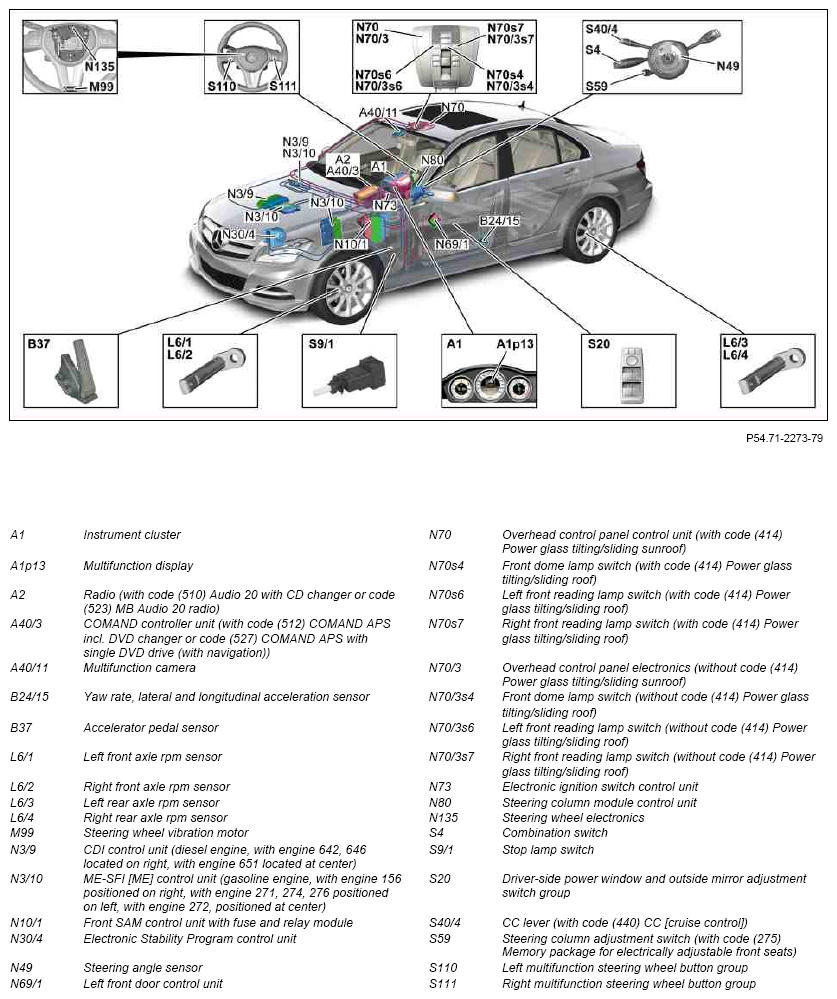

Fig 6: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983758

Lane Keeping Assist (with code (476) Lane Keeping Assist); illustration shows model 204.0

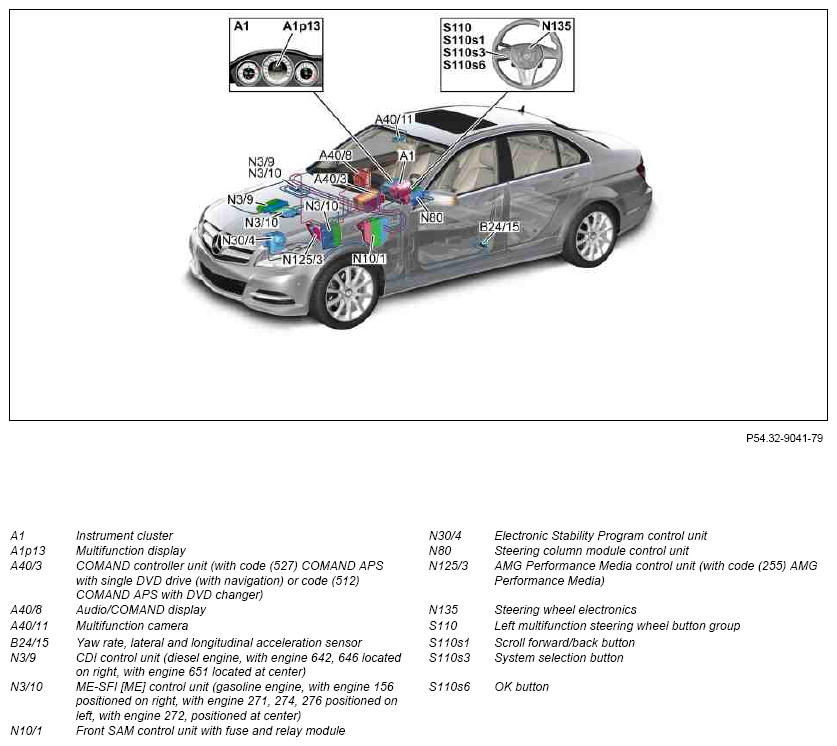

Fig 7: Overview Of Driver Assistance System Components - Illustration Shows Model 204.0
G09983759

Speed Limit Assist (model 204.0/2/3 with code (513) Speed Limit Assist); illustration shows model 204.0

  Component description for instrument cluster A1 GF54.30-P-6000CE
  Component description for the radio MODEL 204.0/2 as of model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEA
MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.9 up to model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 up to model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEB
  Cradle for navigation module, component description MODEL 204.0/2 as of model year 2012 with CODE 508 (Navigation box preinstallation) MODEL 204.0/2 as of model year 2012 with CODE 509 (Navigation box) MODEL 204.3 with CODE 508 (Navigation box preinstallation) MODEL 204.3 with CODE 509 (Navigation box) MODEL 204.9 as of model year 2013 with CODE 508 (Navigation box preinstallation) MODEL 204.9 as of model year 2013 with CODE 509 (Navigation box) A2/30-1 GF82.85-P-3137CE
  Component description for COMAND controller unit MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 512 (COMAND APS with DVD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) MODEL 204.0 as of model year 2009 up to model year 2012 with CODE 528 (COMAND with DVD changer) MODEL 204.9 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 204.9 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) MODEL 204.9 up to model year 2013 with CODE 528 (COMAND with DVD changer)
A40/3		 GF82.85-P-3136CE
MODEL 204.0/2 as of model year 2012 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0/2 as of model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) MODEL 204.3 with CODE 512 (COMAND APS with DVD changer) MODEL 204.3 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer)
A40/3		 GF82.85-P-3136CEA
MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.3 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation))
A40/3		 GF82.85-P-3136CEJ
  Component description for Audio/COMAND display MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 510 (Audio 20 with CD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 512 (COMAND APS with DVD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 525 (MB Audio 50 APS radio) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0/2 as of model year 2012MODEL 204.0 as of model year 2009 up to model year 2012 with CODE 528 (COMAND with DVD changer) MODEL 204.3MODEL 204.9
A40/8		 GF54.30-P-6150CE
  Component description for multifunction camera MODEL 204.0/2 as of model year 2012 with CODE 238 (Active lane keeping Assist) MODEL 204.0/2 as of model year 2012 with CODE 476 (Lane Keeping Assist) MODEL 204.0/2 as of model year 2012 with CODE 513 (Speed Limit Assist) MODEL 204.3 with CODE 238 (Active lane keeping Assist) MODEL 204.3 with CODE 476 (Lane Keeping Assist) MODEL 204.3 with CODE 513 (Speed Limit Assist) MODEL 204.9 as of model year 2013 with CODE 238 (Active lane keeping Assist) MODEL 204.9 as of model year 2013 with CODE 476 (Lane Keeping Assist) MODEL 204.9 as of model year 2013 with CODE 513 (Speed Limit Assist)
A40/11		 GF54.21-P-3300CE
  Component description for DISTRONIC electric controller unit MODEL 204.0/2 as of model year 2012 with CODE 233 (DISTRONIC PLUS) MODEL 204.0/2 as of model year 2012 with CODE 237 (Active Blind Spot Assist) MODEL 204.0/2 as of model year 2012 with CODE 238 (Active lane keeping Assist) MODEL 204.3 with CODE 233 (DISTRONIC PLUS) MODEL 204.3 with CODE 237 (Active Blind Spot Assist) MODEL 204.3 with CODE 238 (Active lane keeping Assist) MODEL 204.9 as of model year 2013 with CODE 233 (DISTRONIC PLUS) MODEL 204.9 as of model year 2013 with CODE 237 (Active Blind Spot Assist) MODEL 204.9 as of model year 2013 with CODE 238 (Active lane keeping Assist)
A89		 GF30.30-P-3213CE
  Component description for yaw rate sensor for lateral and longitudinal acceleration B24/15 GF42.45-P-4810CE
  Component description for bumper radar sensors MODEL 204.0/2 as of model year 2012 with CODE 233 (DISTRONIC PLUS) MODEL 204.0/2 as of model year 2012 with CODE 237 (Active Blind Spot Assist) MODEL 204.3 with CODE 233 (DISTRONIC PLUS) MODEL 204.3 with CODE 237 (Active Blind Spot Assist) MODEL 204.9 as of model year 2013 with CODE 233 (DISTRONIC PLUS) MODEL 204.9 as of model year 2013 with CODE 237 (Active Blind Spot Assist)
B29/2, B29/3, B29/6, B29/7		 GF30.30-P-3302CE
  Component description for intelligent radar sensor control unit MODEL 204.0/2 as of model year 2012 with CODE 234 (Blind Spot Assist) MODEL 204.3 with CODE 234 (Blind Spot Assist) MODEL 204.9 as of model year 2013 with CODE 234 (Blind Spot Assist)
B29/4, B29/5		 GF30.30-P-3305CE
  Component description for CDI control unit MODEL 204.0/2 with ENGINE 642.8 as of model year 2009MODEL 204.9 with ENGINE 642.8
N3/9		 GF07.16-P-6000OG
MODEL 204.0/2 with ENGINE 642.9 as of model year 2009MODEL 204.9 with ENGINE 642.9
N3/9		 GF07.16-P-6000OH
MODEL 204.0/2 with ENGINE 646.8 as of model year 2009
N3/9		 GF07.16-P-6000OL
MODEL 204.0/2 with ENGINE 651.9 as of model year 2009MODEL 204.3 with ENGINE 651.9MODEL 204.9 with ENGINE 651.9 up to model year 2013
N3/9		 GF07.16-P-6000OM
MODEL 204.9 with ENGINE 651.9 as of model year 2013
N3/9		 GF07.16-P-6000OGB
  Component description for ME-SFI (ME) control unit MODEL 204.077/277 with ENGINE 156.985 as of model year 2009MODEL 204.377 with ENGINE 156.985
N3/10		 GF07.61-P-6000MAW
MODEL 204.0/2 with ENGINE 271.820 as of model year 2009MODEL 204.0/2 with ENGINE 271.860 as of model year 2009MODEL 204.3 with ENGINE 271.820MODEL 204.3 with ENGINE 271.860
N3/10		 GF07.61-P-6000MG
MODEL 204.041/241 with ENGINE 271.950 as of model year 2009MODEL 204.044/045/245 with ENGINE 271.910 as of model year 2009MODEL 204.046/246 with ENGINE 271.952 as of model year 2009
N3/10		 GF07.61-P-6000MFW
MODEL 204.0 (except 204.065) with ENGINE 272.9 (except 272.982) as of model year 2009MODEL 204.2 with ENGINE 272.9 as of model year 2009MODEL 204.9 with ENGINE 272.9
N3/10		 GF07.61-P-6000MI
MODEL 204.065 with ENGINE 272.982 as of model year 2009
N3/10		 GF07.61-P-6000MIE
MODEL 204.0/2 with ENGINE 274.9 as of model year 2009MODEL 204.3 with ENGINE 274.9MODEL 204.9 with ENGINE 274.9
N3/10		 GF07.61-P-6000MR
MODEL 204.0/2 with ENGINE 276.9 as of model year 2009MODEL 204.3 with ENGINE 276.9MODEL 204.9 with ENGINE 276.9
N3/10		 GF07.61-P-6000MM
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070CE
  Component description for electronic transmission control control unit MODEL 204.0 (except 204.049), 204.2 (except 204.249) with TRANSMISSION 722.696 as of model year 2009 up to model year 2012MODEL 204.0/2 with TRANSMISSION 722.618/640/646/694/695/699 as of model year 2009 up to model year 2012
N15/3		 GF27.60-P-5164ACW
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119CE
  Component description for video and radar sensor system control unit MODEL 204.0/2 as of model year 2012 with CODE 233 (DISTRONIC PLUS) MODEL 204.0/2 as of model year 2012 with CODE 237 (Active Blind Spot Assist) MODEL 204.0/2 as of model year 2012 with CODE 238 (Active lane keeping Assist) MODEL 204.3 with CODE 233 (DISTRONIC PLUS) MODEL 204.3 with CODE 237 (Active Blind Spot Assist) MODEL 204.3 with CODE 238 (Active lane keeping Assist) MODEL 204.9 as of model year 2013 with CODE 233 (DISTRONIC PLUS) MODEL 204.9 as of model year 2013 with CODE 237 (Active Blind Spot Assist) MODEL 204.9 as of model year 2013 with CODE 238 (Active lane keeping Assist)
N62/2		 GF30.30-P-3304CE
  Component description for left front door control unit N69/1 GF72.29-P-6001CE
  Component description for right front door control unit N69/2 GF72.29-P-6009CE
  Component description for overhead control panel control unit MODEL 204.0/2 as of model year 2009 with CODE 414 (Power glass tilting/sliding roof) MODEL 204.3 with CODE 414 (Power glass tilting/sliding roof)
N70		 GF82.20-P-5216CE
  Component description for electronic overhead control panel MODEL 204.0/2 as of model year 2009 without CODE 414 (Power glass tilting/sliding roof) MODEL 204.3 without CODE 414 (Power glass tilting/sliding roof) MODEL 204.9
N70/3		 GF82.20-P-5217CE
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001CE
  Component description for steering column tube module control unit N80 GF54.21-P-6051CE
  AMG performance media control unit, component description MODEL 204.0/2 as of model year 2009 with CODE 255 (AMG Performance Media) MODEL 204.3 with CODE 255 (AMG Performance Media)
N125/3		 GF82.60-P-5010CE
  Component description for fully integrated transmission control unit MODEL 204.0/2 with TRANSMISSION 722.9 (except 722.930) as of model year 2009MODEL 204.3 with TRANSMISSION 722.9 (except 722.930) MODEL 204.9 with TRANSMISSION 722.9
Y3/8n4		 GF27.60-P-5165AHW
MODEL 204.0/2 with TRANSMISSION 722.930 as of model year 2009MODEL 204.3 with TRANSMISSION 722.930
Y3/8n4		 GF27.60-P-5165AHV
  Table of contents for function description of driver assistance systems   GF54.00-P-0998CE
