Left front door control unit, component description - GF72.29-P-6001CE

MODEL 204 as of model year 2009/YoM 08

Shown on model 204.0 up to 28.2.11

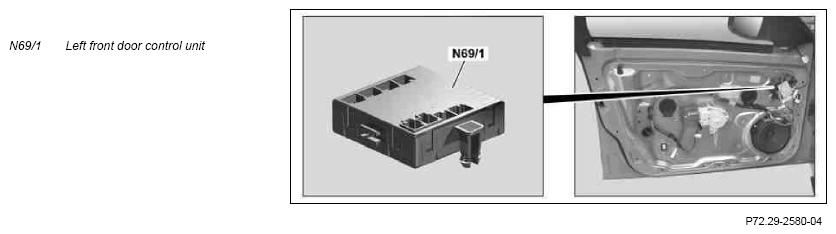

Location

The left front door control unit is located on the door module behind the door lining.

Task

The left front door control unit has the following tasks:

• Reading in of sensors, pickups and signals
• Evaluation of input factors
• Controlling functions
• Actuation of components

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

• Direct line
• Left door LIN (LIN B5)
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via a direct line:

• Infrared remote control receiver, driver-side front door (A26/1)
• Left front door rotary tumbler switch (A85s1)
• Hall sensor for left front door power window motor (M10/3)
• In addition with code (275) Memory function (driver seat, steering column, outside mirrors):
  • Vertical inclination adjustment potentiometer (M21/1r2)
  • Horizontal inclination adjustment potentiometer (M21/1r3)
• Trunk lid unlock button (S15/1) (on model 204.0/3)
• Driver trunk lid/liftgate control button (S15/3) (model 204.2/9 with code (890) EASY-PACK liftgate)
• Left front door central locking inside door handle switch (S85/5) with following components:
  • Open central locking switch (S85/5s1)
  • Close central locking switch (S85/5s2)

Left door LIN

The signals for the following components are read in via the left door LIN:

• Driver-side power window and outside mirror adjustment switch group (S20):
  • Left front power window switch (S20s1)
  • Right front power window switch (S20s2)
  • Left rear power window switch (S20s3) (on model 204.0/2/9)
  • Right rear power window switch (S20s4) (on model 204.0/2/9)
  • Rear side window child safety lock switch (S20s5) (on model 204.0/2/9)
  • Electric outside mirror fold-in/out motor (S20s9) (with code (249) Automatic dimming outside and inside mirror including folding outside mirror)
  • Left outside mirror adjustment switch (S20s10)
  • Right outside mirror adjustment switch (S20s11)
  • Outside mirror adjustment switch (S20s12)
• Left front seat adjustment switch group (S22) (with code (275) Memory function (driver seat, steering column, outside mirror)):
  • Left front head restraint adjustment switch (S22s1)
  • Left front seat inclination adjustment switch (S22s2)
  • Left front seat fore/aft adjustment switch (S22s3)
  • Left front seat height adjustment switch (S22s4)
  • Left front seat backrest adjustment switch (S22s5)
  • Left front memory function switch (S22s6)
  • Left front memory 1 switch (S22s7)
  • Left front memory 2 switch (S22s8)
  • Left front memory 3 switch (S22s9)

Interior CAN

The signals are read in by the left front door control unit via the interior CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Controlling functions

The left front door control unit controls the following functions:

• Manual and automatic opening and closing of side windows
• Automatic closing of side windows with PRE-SAFE (with code (299) PRE-SAFE)
• Convenience feature for power windows
• Excess force limiter for manual and automatic closing of side windows
• Automatic opening of rear side windows after airbag deployment
• Adjusting outside mirror

Actuation of components

Components are actuated via the following lines:

• Direct line
• Left door LIN

Direct line

The following components are actuated via a direct line:

• Left front door central locking motor (A85m1)
• Additional door lock actuator motor for left front door (A85m4) (with code (885) Increased theft protection)
• In addition with code (954) Avantgarde or code (955) Elegance:
  • Left front door exit and warning lamp (E17/3)
  • Left front door handle illumination (E17/11)
• Left front door ambiance illumination (E17/43) (Model 204.0/2 as of 1.3.11 with code (954) Avantgarde or code (955) Elegance or model 204.3 with code (876) Interior lights package)
• Left front door power window motor
• Left outside mirror (M21/1) with following components:
  • Left outside mirror ambient lamp (M21/1e1) (Model 204.0/2/3 as of 1.3.11, model 204.9 as of 1.6.12)
  • Readiness/warning indicator for left Blind Spot Assist (M21/1e2) (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
  • Mirror dimming (M21/1h1) (with code (249) Automatically dimming interior rearview mirror and outside mirror, including folding outside mirror)
  • Vertical inclination adjustment actuator motor (M21/1m1)
  • Horizontal inclination adjustment actuator motor (M21/1m2)
  • Electric outside mirror fold-in/out motor (M21/1m3) (with code (249) Automatic dimming outside mirror including folding outside mirror)
  • Mirror heater (M21/1r1)
  • Left outside mirror turn signal lamp (E6/5)

Left door LIN

The left front door control unit supplies the connected control elements with circuit 58 d (symbol illumination) via left door LIN:

• Trunk release button or Driver trunk lid/liftgate control button
• Left front door central locking interior switch
• Driver-side power window and outside mirror adjustment switch group
• Left front seat adjustment switch group

Wiring diagram for left front door control unit (DCU)

PE72.29-P-2101-97FAA
