Component description for the CDI control unit - GF07.16-P-6000OH
ENGINE 642.9 in MODEL 204.0 as of model year 09/AEJ 08
ENGINE 642.9 in MODEL 204.2 as of model year 09/AEJ 08
ENGINE 642.9 in MODEL 204.9
Shown on model 204.0
Location

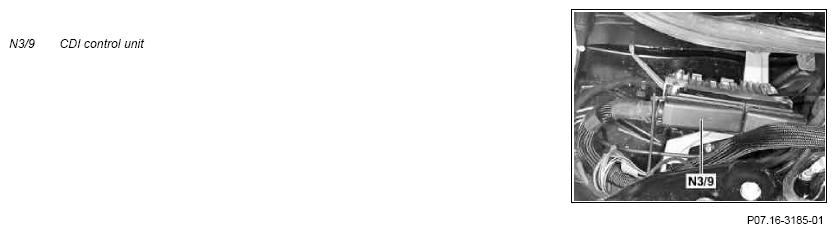

The CDI control unit is built into the engine compartment at the right in front of the windshield.
For model 204.9 the CDI control unit is located behind the fender liner at the front right.
Task
The CDI control unit has the followings tasks:
- Controlling of the common rail diesel injection (CDI) function
- Input and output signals
Control of the CDI function
The CDI control unit actuates the CDI functions:
- Fuel supply
- Glow functions
- Injection control
- Exhaust gas cleaning
- Boost pressure control
- Refrigerant compressor cutout (A9)
- Shutoff control
The CDI control unit is equipped with a fault memory, which can be read out via STAR DIAGNOSIS.
The CDI control unit has an internal atmospheric pressure sensor.
Input and output signals
Signal inputs and outputs
Direct input signals
- Circuit 30
- Circuit 31
- Circuit 87
- Oil temperature sensor (B1)
- Left hot film MAF sensor B2/6
- Left intake air temperature sensor (B2/6b1)
- Right hot film mass air flow sensor (B2/7)
- Right intake air temperature sensor (B2/7b1)
- Rail pressure sensor (B4/6)
- Boost pressure sensor (B5/1)
- Camshaft Hall sensor (B6/1)
- Coolant temperature sensor (B11/4)
- Charge air temperature sensor (B17/8)
- Catalytic converter temperature sensor (B19)
- Temperature sensor upstream of diesel particulate filter (B19/9), with code (474) Particulate filter
- Temperature sensor upstream of turbocharger (B19/11)
- Pressure sensor downstream of air filter (B28/5)
- DPF differential pressure sensor (B28/8), with code (474) Particulate filter
- Oil level check switch (S43)
- Accelerator pedal sensor (B37)
- Fuel temperature sensor (B50)
- Exhaust back pressure sensor (B60)
- Crankshaft Hall sensor (B70)
- Oxygen sensor downstream of the catalytic converter (G3/1) (model 204.9)
- Oxygen sensor upstream of the catalytic converter (G3/2) (model 204.0/2)
Direct output signals
- Heater for oxygen sensor upstream of catalytic converter
- Throttle valve actuator (M16/6)
- Intake port shutoff actuator motor (M55)
- Circuit 15 relay (N10/2kA)
- Fuel pump relay (N10/2kD)
- Vent line heater element (R39/1)
- Exhaust gas recirculation actuator (Y27/9)
- Pressure regulator valve (Y74)
- Cylinder 1 fuel injector (Y76/1)
- Cylinder 2 fuel injector (Y76/2)
- Cylinder 3 fuel injector (Y76/3)
- Cylinder 4 fuel injector (Y76/4)
- Cylinder 5 fuel injector (Y76/5)
- Cylinder 6 fuel injector (Y76/6)
- Boost pressure actuator (Y77/1)
- Quantity control valve (Y94)
Chassis CAN signals
- Instrument cluster (A1)
- Supplemental restraint system control unit (N2/10)
- Front SAM control unit with fuse and relay module (N10/1)
- Electronic Stability Program control unit (N30/4)
- Electronic ignition lock control unit (N73)
Drive train CAN signals
- Electronic selector lever module control unit (N15/5), for vehicles with transmission 722.9
- Fully integrated transmission control unit (Y3/8n4), for vehicles with transmission 722.9
Drive LIN signals
- Alternator (G2)
- Glow output stage (N14/3)
| Wiring diagram for common rail diesel injection (CDI) control unit | Body side | PE07.16-P-2101-99FAA | |
| Engine side | PE07.16-P-2101-99FAB |
