Yaw rate, lateral and longitudinal acceleration sensor, component description - GF42.45-P-4810CE
MODEL 204.0/2 as of model year 09/YoM 08
MODEL 204.9
Location

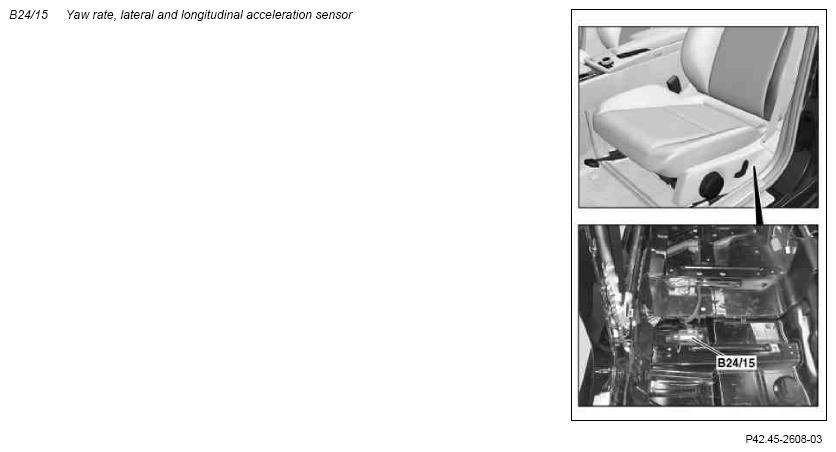

The yaw rate, lateral and longitudinal acceleration sensor is located below the driver's seat on the vehicle floor.
Task
The yaw rate, lateral and longitudinal acceleration sensor measures the rotational speed about the vertical axis. The integrated lateral acceleration sensor measures lateral acceleration. The integrated longitudinal acceleration sensor detects longitudinal inclination.
The respective signals are read in by the Electronic Stability Program control unit (N30/4) via the vehicle dynamics CAN (CAN H).
