Multifunction Camera, Component Description - GF54.21-P-3300CE

MODEL 204.0/2 with CODE (238) Active Lane Keeping Assist with CODE (476) Lane Keeping Assist with CODE (513) Speed Limit Assist with CODE (608) Adaptive high beams assist as of model year 2012/YoM 11 model refinement package

MODEL 204.3 with CODE (238) Active Lane Keeping Assist with CODE (476) Lane Keeping Assist with CODE (513) Speed Limit Assist with CODE (608) Adaptive high beams assist

MODEL 204.9 with CODE (238) Active Lane Keeping Assist with CODE (476) Lane Keeping Assist with CODE (513) Speed Limit Assist with CODE (608) Adaptive high beams assist as of model year 2013/model refinement package 12

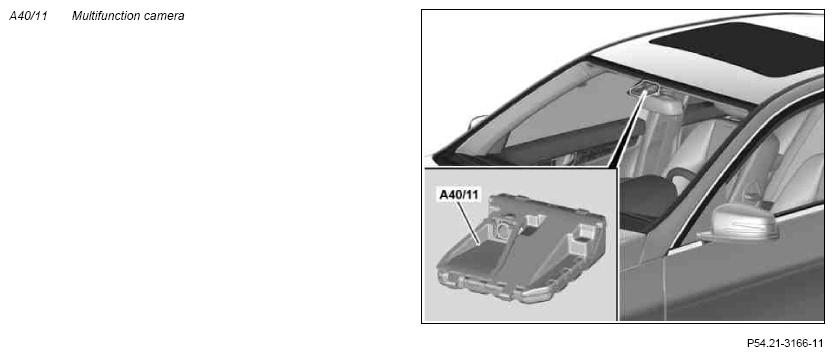

Fig 1: Identifying Multifunction Camera
G10084530

Location

The multifunction camera is under a cover at the top center of the windshield.

Task

The multifunction camera records pictures of the area in front of the vehicle. The pictures are processed by the control unit and are used in the implementation of various functions.

The multifunction camera has the following tasks:

Reading in of signals

The input factors are read in via the following connection:

Chassis CAN

On vehicles with code (238) Active Lane Keeping Assist or code (476) Lane Keeping Assist, the multifunction camera reads in the following signals via the chassis CAN:

On vehicles with code (513) Speed Limit Assist, the multifunction camera reads in the following signals via the chassis CAN:

On vehicles with code (608) Adaptive Highbeam Assist, the multifunction camera reads in the following signals via the chassis CAN:

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors are evaluated by the multifunction camera, and the corresponding components are actuated or the corresponding information or requests are output.

Controlling functions

The multifunction camera controls the following functions:

Actuation of components

To avoid any fogging in the multifunction camera's field of view, the windshield is heated in this area by the auxiliary heater heating element (R50). The auxiliary heater heating element is actuated directly by the multifunction camera.

Output of signals

The signals are issued over the following connections:

Chassis CAN

On vehicles with code (238) Active Lane Keeping Assist or code (476) Lane Keeping Assist, the multifunction camera sends the following signals via the chassis CAN:

On vehicles with code (513) Speed Limit Assist, the multifunction camera sends the following signal via the chassis CAN:

On vehicles with code (608) Adaptive Highbeam Assist, the multifunction camera sends the following signals via the chassis CAN:

Low voltage differential signaling line (for code (238) Active Lane Keeping Assist)

The multifunction camera sends image data via the LVDS line to the video and radar sensor system control unit (N62/2).

Design

The multifunction camera consists of the following main components which are installed inside a housing:

IMPORTANT The multifunction camera must be recalibrated after replacing the multifunction camera or windshield.

REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram for multifunction camera   PE54.21-P-2129-97FAA
