AMG performance media control unit, component description - GF82.60-P-5010CE
MODEL 204 with CODE 255 (AMG Performance Media)

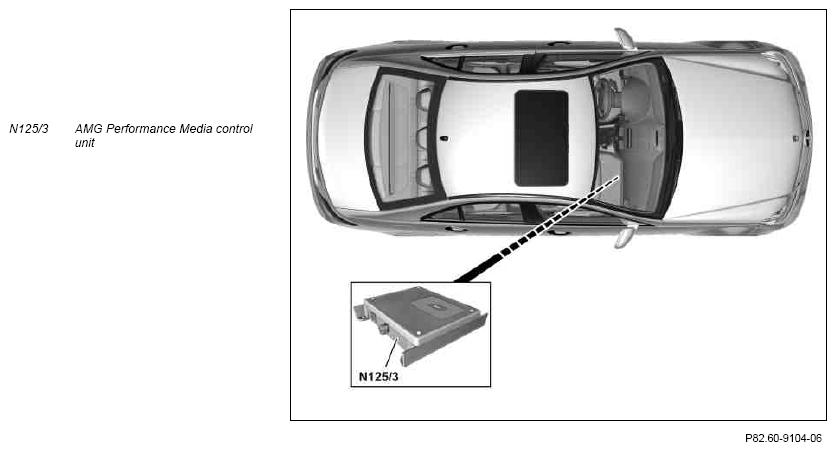

Location
The AMG Performance Media control unit is located below the floor paneling at the base of the passenger side.
Shown on model 204.0
Task
- Receive signals
- Transmitting signals
Receive signals
- CAN
- Direct lines
CAN
- Control signals from the Audio/COMAND control panel (A40/9) via telematics CAN (CAN A)
- Vehicle data from chassis CAN (CAN E)
- Global positioning system (GPS) data from COMAND controller unit (A40/3) via interior CAN (CAN B)
All control signals from the Audio/COMAND control panel are initially received by the AMG Performance Media control unit and then forwarded by it via telematics CAN.
Direct lines
- Power supply via circuit 30g and circuit 31
- Video signals for the Audio/COMAND display (A40/8) from the COMAND controller unit (via a low voltage differential signal (LVDS) line)
Transmitting signals
- CAN
- Direct lines
CAN
- Control signals from the Audio/COMAND control panel via telematics CAN to the COMAND controller unit
Direct lines
- Video signals to the COMAND display (over an LVDS line)
- Vehicle data and screenshots to the AMG Performance Media electrical connector (X39/74)
A universal serial bus (USB) stick connected to the AMG Performance Media electrical connector is powered by the AMG Performance Media control unit.
Body
The AMG Performance Media control unit includes not only the arithmetic unit, but also the following components:
- Interface for external storage medium (USB stick)
- Graphic chip for generating interfaces
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| AMG Performance Media control unit | ||||
| Voltage supply | V | 12 | Operating voltage (UB ) | |
| Voltage limits | V | 9 | Minimum (UB min) | |
| V | 16 | Maximum (UB max) | ||
| Power consumption | mA | 300 | Rated current consumption (IBmax ) | |
| mA | 250 | Rated current consumption (IBtype ) | ||
| μA | < 88 | No-load current (I 0 ) | ||
| Reverse polarity protection | V | 16 | For 60 s | |
| Additional specific parameters | - | - | ||
| Special features | - | - | ||
| Flash capability/coding capability | Yes/yes | |||
| AMG Performance Media electrical connector | ||||
| Model | Connector | |||
| Power consumption | mA | 500 | Permanent current |
| Wiring diagram for AMG Performance Media control unit | N125/3 model 204.077/277/377 | PE82.60-P-2106-97FAA |
