Retrofit reversing camera - AN54.65-P-0030GY

MODEL 164.8 as of model year 2010 with CODE (512) COMAND APS with DVD changer with CODE (527) COMAND APS (with navigation) with CODE (528) COMAND with DVD changer except CODE (849) Spare wheel holder/spare wheel

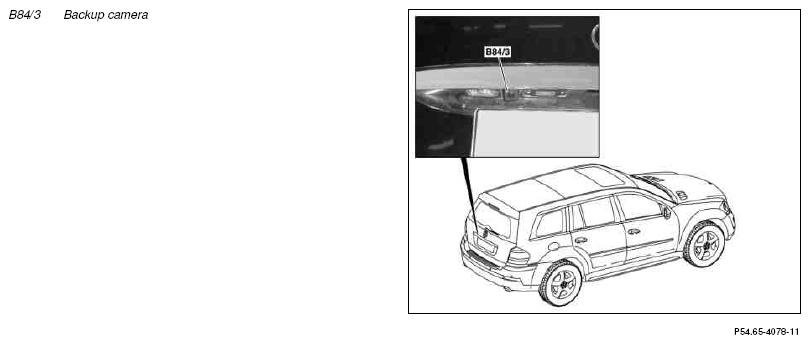

Fig 1: Identifying Back Up Camera

Courtesy of MERCEDES-BENZ USA

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove headliner		AR68.30-P-4300GZ
2	Remove radio		AR82.60-P-7502GZ
3	Remove center console		AR68.20-P-2000GZ
4	Remove 40% rear seat		AR91.12-P-1000GY
5	Remove trim from spare tire well		AR68.30-P-4620GZ
6	Detach rear fuse and relay box	Do not disconnect electrically	AR54.15-P-1261GZ
7	Remove bass module speaker	With code (810) Sound system.	AR82.62-P-7839GZ
8	Remove liner on liftgate		AR72.20-P-3520GZ
9	Remove handle strip for rear-end door outside		AR72.20-P-3650GZ
10	Remove rear-end door spray nozzle		AR82.35-P-6920GZ
	Install
11	Retrofit camera		AN54.65-P-0030-02GY
12	Retrofit the backup camera wiring harness		AN54.65-P-0030-03GY
13	Retrofit wiring harness for circuit 15		AN54.65-P-0030-04GY
14	Assemble vehicle	Steps 10 to 1.
15	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
16	Enter special equipment in the vehicle data card and in the vehicle's online data card	Code (218) Enter reversing camera. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
17	Perform retrofit variant coding
18	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
19	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Reversing camera retrofitted as per AN54.65-P-0030GY " note under field organization text for design group 54.
20	Perform function test
