Removing and installing rear seat - AR91.12-P-1000GY

MODEL 164.8 40 % rear seat

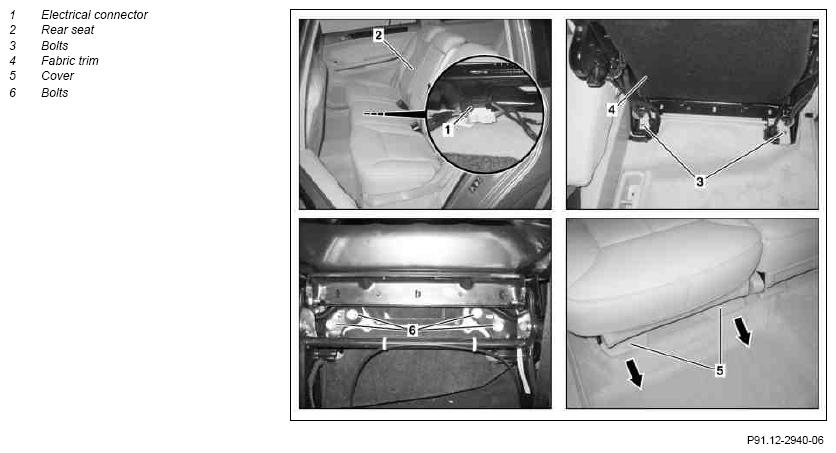

Fig 1: Identifying Rear Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold over 40 % rear seat
2	Unscrew left bolt and right bolt on covering (5)
3	Unclip covering (5) to front (arrows)
4	Remove gas-operated strut on seat frame of 40 % rear seat		AR91.12-P-6005GY
5	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
6	Disconnect electrical connector (1)
7	Remove bolts (3)
8	Remove fabric trim (4)
9	Remove bolts (6)		*BA91.12-P-1002-03F
			*BA91.12-P-1003-03F
10	Remove 40% rear seat
11	Install in the reverse order

REAR SEATS

Number	Designation		Model 164.8
BA91.12-P-1002-03F	Bolt, rear seat console to front of vehicle floor	Nm	50
BA91.12-P-1003-03F	Bolt, rear seat console to rear of vehicle floor	Nm	90
