Remove/install bass module speaker - AR82.62-P-7839GZ

MODEL 164 with CODE 810 (Sound-system)

Shown on model 164.1

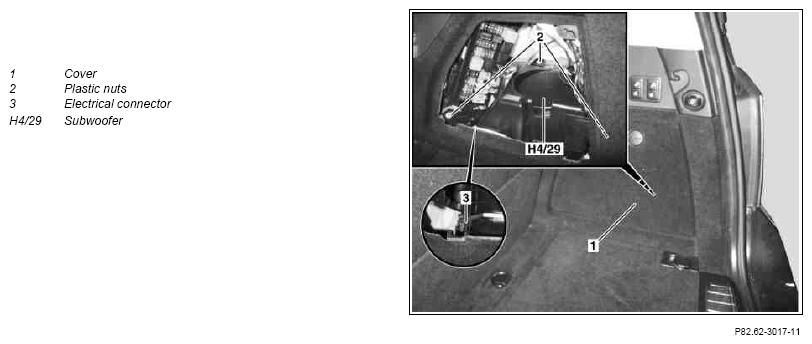

Fig 1: Identifying Bass Module Speaker Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8

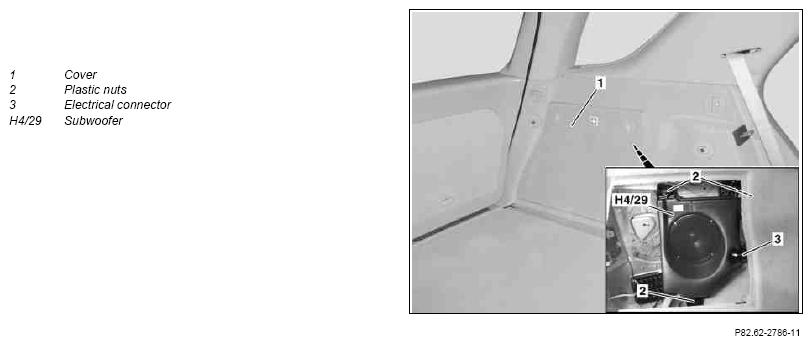

Fig 2: Identifying Bass Module Speaker Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1)	Model 164.1. Left side
2	Remove side paneling in trunk	Model 164.8. Right side	AR68.30-P-4800RT
3	Unscrew plastic nuts (2)
4	Remove subwoofer (H4/29)	In model 164.1, do not damage wiring harness! For vehicles with power glass tilting/sliding roof, code 414, do not damage water drain hose!
5	Disconnect electrical connector (3)
6	Install in the reverse order
