Remove/install spare tire well panel - AR68.30-P-4620GZ

MODEL 164 (except 164.195)

Shown on model 164.1 with code (942) EASY-PACK-Fixkit and code (723) Luggage compartment cover

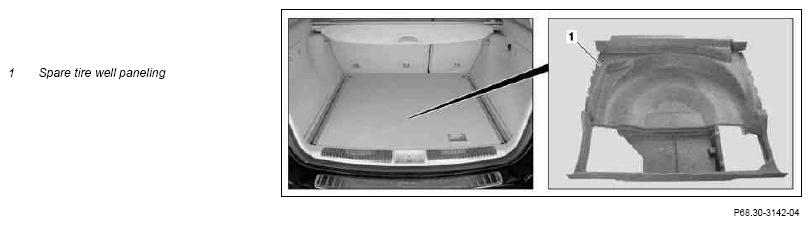

Fig 1: Identifying Spare Tire Well Panel Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1 with code (942) EASY-PACK-Fixkit and code (723) Luggage compartment cover

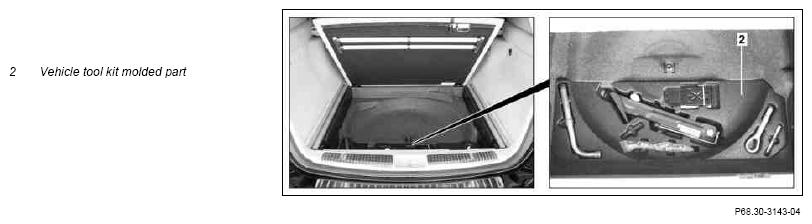

Fig 2: Identifying Vehicle Tool Kit Molded Part - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1 with code (942) EASY-PACK-Fixkit and code (723) Luggage compartment cover

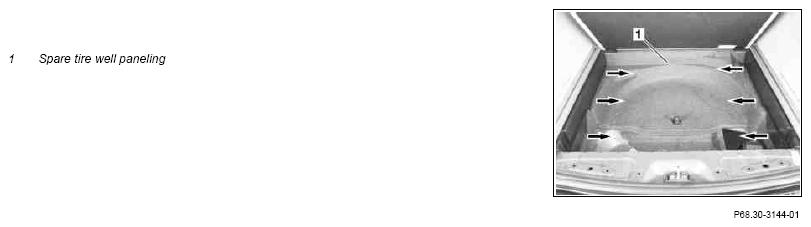

Fig 3: Locating Spare Tire Well Paneling - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open liftgate
2	Open luggage compartment cover	Only on vehicles with code (723) Luggage compartment cover.
3	Open load compartment floor and secure
4	Remove spare tire	Only on vehicles with code (669) Spare wheel on steel rim.
5	Remove vehicle tool kit shaped part (2) upward	Observe installation position.
6	Remove rear door sill molding		AR68.30-P-4100GZA
7	Remove clips from outer edges on spare tire recess paneling (1).	If present.
8	Pull outer edges of spare tire recess paneling (1) toward inside (arrows)	Do not kink spare tire recess paneling (1), danger of breakage! Ensure that outer edges of spare tire recess paneling (1) are seated correctly.
9	Install in the reverse order
