Remove/install headliner - AR68.30-P-4300GZ

MODEL 164

Shown on model 164.1, with Parktronic system (PTS), code 220

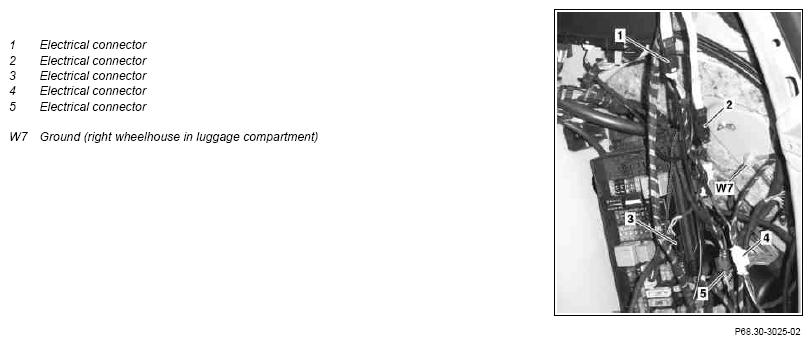

Fig 1: Identifying Headliner Remove/Install Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

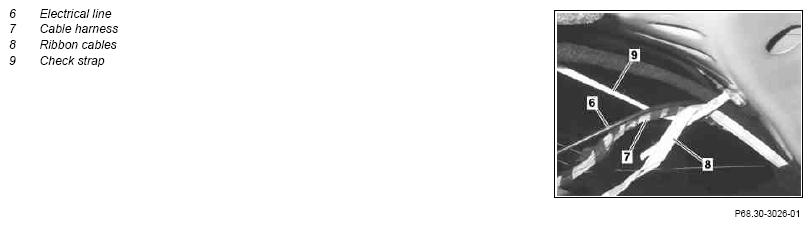

Fig 2: Identifying Electrical Lines, Cable Harness, Ribbon Cables And Check Strap

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1 without rear air conditioner, code 582, with sound system, code 810

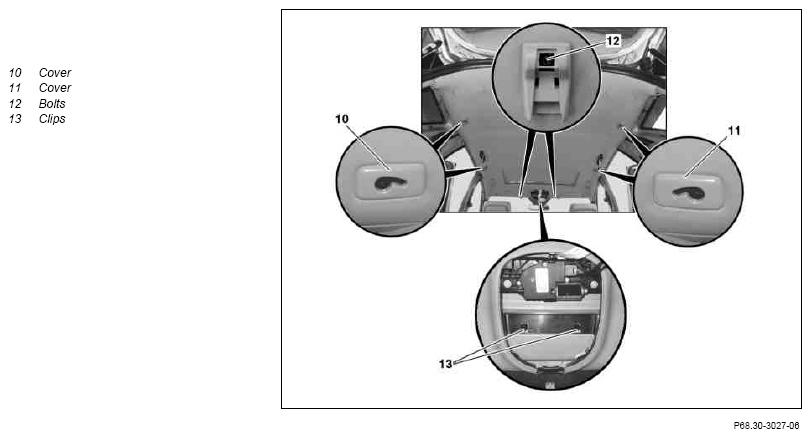

Fig 3: Identifying Cover, Bolts And Clip - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1 without rear air conditioner, code 582, with sound system, code 810

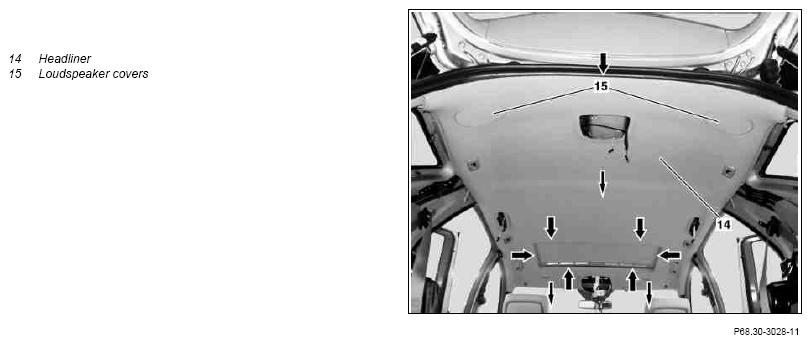

Fig 4: Locating Headliner And Loudspeaker Covers - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Illustration valid only for model 164.8 with rear air conditioner, code 582

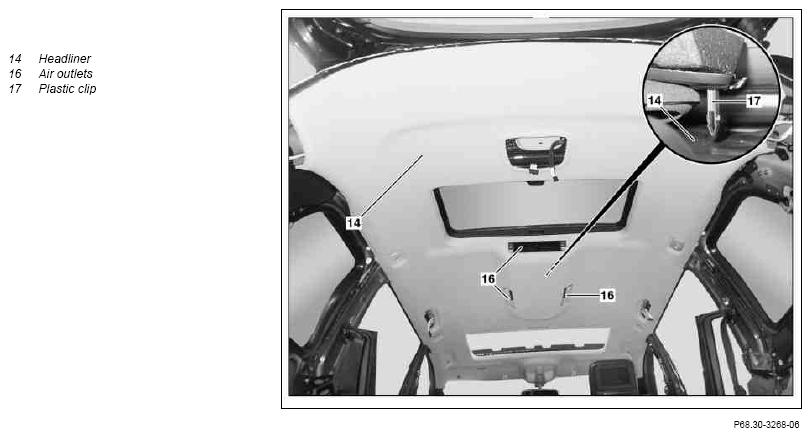

Fig 5: Identifying Headliner, Air Outlets And Plastic Clip - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front overhead control panel.		AR82.20-P-1100GZ
2	Remove sun visors		AR68.60-P-5480GZ
3	Remove paneling on A-pillar.		AR68.30-P-4050GZA
4	Remove front grab handles from roof		AR68.30-P-4330GZ
5	Completely move front seats toward front, position backrests upright and move head supports (front and rear) upward.	As support for headliner (14).
6	Remove paneling on B-pillar	Remove only top section Install mount in bolts and button in locking pawl. It should be possible to adjust and arrest the seat belt height adjustment.	AR68.30-P-4700GZ
7	Remove rear grab handle from roof		AR68.30-P-4330GZA
8.1	Remove Parktronic system warning display (PTS) in rear	Only with Parktronic system (PTS), code 220.	AR54.65-P-0007GZ
9	Remove rear dome lamp		AR82.20-P-0113GZ
10.1	Remove air vent from air outlet openings (16)	Only on vehicles with rear air conditioner, code 582.
		Long wedge	Figure
11	Remove side paneling in trunk	Model 164.1	AR68.30-P-4800GZ
		Model 164.8	AR68.30-P-4800RT
12	Remove panelings from C-pillar		AR68.30-P-4490GZ
13	Remove panelings from D-pillar		AR68.30-P-4495GZ
14	Disconnect electrical connectors (1, 2, 3, 4, 5)	The number and location of the connectors (1, 2, 3, 4, 5) can vary depending on the vehicle model and equipment.
15	Disconnect ground (right wheelhouse in luggage compartment (W7)
16	Pull back electrical line (6), wiring harness (7) and ribbon cables (8) over check strap.	Guide back electrical line (6), wiring harness (7) and ribbon cables (8) over check strap (9) to ensure proper function of the airbag!
17	Remove bolts (12)
18	Unclip clips (13)
19	Unclip covers (10, 11)	Unclip from rear.
20.1	Unclip clips (arrows A)	Only with power glass tilting/sliding, code 414.
21	Loosen Velcro strip mounts between headliner (14) and roof paneling.
22.1	Unclip plastic clip (17) and remove toward right from air guide pipe.	Only on vehicles with rear air conditioner, code 582.
23	Remove headliner (4) toward front (arrow B), then downward (arrows C).	Support headliner (14) in rear area with aid of helper. Danger of breaking! Only toward front (arrow B) on electric power glass tilting/sliding roof, code 414.
24	Remove headliner (14) toward rear from vehicle and lay down on clean subsurface.	With aid of helper.
25.1	Remove speaker covers (15) from headliner (14), cut out openings for speaker covers (15).	Only on vehicles with sound system, code 810, and if headliner (14) is to be replaced. The headliner (14) is only available without openings for the speaker covers (15). On vehicles with sound system, code 810 it is necessary to cut out the openings later. Use old headliner (14) as template. Prevent headliner fabric cover (14) from fraying (e.g. by gluing).
26	Install in the reverse order

Fig 6: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
