Remove/install tailgate spray nozzle - AR82.35-P-6920GZ

MODEL 164

Illustrated on model 164.1

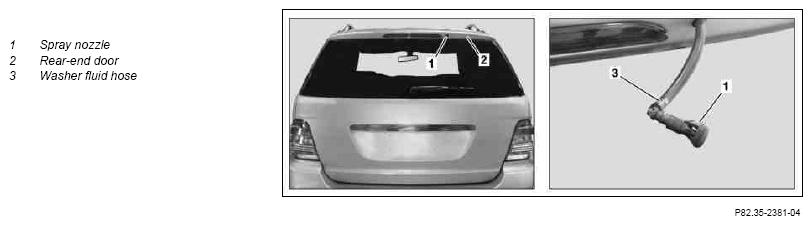

Fig 1: Identifying Tailgate Spray Nozzle Remove/Install Component

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip spray nozzle (1) from rear-end door (2)	Long wedge	Figure
2	Detach spray nozzle (1) from washer fluid hose (3)
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
