Retrofit TV tuner - AN82.60-P-0001GY

MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version)

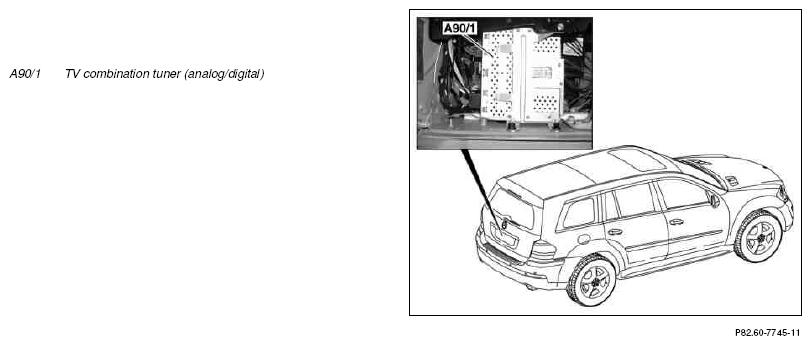

Fig 1: Identifying TV Combination Tuner (Analog/Digital)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove headliner
			AR68.30-P-4300GZ
2	Remove radio
			AR82.60-P-7502GZ
3	Remove glove compartment
		MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 810 (Sound system)	AR68.10-P-1400GZ
4	Remove center console
			AR68.20-P-2000GZ
5	Remove right rear seat
			AR91.12-P-1000GY
6	Remove left rear seat
			AR91.12-P-1000GYA
7	Remove floor covering in rear passenger compartment
			AR68.20-P-4800GZ
8	Remove front floor covering (right)
			AR68.20-P-2070GZ
9	Remove trim from spare tire well
			AR68.30-P-4620GZ
10	Remove 3rd seat row side window
		MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 848 (Power side vent windows) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 537 (Digital radio (DAB)) without CODE 882 (Interior motion sensor) Dispose of 3rd seat row side window.	AR67.30-P-4001GQB
11	Remove liftgate window
		MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 537 (Digital radio (DAB)) without CODE 882 (Interior motion sensor) Dispose of liftgate window.	AR67.20-P-3550GZ
12	Remove door lining at liftgate
			AR72.20-P-3520GZ
13	Remove wiring harness at left from liftgate	Dispose of wiring harness.
14	Detach fuse and relay module in rear and place to one side with electrical lines connected
			AR54.15-P-1261GZ
	Install
15	Install TV antenna amplifier
			AR82.62-P-8302GZ
16	Install new wiring harness at left for liftgate
17	Install TV tuner in trunk		AN82.60-P-0001-01GY
18	Retrofit MOST fiber optic cable wiring harness	MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 810 (Sound system)	AN82.61-P-0001-06GYA
19	Retrofit MOST fiber optic cable wiring harness		AN82.61-P-0001-06GYB
20	Retrofit TV tuner wiring harness		AN82.60-P-0001-03GYA
21	Retrofit TV tuner wiring harness	MODEL 164.8 as of model year 2010 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 864 (Rear compartment entertainment package) with CODE 866 (Pre-installation for Rear Seat Entertainment System) without CODE 494 (US version) without CODE 498 (Japanese version)	AN82.60-P-0001-03GYB
22	Install remaining parts
	Update Vehicle Documentation (VeDoc)
24	Add CODE 863 (Digital/analog TV tuner) in online vehicle data card		AN00.01-P-1001-01V
25	Attach note "Digital/analog TV tuner retrofitted as per AN82.60-P-0001GY " under field organization texts to design group 82
26	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
27	Perform variant coding of TV tuner with XENTRY using the software calibration number (SCN)
28	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
29	Perform function test
