Remove/install floor covering in rear - AR68.20-P-4800GZ

MODEL 164 (Floor covering, 2nd seat row)

Shown on model 164.1

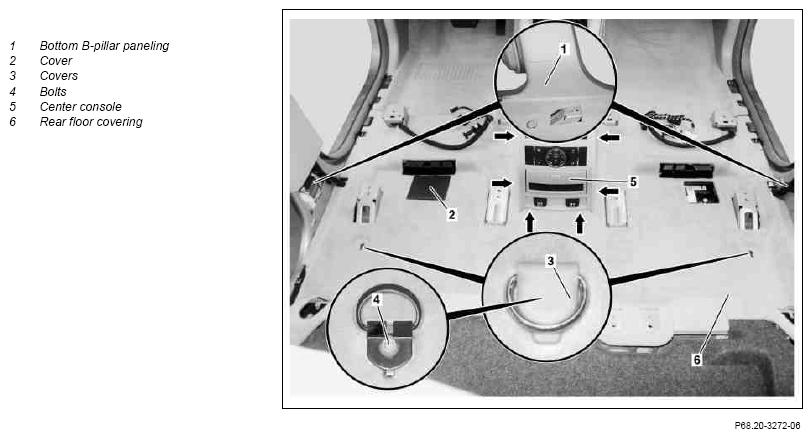

Fig 1: Identifying Rear Floor Covering Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove both front seats		AR91.10-P-1000GZ
2	Remove door sill moldings	On all doors.	AR68.30-P-4100GZ
3.1	Remove seat cushion from 60 % rear seat	On model 164.1.	AR91.12-P-1020GZA
3.2	Remove front bottom cover from 60 % rear seat	On model 164.8.
4.1	Remove seat cushion from 40 % rear seat	On model 164.1.	AR91.12-P-1020GZ
4.2	Remove front bottom plastic cover from 40 % rear seat	On model 164.8.
5	Unclip bottom B-pillar paneling (1) on both sides	Position upper long wedge at lower B-pillar.
		Long wedge	Figure
6	Unclip cover (2)	If present.
7	Unclip covers (3)
8	Remove bolts (4)		*BA68.50-P-1002-03F
9	Pull rear floor covering (6) out below center console (5)	Carefully raise center console (5) with long wedge (arrows) to prevent damage
		Long wedge	Figure
10	Remove rear floor covering (6)	Remove through rear door.
11	Install in the reverse order
