Partially replace front longitudinal member - AR62.20-P-1255V: Notes

MODEL 171

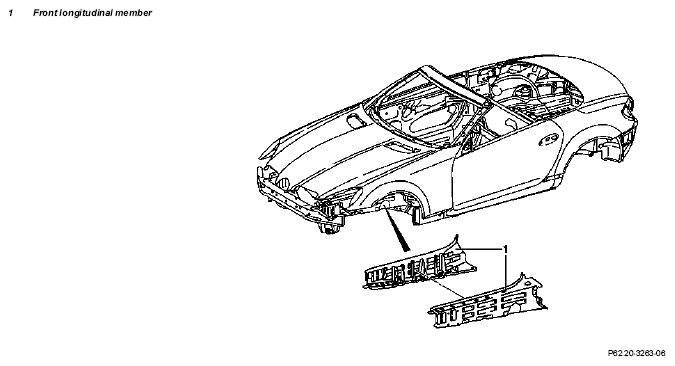

Fig 1: Identifying Front Longitudinal Member - Model 171
G05027928Courtesy of MERCEDES-BENZ USA
REMOVING Remove
DANGER Risk of death  caused by high voltage used for arc welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV-light while welding. Risk of poisoning  caused by inhaling welding vapors. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor. -
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. -
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and undeburred vehicle parts. -
    Deburr replacement panels.
1 Remove front bumper   AR88.20-P-2000V
2 Remove front headlamp unit When removing left and right front headlamp unit AR82.10-P-4730V
3 Remove front fender   AR88.10-P-1000V
4 Remove engine Engine 272.942 in model 171.454 with transmission 716.664, 722.943
    Engine 271.944 in model 171.442 with transmission 722.695
    Engine 113.989 in model 171.473 with transmission 722.907
    Engine 271.944 in model 171.442 with transmission 716.631 except automatic -
    Sequentronic manual transmission (SEQ), code 424
    Engine 272.963 in model 171.456 with transmission 722.906 AR01.10-P-2400VA
    Engine 272.963 in model 171.456 with transmission 716.664 AR01.10-P-2400VB
5 Remove detachable parts in area to be repaired
6 Cover all attached parts remaining in vehicle Tarpaulin (fireproof) *WH58.30-Z-1001-40A
7 Equip straightening bench with modular members, cross members and straightening bracket set. IMPORTANT Observe body plans provided.
    Celette straightening bench M8S *WE58.40-Z-1001-01E
    Celette straightening bench Sevenne *WE58.40-Z-1001-01E
    Set of Celette modular members 955.940 *WE58.40-Z-1007-01E
    Celette additional member 955.908 *WE58.40-Z-1008-01E
    Car-Bench straightening bench BT 17 *WE58.40-Z-1003-01E
    Car-Bench straightening bench BT 43/1 *WE58.40-Z-1003-01E
    Car-Bench universal cross member set A 296 *WE58.40-Z-1010-01E
    Multi-Z straightening set system MZ 450.000 *WE58.40-Z-1006-01E
    Celette straightening bench 7171.300 (for model 171) *WE58.40-Z-1052-01A
    Car-Bench straightening bracket set 82452 (for model 171) *WE58.40-Z-1053-01A
8 Raise vehicle.   AR00.60-P-1000V
9 Place vehicle onto straightening bench
10 Remove plugs from jack tubes
11 Attach vehicle to straightening bench
12 Remove front reinforcement   AR62.30-P-1400V
13 Completely remove front cross member   AR62.30-P-1300V
14 Partially separate front longitudinal member (1)   AR62.20-P-1255-01V
    SPECIAL TOOL Spot weld milling cutter Figure
    COMMERCIALLY AVAILABLE TOOLS Vario Drill WS 91 spot-weld loosening tool *WH58.30-Z-1006-01A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Cutting disc, dia. 65 mm, 80 m/s (max. 23.500 RPM) *WH58.30-Z-1021-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Body saw (electric/pneumatic) *WE58.40-Z-1004-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
15 Partially prepare front longitudinal member (1)   AR62.20-P-1255-02V
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Cutting disc, dia. 65 mm, 80 m/s (max. 23.500 RPM) *WH58.30-Z-1021-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Body saw (electric/pneumatic) *WE58.40-Z-1004-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
16 Partially install front longitudinal member (1)   AR62.20-P-1255-03V
    COMMERCIALLY AVAILABLE TOOLS Electrode miller *WH58.30-Z-1003-01A
    COMMERCIALLY AVAILABLE TOOLS Clamping pliers *WH58.30-Z-1003-02A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Manual temporary fastener, dia. 6.4 mm, clamping area 0 to 15 mm, identification color silver *WH58.30-Z-1038-02A
    COMMERCIALLY AVAILABLE TOOLS PowerBird blind rivet tool *WE58.40-Z-1003-14A
    Inert gas welder *WE58.40-Z-1001-02A
    Spot welder *WE58.40-Z-1002-02A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Steel blind rivet - steel 6.5x12.5 *BR00.45-Z-1012-13A
17 Completely install front cross member   AR62.30-P-1300V
18 Install front reinforcement   AR62.30-P-1400V
19 Unfasten vehicle from straightening bench
20 Install plugs for jack tubes
21 Raise vehicle.   AR00.60-P-1000V
22 Remove straightening bench.
23 Clean welds and sheet metal flange with round wire brush. COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
24 Clean area to be repaired
25 Prime area to be repaired with priming filler
26 Carry out seam sealing after repairs IMPORTANT Supplement standard sealing with MB body sealant. AR97.10-P-4000V
    Sealant *BR00.45-Z-1003-01A
    Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
27 Paint repair areas and adjacent surfaces
28 Apply additional cavity preservation   AR97.20-P-1500V
    Cavity preservation gun Sata HRS no. 11072 *WE58.40-Z-1006-08A
    Preservation agent *BR00.45-Z-1003-05A
29 Remove tarpaulin IMPORTANT On parts covered remaining in vehicle
30 Install engine Engine 272.942 in model 171.454 with transmissions 716.664, 722.943
    Engine 271.944 in model 171.442 with transmission 722.695
    Engine 113.989 in model 171.473 with transmission 722.907
    Sequentronic manual transmission (SEQ), code 424
    Engine 272.963 in model 171.456 with transmission 722.906 AR01.10-P-2400VA
    Engine 272.963 in model 171.456 with transmission 716.664 AR01.10-P-2400VB
31 Install front fender   AR88.10-P-1000V
32 Install front bumper   AR88.20-P-2000V
33 Install front lamp unit When removing left and right front headlamp unit. AR82.10-P-4730V
34 Install all detachable body components in area to be repaired
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G05027929Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1003-02A Clamping pliers
WH58.30-Z-1038-02A Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)
WH58.30-Z-1001-40A Tarp (fire-resistant)
WORKSHOP EQUIPMENT

WE58.40-Z-1052-01A Celette straightening bracket set 7171.300 (model 171)
WE58.40-Z-1053-01A Car bench straightening bracket set 82452, (model 171)
WE58.40-Z-1001-01E Celette straightening bench
WE58.40-Z-1003-01E Car-Bench straightening bench
WE58.40-Z-1006-01E Celette Multi-Z straightening set system
WE58.40-Z-1007-01E Celette module crossmember set 955.940
WE58.40-Z-1008-01E Celette additional member 955.908
WE58.40-Z-1010-01E Car-Bench universal cross member set A 296
WE58.40-Z-1001-02A Inert gas welder
WE58.40-Z-1002-02A Spot welder
WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
WE58.40-Z-1006-08A Cavity preservation gun
WE58.40-Z-1003-14A Blind rivet tool
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-01A Sealant A 001 989 63 20
BR00.45-Z-1003-05A Preservation agent A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1012-13A Rivet A 004 990 16 97
