Remove/install headlamp unit - AR82.10-P-4730V
MODELS 171.4
When removing left and right front lamp units

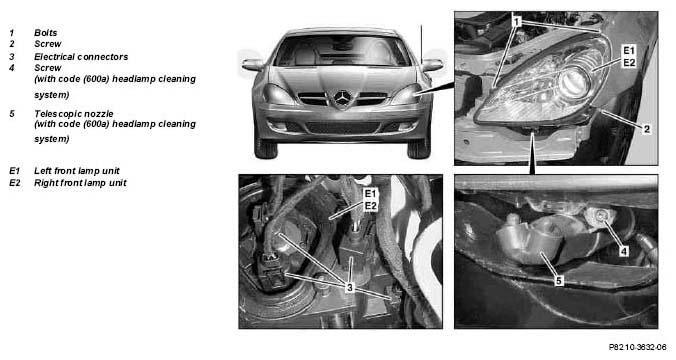

Shown on left front lamp unit

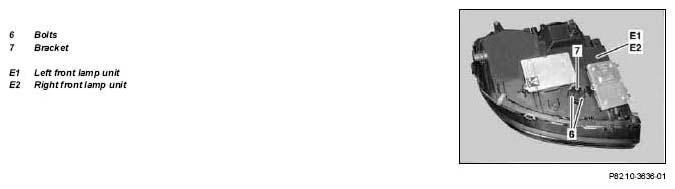

Shown on code (614) bi-xenon headlamp unit and left front lamp unit
Fig 2: Identifying Headlamp Unit Components - Shown On Code (614) Bi-Xenon Headlamp Unit And Left Front Lamp Unit
| Removal/installation | |||
|---|---|---|---|
| 1.1 | Switch off the ignition and remove the transmitter key from the EIS control unit | In vehicles with code (614) bi-xenon headlamp unit | |
| 2 | Remove front bumper | AR88.20-P-2000V | |
| 3 | Remove bolts (1) | ||
| 4 | Unscrew screw (2) | ||
| 5.1 | Unscrew bolt (4) | In vehicles with code (600a) headlamp cleaning system | |
| 6.1 | Release telescopic nozzle (5) from bracket of left front lamp unit (E1) using suitable screwdriver and push out towards rear | In vehicles with code (600a) headlamp cleaning system |
|
| 7 | Disconnect electrical connectors (3) from rear of left front lamp unit (E1) and remove left front lamp unit (E1) towards the front | ||
| 8.1 | Release telescopic nozzle (5) from bracket of right front lamp unit (E2) using suitable screwdriver and push out towards rear | In vehicles with code (600a) headlamp cleaning system |
|
| 9 | Disconnect electrical connectors (3) from rear of right front lamp unit (E2) and remove right front lamp unit (E2) towards the front | ||
| 10.1 | Unscrew and remove screws (6) from underside of left front lamp unit (E1) bracket (7) | When replacing the left front lamp unit (E1) in vehicles with code (614) bi-xenon headlamp unit | |
| 11.1 | Unscrew and remove screws (6) from underside of right front lamp unit (E2) bracket (7) | When replacing the right front lamp unit (E2) in vehicles with code (614) bi-xenon headlamp unit | |
| 12 | Install in the reverse order | ||
| 13 | Check the adjustment of the left front lamp unit (E1) and the right front lamp unit (E2) and correct, if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260V |
