Partially install front longitudinal member - AR62.20-P-1255-03V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1018-07A | Primer spray can with repair kit | A 000 986 32 50 |
| BR00.45-Z-1012-13A | Rivet | A 004 990 16 97 |

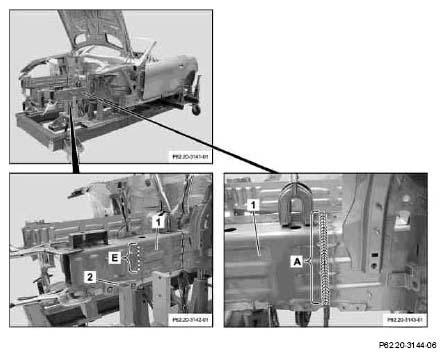

- Install front longitudinal member (1) with straightening tool (2), fit and fasten with
clamping pliers.
- Drill dia. 6.5 mm rivet holes in front longitudinal member (1) prepunched at the factory (area E).
- Remove outer section from front longitudinal member (1).
- Deburr rivet holes on both sides
- Apply primer to inside of rivet connections
- Install front longitudinal member outer section (1), fit and fasten with
- Fasten front longitudinal member (1) with
- Weld in front longitudinal member (1) with
(area A).
- Weld in front longitudinal member

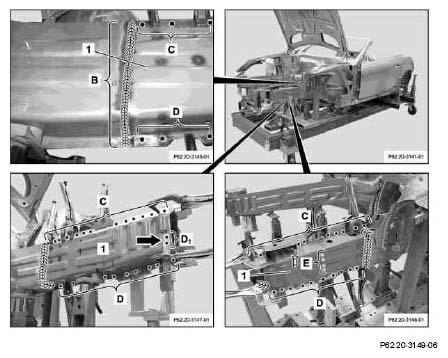

- Position sheet metal lug (arrow) again on front longitudinal member (1).
- Weld in front longitudinal member (1) with
(areas C, D and D1 ).
- Rivet front longitudinal member (1) with steel/steel blind rivet, 6.5 x 12.5 (area E).
- Remove straightening tool.
- Finish welding on front longitudinal member (1)
- Clean welds with
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
