Remove/install left cylinder head cover - AR01.20-P-5013GZA (ML350, ML550, GL450, GL550): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

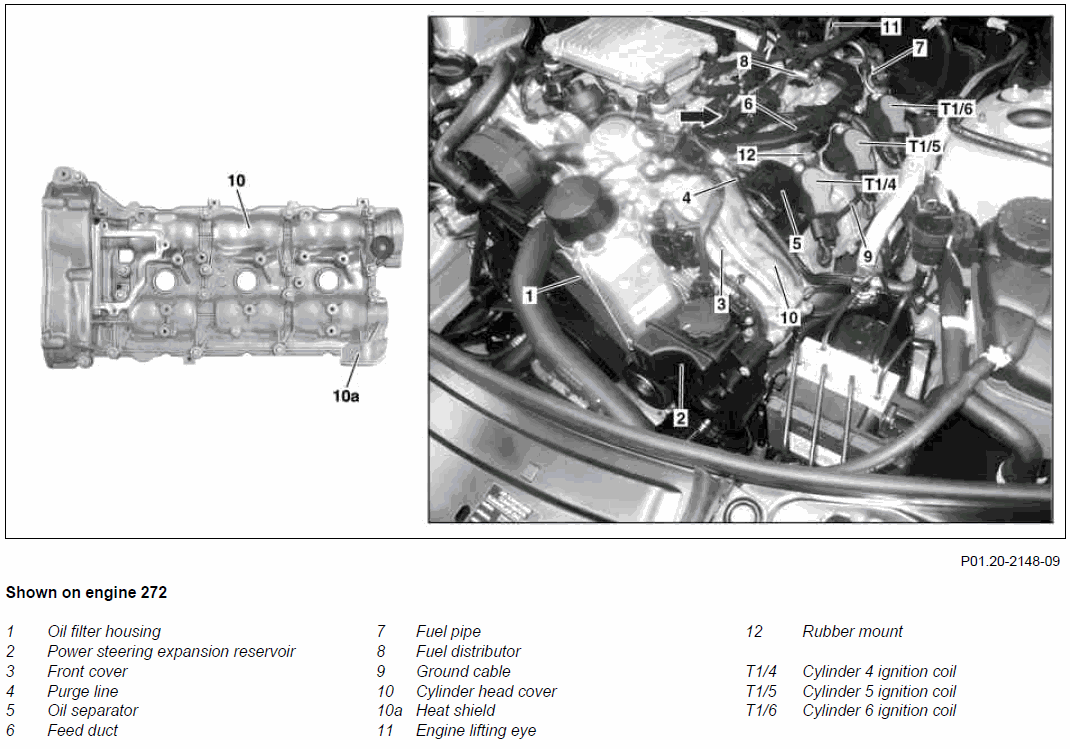

Fig 1: Removing/Installing Left Cylinder Head Cover
G00544348Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. AS20.00-Z-0001-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
1 Turn key in ignition lock to position "0" Vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off.
2 Drain coolant at radiator   AR20.00-P-1142GZC
NOTES Notes on coolant   AH20.00-N-2080-01A
3 Remove air filter housing   AR09.10-P-1150GZA
4 Remove poly-V belt and clamping device   AR13.20-P-0001GZA
5 Remove coolant thermostat   AR20.10-P-2460GZA
6 Remove oil filter housing (1)   AR18.20-P-3471GZA
7 Suction off oil in power steering expansion reservoir (2) SPECIAL TOOL Fig 5
8 Remove front cover (3) at left cylinder head   AR01.30-P-5700GZA
9 Disconnect purge line (4) at separation point (arrow) Unclip purge line (4) from brackets on oil separator (5) and feed channel (6) and place to one side.
10 Reduce fuel pressure with pressure hose via the service valve   AR07.03-P-1460-01GZ
    TORQUE SPECIFICATION Engine 272 with code 917 Fuel tank with exterior filter *BA07.03-P-1004-01B
    SPECIAL TOOL Fig 2
11 Detach fuel line (7) at fuel distributor (8) Catch escaping fuel with an absorbent rag!
Seal connections immediately with stop plugs.

    TORQUE SPECIFICATION *BA07.03-P-1001-01B
    SPECIAL TOOL Fig 3
12 Remove ignition coils for left cylinder bank   AR15.12-P-2003GZA
13 Remove oil separator (5)   AR01.20-P-9750GZA
14 Detach ground line (9) from cylinder head cover (10) TORQUE SPECIFICATION *BA01.30-P-1001-01O
15 Remove left rear engine lifting eye (11) TORQUE SPECIFICATION *BA01.30-P-1005-01O
16 Detach feed duct (6) from cylinder head cover (10) TORQUE SPECIFICATION *BA15.18-P-1002-01B
17 Detach front rubber mount (12) of air filter housing from cylinder head cover (10) TORQUE SPECIFICATION *BA01.30-P-1011-01O
18 Remove heat shield (10a) TORQUE SPECIFICATION *BA01.30-P-1017-01O
19 Loosen bolts for cylinder head cover (10) in reverse order of tightening procedure and remove them Engine 272 AR01.20-P-5014-03VA
    Engine 273 AR01.20-P-5014-03SX
    TORQUE SPECIFICATION *BA01.30-P-1004-01O
20 Pry off cylinder head cover (10) from cylinder head carefully To avoid damaging sealing surfaces, do not hit the tool for prying off between cylinder head cover (10) and cylinder head.
Installation:  Apply sealant to cylinder head cover (10).

IMPORTANT Notes on sealant path for cylinder head cover Engine 272
Engine 273
AH01.30-P-1000-08V
AH01.30-P-1000-08SX
    SPECIAL TOOL Fig 4
    Loctite sealant 5970 *BR00.45-Z-1013-01A
21 Clean sealing surfaces at cylinder head and at cylinder head cover (10) Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
22 Install in the reverse order
23 Fill power steering pump and bleed   AR46.30-P-0010GZ
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
24 Conduct engine test run and check engine for leaks
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 272 Engine 273
BA07.03-P-1001-01B Union nut, fuel feed line to fuel distributor Nm 20 20
BA07.03-P-1004-01B Protective cap on service valve Plastic Nm 2 -
Metal Nm 15 -
CYLINDER HEAD

Number Designation Engine 272 Engine 273
BA01.30-P-1001-01O Bolt, ground line to front cover M6 Nm 9 9
BA01.30-P-1004-01O Bolt for cylinder head cover on cylinder head M7 Stage 1 Nm 12 12
Stage 2 ∠ ° 90 90
BA01.30-P-1005-01O Bolt, lifting eye to cylinder head M8 Nm 20 20
BA01.30-P-1011-01O Bolt, air filter housing rubber mount to cylinder head cover M6 Nm 9 9
BA01.30-P-1017-01O Bolt, heat shield to cylinder head M6 Nm 9 9
ENGINE WIRING HARNESS

Number Designation Engine 272 Engine 273
BA15.18-P-1002-01B Bolt, feed duct to cylinder head cover Nm 8 8
Fig 2: Identifying Pressure Hose (119 589 04 63 00)
G07742723Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
G07765382Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Squeeze Gun (112 589 00 25 00)
G07742708Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Hand Pump (210 589 00 71 00)
G07741018Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite sealant 5970 A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
Arabellastrasse 17
81925 Munchen
Germany
Tel. +49 899268-0
Fax + 49 899101978
www.Loctite.de
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
