Notes on the application of sealing compound to the cylinder head cover - AH01.30-P-1000-08SX
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

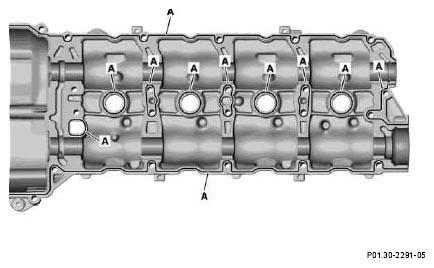

Sealing compound beads on the right cylinder head cover
The lines (A) identify the sealing compound beads.
The sealing surface must be cleaned. The sealing compound must only be applied to the specified surface in the form of a bead and a height and width of 1.0 mm (± 0.2 mm).
The sealing compound must be applied within 10 minutes.
The sealing compound bead must not be spread. Only the approved sealant may be used.

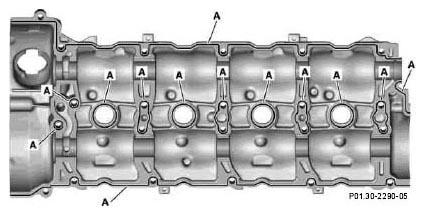

Sealing compound beads on the left cylinder head cover
