Bolt tightening diagram for cylinder head cover - AR01.20-P-5014-03VA (ML350)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

CYLINDER HEAD

Number	Designation				Engine 272
BA01.30-P-1004-01O	Bolt of cylinder head cover on cylinder head	M7	1st stage	Nm	12
BA01.30-P-1004-01O	Bolt of cylinder head cover on cylinder head		2nd stage	∠ °	90

Right cylinder head cover

Tighten cylinder head cover bolts in the numerical sequence.

Tighten bolts (1-18) in the 1st stage.
Tighten bolts (1-18) in the 2nd stage.

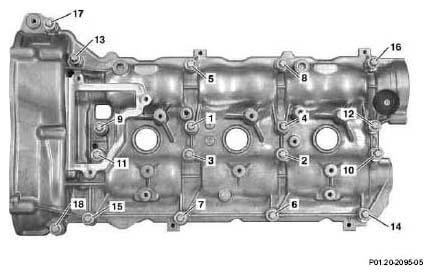

Fig 1: Identifying Tightening Sequence For Right Cylinder Head Cover Bolts
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Left cylinder head cover

Tighten cylinder head cover bolts in the numerical sequence.

Tighten bolts (1-18) in the 1st stage.
Tighten bolts (1-18) in the 2nd stage.

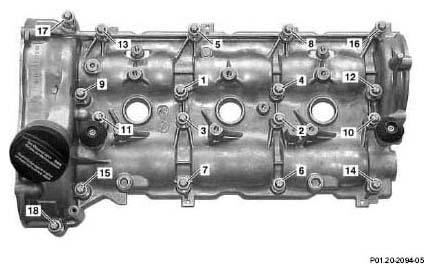

Fig 2: Identifying Tightening Sequence For Left Cylinder Head Cover Bolts
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
