Remove/install front cover on left cylinder head - AR01.30-P-5700GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

Left cylinder head

Shown without air filter housing

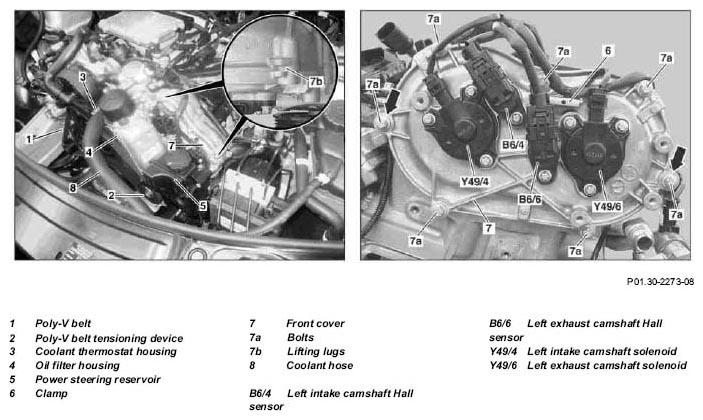

Fig 1: Identifying Front Cover On Cylinder Head Remove/Install Components (Shown Without Air Filter Housing)
G05257237Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Turn key in ignition lock to position "0" IMPORTANT Vehicles with Keyless Go, code 889:
Press Keyless Go start/stop button repeatedly until ignition is switched off.

2 Drain coolant at radiator   AR20.00-P-1142GZC
NOTES Notes on coolant   AH20.00-N-2080-01A
3 Remove front engine cover and left engine intake air duct
4 Remove poly-V belt (1) and poly-V belt tensioning device (2)   AR13.20-P-0001GZA
5 Remove coolant hose (8)
6 Remove coolant thermostat housing (3)   AR20.10-P-2460GZA
7 Remove oil filter housing (4)   AR18.20-P-3471GZA
8 Remove power steering expansion reservoir (5) Model 164 AR46.25-P-1000GZA
    Model 251 AR46.25-P-1000RT
9 Disconnect electrical connectors on left intake camshaft Hall sensor (B6/4) and left exhaust camshaft Hall sensor (B6/6)
10 Disconnect electrical connectors on left camshaft intake solenoid (Y49/4) and left camshaft exhaust solenoid (Y49/6)
11 Detach clamp (6)
12 Undo bolts (7a) on front cover (7) TORQUE SPECIFICATION *BA01.30-P-1006-01O
13 Carefully loosen front cover (7) on lifting lugs (7b) and detach to the front IMPORTANT Pay attention to fitted sleeves in area of outer threaded connections (arrows).
IMPORTANTInstallation:  Apply sealant to front cover (7).

IMPORTANT Notes on sealant path for front cover to cylinder head   AH01.30-P-1000-02V
    SPECIAL TOOL Fig 2
    Sealant *BR00.45-Z-1013-01A
CLEANING Clean
14 Clean sealing surfaces on cylinder head, on cylinder head cover and on front cover (7) NOTES Remove sealant residues. Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.
    Loctite 7200 *BR00.45-Z-1038-04A
15 Detach left intake camshaft Hall sensor (B6/4) and left exhaust camshaft Hall sensor (B6/6) from front cover (7) IMPORTANT When replacing the front cover (7)
    TORQUE SPECIFICATION *BA15.10-P-1002-03E
16 Detach left camshaft intake solenoid (Y49/4) and left camshaft exhaust solenoid (Y49/6) from front cover (7) IMPORTANT When replacing the front cover (7)
    TORQUE SPECIFICATION *BA15.10-P-1003-03E
17 Install in the reverse order
INSPECT Checking
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
18 Conduct engine test run and check the engine for leaks
CYLINDER HEAD

Number Designation Engine 272 Engine 273
BA01.30-P-1006-01O Bolt, front cover to cylinder head M6 Nm 9 9
POSITION SENSOR

Number Designation Engine 272 Engine 273
BA15.10-P-1002-03E Bolt, camshaft Hall sensor to front cover on cylinder head Nm 8 8
BA15.10-P-1003-03E Bolt, camshaft solenoid to front cover to cylinder head Nm 8 8
Fig 2: Identifying Squeeze Gun (112 589 00 25 00)
G05257238Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
Arabellastrasse 17
81925 Munchen
Germany
Tel. +49-899268-0
Fax +49-899101978
www.Loctite.de
