Bolt tightening diagram for cylinder head cover - AR01.20-P-5014-03SX (ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD
| Number | Designation | Engine 273 | |||
|---|---|---|---|---|---|
| BA01.30-P-1004-01O | Bolt for cylinder head cover on cylinder head | M7 | Stage 1 | Nm | 12 |
| Stage 2 | ∠ ° | 90 | |||
Tighten cylinder head cover bolts in the numerical sequence.

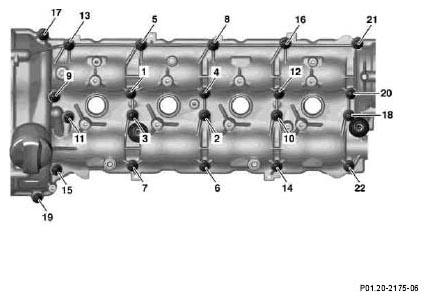

Right cylinder head cover
- Tighten bolts (1 to 22) with Stage 1.
- Tighten bolts (1 to 22) with Stage 2.

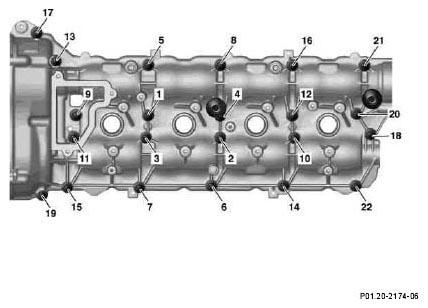

Left cylinder head cover
- Tighten bolts (1 to 22) with Stage 1.
- Tighten bolts (1 to 22) with Stage 2.
