Notes on the course of the application of sealing compound on a cylinder head cover - AH01.30-P-1000-08V
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

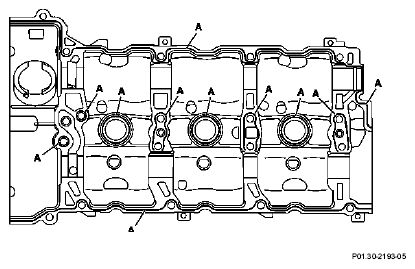

Courses of sealing compound on the right hand cylinder head cover
The lines (A) mark the courses of sealing compound.
The sealing compound should only be applied along the specified lines (A) in the form of a bead of sealing compound of 1.0 mm ± 0.2 mm.
The sealing compound must be applied within 10 minutes.
The sealing compound bead must not be spread. Only the approved sealing compound may be used.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

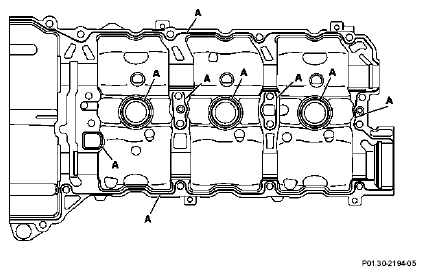

Courses of sealing compound on the left hand cylinder head cover
The lines (A) mark the courses of sealing compound.
The sealing compound should only be applied along the specified lines (A) in the form of a bead of sealing compound of 1.0 mm ± 0.2 mm.
The sealing compound must be applied within 10 minutes.
The sealing compound bead must not be spread. Only the approved sealing compound may be used.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
