Retrofit vehicle video system - AZ82.60-P-0004A

MODELS 163.136 /154 /172 1A as of 145273, 163.136 /154 /172 1X as of 708319, 163.113 /128 /157 /174 /175 1#

left hand drive vehicle

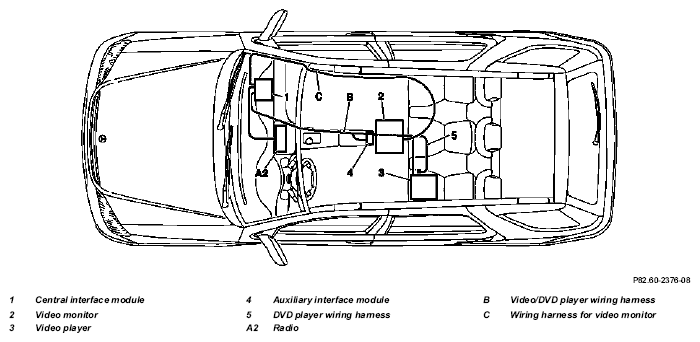

Fig 1: Identifying Vehicle Video System Components

Fig 2: Identifying Vehicle Antenna Cable And Self-Adhesive Foamed Material

Fig 3: Identifying Wiring Harness For Auxiliary Interface Module And Clip

Fig 4: Identifying Auxiliary Interface Module Connector And Mount For Center Console

	Remove
1	Remove center console
	Remove/install center console		AR68.20-P-2000GH
2	Remove center console insulating mat
3	Remove rear air duct	Up to VIN A289564, X754619. 2 screws at rear air duct.
4	Remove radio (A2)
	Remove/install radio		AR82.60-P-7502EA
5	Remove glove compartment
	Remove/install glove compartment		AR68.10-P-1400GI
		Torx bit set	Fig 5
6	Loosen upper section of right front door rubber seal
7	Remove A-pillar paneling on right
	Remove/install paneling on A-pillar		AR68.30-P-4050GH
		Long wedge	Figure
8	Remove right sun visor
	Remove/install sun visor		AR68.60-P-5480GH
9	Remove right front handle	Open covers for handles, press down clip on each side of handle, at the same time press handle upward and pull out.
10	Remove edge guard for tilting/sliding roof cutout
11	Release upper right B-pillar paneling
12	Remove covers at lower rear seat	Do NOT remove center cover for lower 40% seat. Do NOT reinstall curtain on 60% front bench seat.
	Remove and install cover on bottom of rear seat		AR91.12-P-1100GH
13	Release side shade at the 60% bench	Fold shade upward so that the working area is not obstructed.
14	Remove 40% rear seat
	Remove and install bench		AR91.12-P-1010GI
		Torx bit set	Fig 5
	Install
15	Retrofit central interface module (1)		AZ82.60-P-0004-01A
16	Insert antenna cable for FM modulator (6) into vehicle antenna cable (7)
17	Cover connector with self-adhesive foamed material (8)
18	Plug remaining antenna cable of FM modulator (9) into radio
19	Install radio (A2)
	Remove/install radio		AR82.60-P-7502EA
20	Retrofit video monitor (2) and wiring harness of video monitor (C)	With  glass version of electric sliding/tilting roof, code 414a.	AZ82.60-P-0004-02A
		Except  glass version of electric sliding/ tilting roof, code 414a.	AZ82.60-P-0004-02B
21	Secure upper right B-pillar paneling	Ensure that the lugs of the seat belt height adjustment are located correctly in the recess clearance of the paneling.
22	Install right front handle
23	Install right sun visor
	Remove/install sun visor		AR68.60-P-5480GH
24	Install right front A-pillar cover
	Remove/install paneling on A-pillar		AR68.30-P-4050GH
25	Re-secure upper area of rubber door seal
26	Route wiring harness of video/DVD player (B), additional interface module (4) and wiring harness of video monitor (C) later	Up to VIN A289564, X754619.	AZ82.60-P-0004-03A
		As of VIN A289565, X754620.	AZ82.60-P-0004-03B
27	Retrofit auxiliary interface module (4) in center console	Up to VIN A289564, X754619.	AZ82.60-P-0004-04A
		As of VIN A289565, X754620.	AZ82.60-P-0004-04B
28	Install center console insulating mat
29	Install center console
	Remove/install center console		AR68.20-P-2000GH
30.1	Plug in plug of additional interface module and secure the wiring harness of the additional interface module (10) to the clip (11) together with the wiring harness of the rear power windows in the center console	Up to VIN A289564, X754619.
30.2	Insert auxiliary interface module (13) connector and route between center console mount (14) and center console.	As of VIN A289565, X754620.
31.1	Secure auxiliary interface module plug in the left rear corner of the ashtray housing using self-adhesive foamed material (12)	Up to VIN A289564, X754619.
32	Open ashtray and cup holder and close to check correct function
33	Attach side shade of the 60% bench
34.1	Retrofit video player (3)		AZ82.60-P-0004-05A
			*BA91.12-P-1005-03A
			BA91.12-P-1008-03A
34.2	Retrofit DVD player		AZ82.60-P-0005-01GH
35	Install 40% rear seat
	Remove and install bench		AR91.12-P-1010GI
		Torx bit set	Fig 5
36	Install remaining covers under rear seat bench	Replace cover under rear seat bench at rear with cover from the conversion kit.
	Remove and install cover on bottom of rear seat		AR91.12-P-1100GH
37	Disconnect ground lead from battery
	Disconnect ground lead from battery		AR54.10-P-0003A
38	Retrofit voltage supply for central interface module (1)		AZ82.60-P-0004-06A
39	Install glove compartment
	Remove/install glove compartment		AR68.10-P-1400GI
		Torx bit set	Fig 5
40	Connect ground cable for battery
	Disconnect ground lead from battery		AR54.10-P-0003A
41.1	Initialize DVD player	As of VIN A289565, X754620.	AZ82.60-P-0004-07GH

Rear seats

Fig 5: Identifying Torx Bit Set (000 589 01 10 00)

Fig 6: Identifying Longitudinal Wedge (115 589 03 59 00)
