Remove/install glove compartment - AR68.10-P-1400GI

MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 708319,163.113 /128 /157 /174 /175

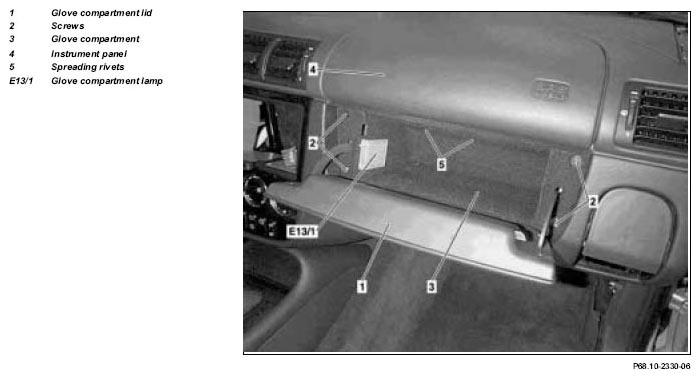

Fig 1: Identifying Glove Compartment Lid, Screws, Spreading Rivets & Lamp

	Remove/Install
1	Open glove compartment lid (1)
2	Unclip glove compartment lamp (E13/1) and disconnect connector
3	Unscrew bolt (2)	Torx bit set	Fig 2
4	Remove upper spreading rivets (5) from glove compartment (3)	Press pressure pin approx. 4 mm upward and remove spreading rivet downward.
5	Pull glove compartment (3) out of instrument panel (4)
6	Install in the reverse order	Align upper edge of glove compartment lid (1) in relation to instrument panel (4).

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
