Retrofit wiring harness for auxiliary interface module and video/DVD player - AZ82.60-P-0004-03A

Model 163.113/136 /154 /172 /174 #A as of 145273 289564,

Model 163.113 /136 /154 /172 #X as of 708319 up to 754619

Adhere supplied self-adhesive foamed material (1) to rear end of the center console bracket (2).
Measure dimension (a) on left and right from the upper edge of the transmission tunnel and mark floor covering.
Starting from the transmission tunnel cutout of the floor covering, cut into floor covering 2 times (b).
Incisions should be located above the recesses in the transmission tunnel.

Fig 1: Identifying Dimension (A) On Left And Right From Upper Edge Of Transmission Tunnel
From the transmission tunnel cutout of the floor covering measure dimension (c) and from the inner edge of the cutout of the 40 % rear seat (3) measure the dimension (d) and mark floor covering.

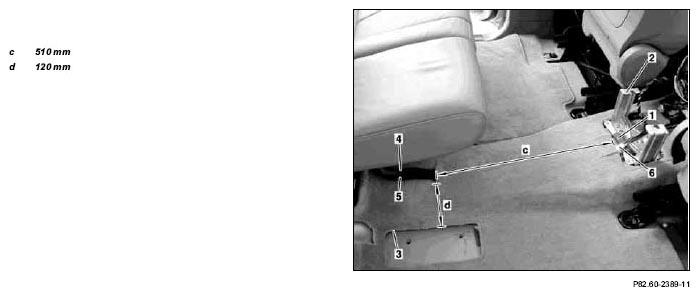

Fig 2: Identifying Transmission Tunnel Cutout Of Floor Covering Dimension (C)
Cut into floor covering toward left-hand side (e).
Incision should be located in the center of the transmission tunnel.
Starting from the center of the previous incision, cut into floor covering toward the rear (f).
Guide wiring harness for video player (4) and wiring harness for DVD player (5) from the incision behind the center console bracket (2) to the cutout for the 40% rear seat (3).
Leave wiring harness at this point for routing under the floor covering at a later time. Do NOT route wiring harness for the auxiliary interface module under the floor covering.

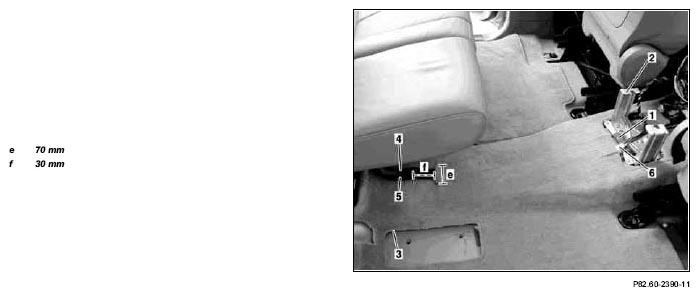

Fig 3: Identifying Cut Into Floor Covering Toward Left-Hand Side (e)
Place wiring harnesses at top on the selector lever module.
Ensure that the wiring harnesses remain in this position. This ensures that the wiring harnesses have sufficient play for subsequent installation of the air duct.
Guide wiring harness for video player and wiring harness for DVD player to the incision in the floor covering under the 60% rear seat.
Wiring harnesses should lie as straight and as flat as possible in the recesses of the transmission tunnel from the center console cutout to the rear incision. White adhesive tape mark (6) should remain at the rear end of the center console bracket (2).
Slide tab of the floor covering at the rear incision under wiring harnesses.
Install rear air duct (7).
2 bolts at the rear air duct.
Route wiring harness for auxiliary interface module (8), wiring harnesses for video and DVD player (9) along the upper side of the air duct (7) and secure using self-adhesive foamed material (10) supplied.
Route wiring harnesses as flat as possible.

Fig 4: Identifying Rear Air Duct, Self-Adhesive Foamed Material And Auxiliary Interface Module
Secure wiring harness for auxiliary interface module (8) with tie straps (12) to wiring harness of the rear power window (11).
White adhesive tape marks identify position of the tie straps.

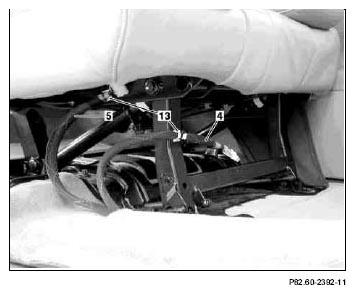

Secure video player wiring harness with blue color coding (4) and DVD player wiring harness with red color coding (5) with self-adhesive brackets (13) and tie straps at the 60% rear seat.
The white strips of adhesive tape on the wiring harness for video player (4) and the red strips of adhesive tape on the wiring harness for DVD player (5) identify the location for the brackets and tie straps.

Fig 5: Identifying Self-Adhesive Brackets, Blue Color Coding And Red Color Coding
