Remove and install bench - AR91.12-P-1010GI

MODELS 163.136 /154 /172 as of 1.9.99, 163.113/128/157/174/175 40 % bench seat

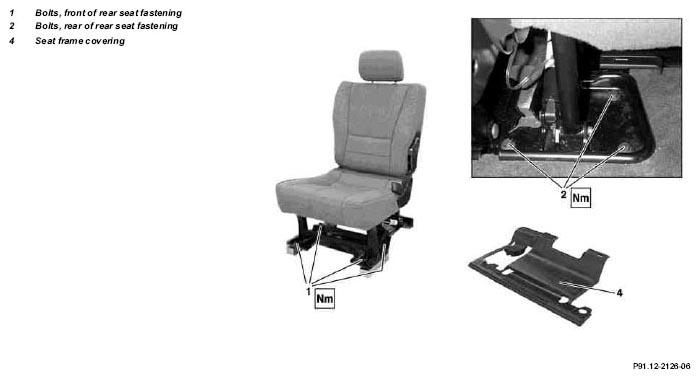

Fig 1: Identifying Bench Components

G04609342

	Remove, Install
1	Remove headrest	See Operating Instructions
2.1	Remove covering (4) on bottom of rear seat	On 40 % rear seat only.	AR91.12-P-1100GH
3.1	Disconnect plug to seat belt buckle cable	Only with side airbag in the rear (left and right), code 293.
4.1	Remove electric lead attached to seat frame with adhesive tape	Only with side airbag in the rear (left and right), code 293. Installation: Replace adhesive tape.
5	Unscrew bolts (1) on front of rear seat fastening	Installation: Replace bolts and nuts with locking agent applied.
		Torx bit set	Figure
			*BA91.12-P-1005-03A
6	Release backrest and tip forward	See Operating Instructions
7	Release seat bench and fold down	See Operating Instructions
8	Remove bolts (2) on rear of rear seat fastening	Installation: Replace bolts and nuts with locking agent applied.
		Torx bit set	Figure
			*BA91.12-P-1005-03A
9	Remove 40 % bench
10	Install in the reverse order

TORQUE SPECIFICATION

Rear seats

Number	Designation		Model 163 as of 09/99
BA91.12-P-1005-03A	Nuts for rear seat console on vehicle floor	NM	40

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)

G04609343
