Retrofit central interface module - AZ82.60-P-0004-01A

Models 163.136/154/172 1A as of 145273, Models 163.136/154/172 1X as of 708319, Models 163.113/128 /157 /174 /175 1#

1. Place central interface module (1) on workbench.

   For LHS installation, note label on interface module (1).

2. Insert both plugs of the video/DVD player wiring harness (2) into interface module (1).

   Color marks on the plugs must match the inputs on the interface module marked with the same color.

3. Insert both plugs of video monitor wiring harness (3) into interface module (1).
4. Secure FM modulator (4) on interface module with Velcro strip provided.

   Attachment position marked on interface module.

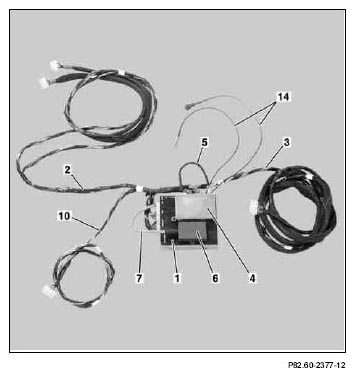

   Fig 1: Identifying FM Modulator, Interface Module And Wireless Headphones


5. Insert FM modulator wiring harness (5) into interface module and FM modulator.

1. 6.1 Secure RF module for wireless headphones (6) on interface module with Velcro strip provided.

   Only if provided. Attachment position marked on interface module.

2. 7.1 Insert RF module wiring harness (7) into interface module and RF module.

   If fitted.

3. 8 Fold foam strips supplied (8) on the right-hand side around the lower edge of the instrument panel carrier (9) in the glove compartment opening.
4. 9 Route additional interface module wiring harness (10) and video/DVD player wiring harness (2) into the glove compartment opening below the left-hand bracket for instrument panel (11).

   Route wiring harness before the interior wiring harness (12).

5. 10 Route additional interface module wiring harness (10) and video/DVD player wiring harness (2) within the instrument panel (11) downwards, to the opening in the middle of the instrument panel above the transmission tunnel.
6. 11 Secure the magnetic ring to the underside of the instrument panel carrier (11) with tie straps.
7. 12 Route wiring harnesses on the right-hand side along the transmission tunnel.
   Fig 2: Identifying Instrument Panel Carrier And Fold Foam Strips


8. 13 Route video monitor wiring harness (3) through the glove compartment, below the right-hand bracket for the instrument panel (13) upwards to the A-pillar.

   Route wiring harness before the interior wiring harness (12). Ensure that the wiring harness passes behind the vent duct for the right lateral nozzle.

9. 14 Lay down wiring harness carefully on instrument panel.
10. 15 Clean upper edge of instrument panel carrier (9) in upper area where the interface module is secured in order to ensure maximum adhesion.
11. 16 Detach protective foil from strips of adhesive tape at bottom of interface module.
12. 17 Guide interface module into glove compartment opening and adhere to the upper edge of the instrument panel carrier (9).

    Align interface module in the center between the left and right-hand brackets at the upper edge of the bracket for the instrument panel (9).

    Fig 3: Identifying Interior Wiring Harness And Bracket


13. 18 Route antenna cable (14) of interface module below brackets of instrument panel at left to the radio installation slot.

    If fitted, guide through wiring harness under the telephone module.

    Fig 4: Identifying Antenna Cable And Instrument Panel Carrier
