Rear Drain Hose Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION .)
2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
12. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
13. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
14. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
15. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
16. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
17. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
Disconnect the front drain hose from the sunroof frame.

Fig 1: Disconnecting Front Drain Hose From Sunroof Frame
Courtesy of MAZDA MOTORS CORP.

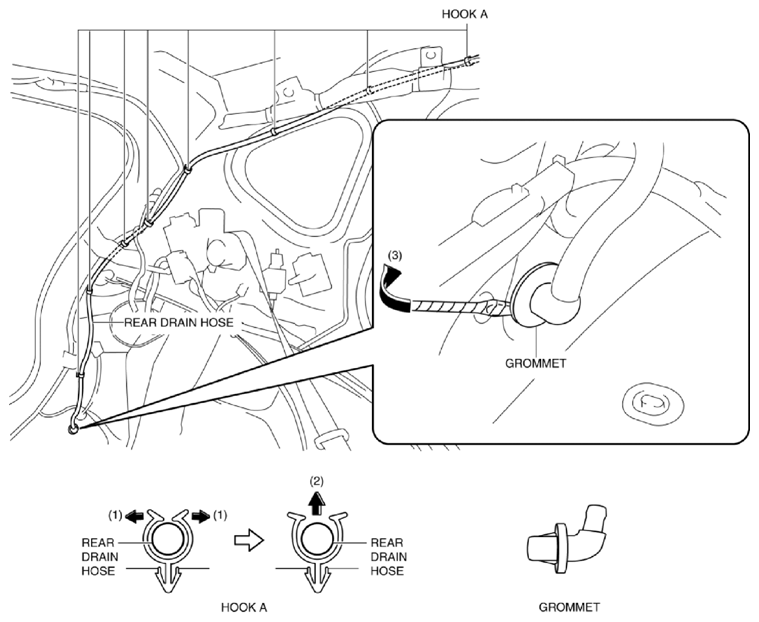

Pull the rear drain hose in the direction of the arrow in the order of (1), (2) shown in the figure from hooks A.

Fig 2: Pulling Out Rear Drain Hose From Hooks
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow (3).
Remove the rear drain hose.
Install in the reverse order of removal.
