Front Drain Hose Removal/Installation: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    12. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    13. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    14. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    15. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    16. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    17. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Disconnect the front drain hose from the sunroof frame.

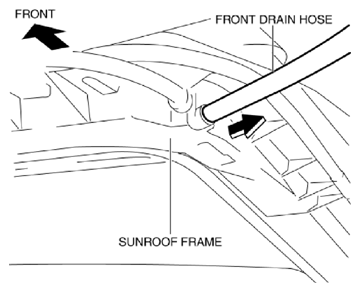

    Fig 1: Disconnecting Front Drain Hose From Sunroof Frame
    G10938907Courtesy of MAZDA MOTORS CORP.
  4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

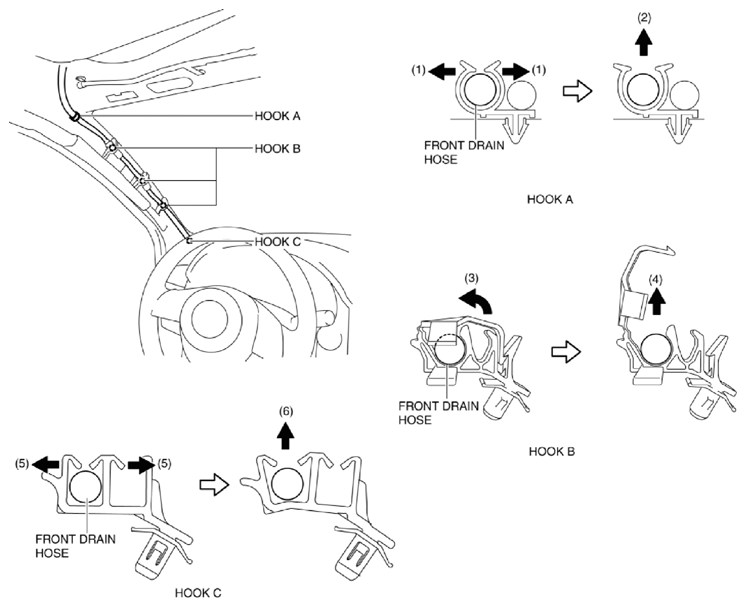

    Fig 2: Pulling Front Drain Hose
    G10938908Courtesy of MAZDA MOTORS CORP.
  5. Pull the front drain hose in the direction of the arrow in the order of (3), (4) and remove it while detaching hooks B.
  6. Pull the front drain hose in the direction of the arrow in the order of (5), (6) and remove it while detaching hook C.
  7. While visually verifying from the car-navigation unit opening (driver-side) and glove component opening (passenger-side), partially peel back the dashboard lower insulator, insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow.

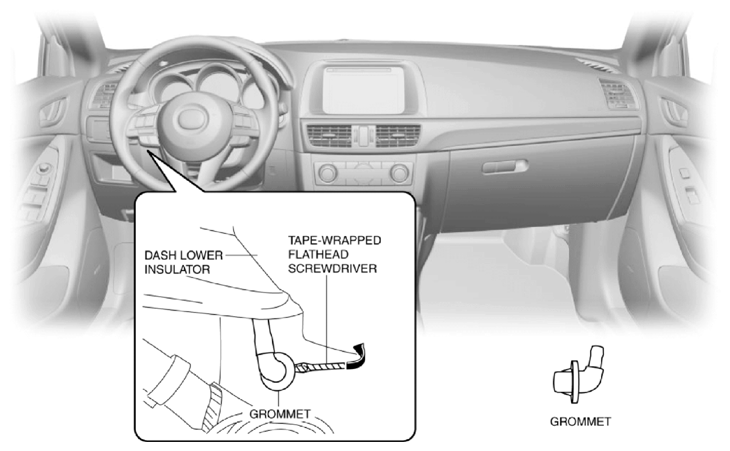

    Fig 3: Removing Grommet
    G10938909Courtesy of MAZDA MOTORS CORP.
  8. Pull the front drain hose out from the A-pillar side.

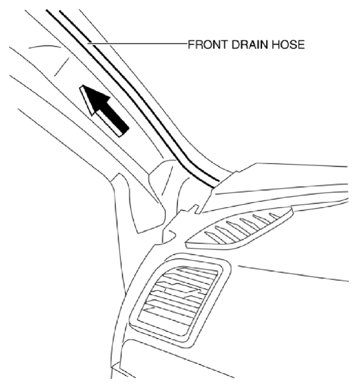

    Fig 4: Pulling Out Front Drain Hose From A-Pillar Side
    G10938910Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
