Antenna Feeder No. 3 Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    2. Front seat belt adjusting cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    3. Front seat belt upper anchor installation bolt (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
    4. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    5. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    6. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    8. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    9. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear passenger's assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  4. Partially peel back the headliner.
    NOTE:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  5. Disconnect antenna feeder No. 2.

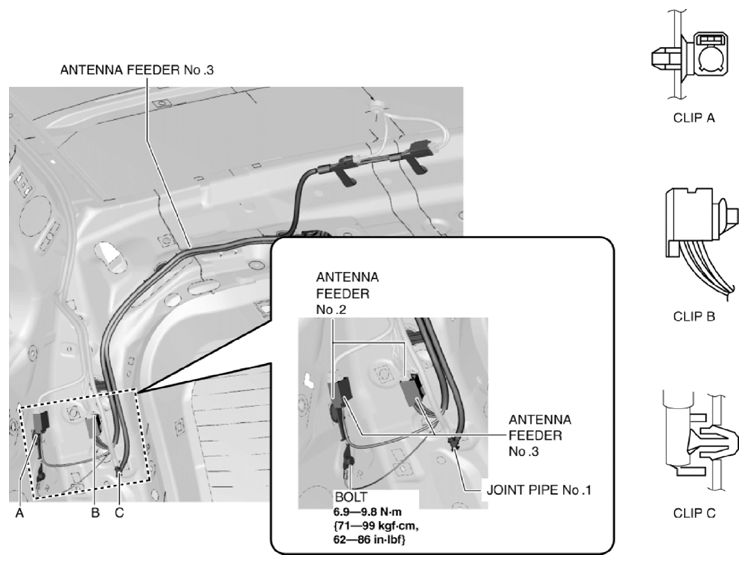

    Fig 1: Disconnecting Antenna Feeder No. 2
    G10939552Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolt.
  7. Remove clips A, B and C.
  8. Disconnect joint pipe No. 1.
  9. Remove clips D and E.

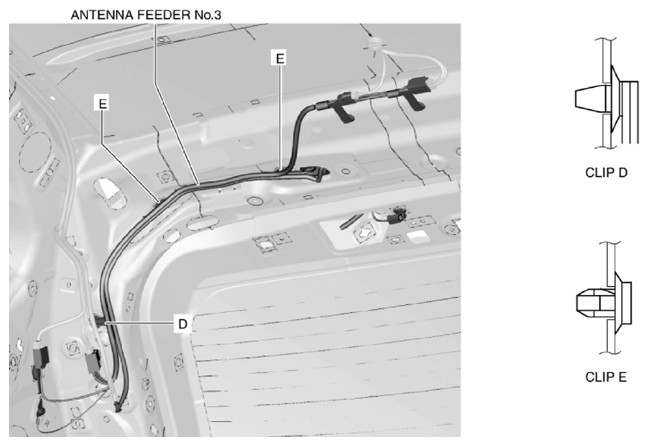

    Fig 2: Removing Clips D And E
    G10939553Courtesy of MAZDA MOTORS CORP.
  10. Remove clips F and G.

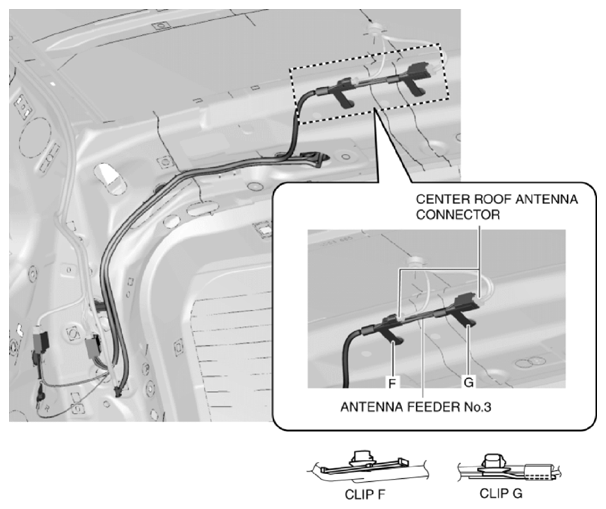

    Fig 3: Removing Clips F And G
    G10939554Courtesy of MAZDA MOTORS CORP.
  11. Disconnect the center roof antenna.
  12. Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

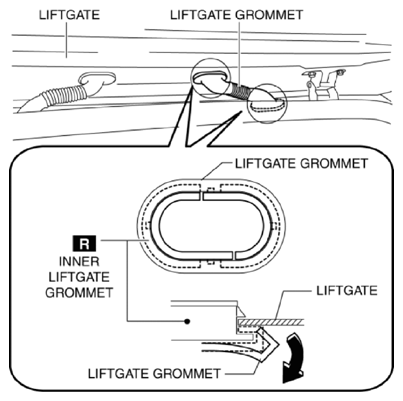

    Fig 4: Removing Liftgate Grommet From Inner Liftgate Grommet
    G10939555Courtesy of MAZDA MOTORS CORP.
  13. Using a tape-wrapped precision flathead screwdriver, press the inner liftgate grommet tabs in the directions of arrows (1) and (2) shown in the figure and remove each inner liftgate grommet from the liftgate and vehicle side in the direction of arrow (3).

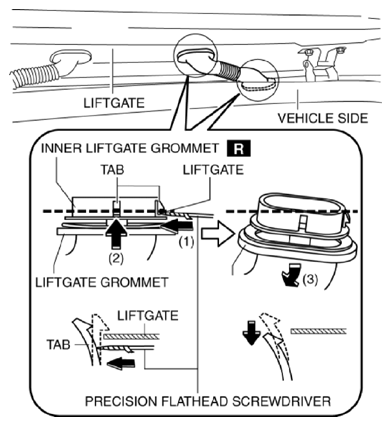

    Fig 5: Pressing Inner Liftgate Grommet Tabs
    G10939556Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the rear washer hose from the rear washer nozzle and remove it.

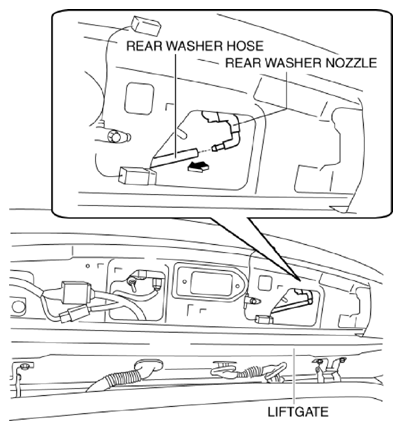

    Fig 6: Disconnecting Rear Washer Hose From Rear Washer Nozzle
    G10939557Courtesy of MAZDA MOTORS CORP.
  15. Remove antenna feeder No. 3.
  16. Install in the reverse order of removal.
