Adjuster Anchor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the lower part of the B-pillar.
  1. Switch the ignition off.
  2. Disconnect the negative battery cable and wait for 1min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Set the adjuster to the lowest position.
  4. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    4. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
  5. Remove bolt A.

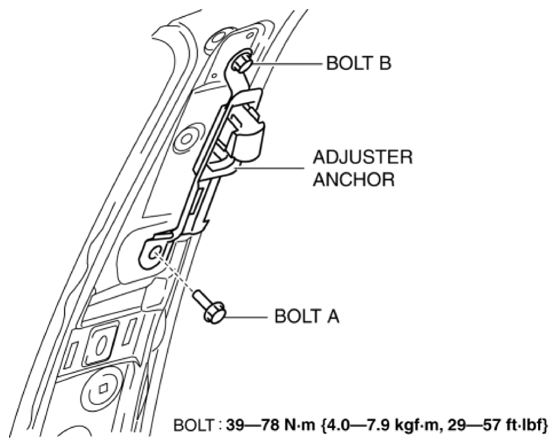

    Fig 1: Identifying Adjuster Anchor And Bolts With Torque Specification
    G10937996Courtesy of MAZDA MOTORS CORP.
  6. Remove bolt B.

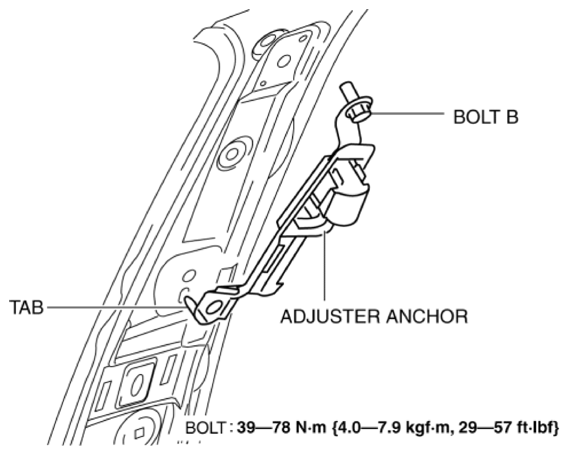

    Fig 2: Identifying Adjuster Anchor, Tab And Bolts With Torque Specification
    G10937997Courtesy of MAZDA MOTORS CORP.
  7. Remove the tab.
  8. Remove the adjuster anchor.
  9. Install in the reverse order of removal.
