Antenna Feeder No. 2 Removal/Installation: Removal
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Headliner (See HEADLINER REMOVAL/INSTALLATION .)

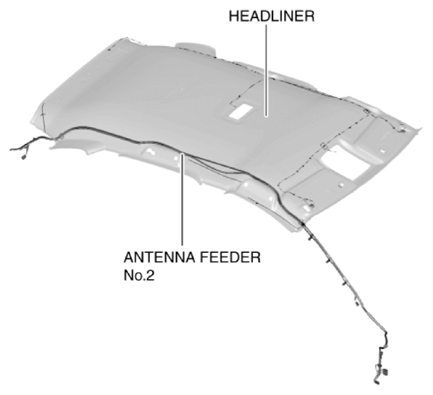

- Peel off the tape shown in the figure and remove antenna feeder No. 2.
