Antenna Feeder No. 2 Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Affix tape shown in the figure and install antenna feeder No. 2.
Without sunroof

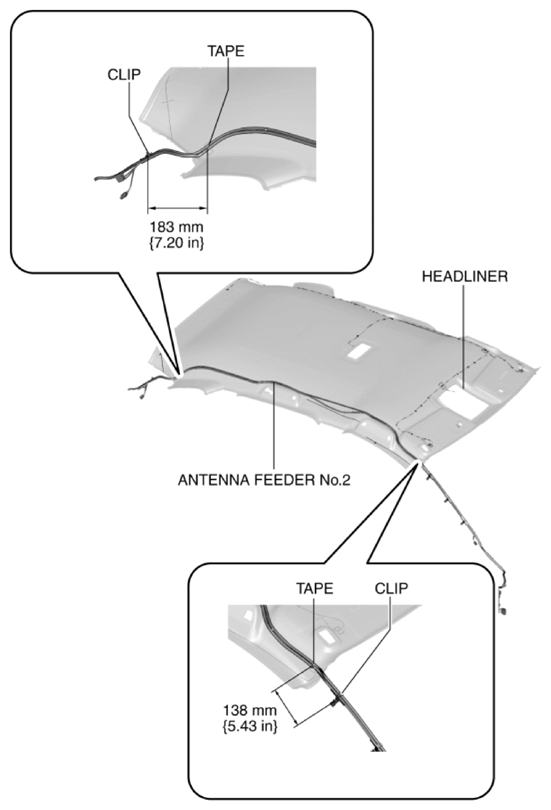

Fig 1: Identifying Antenna Feeder No. 2 (Without Sunroof)
Courtesy of MAZDA MOTORS CORP.

With sunroof

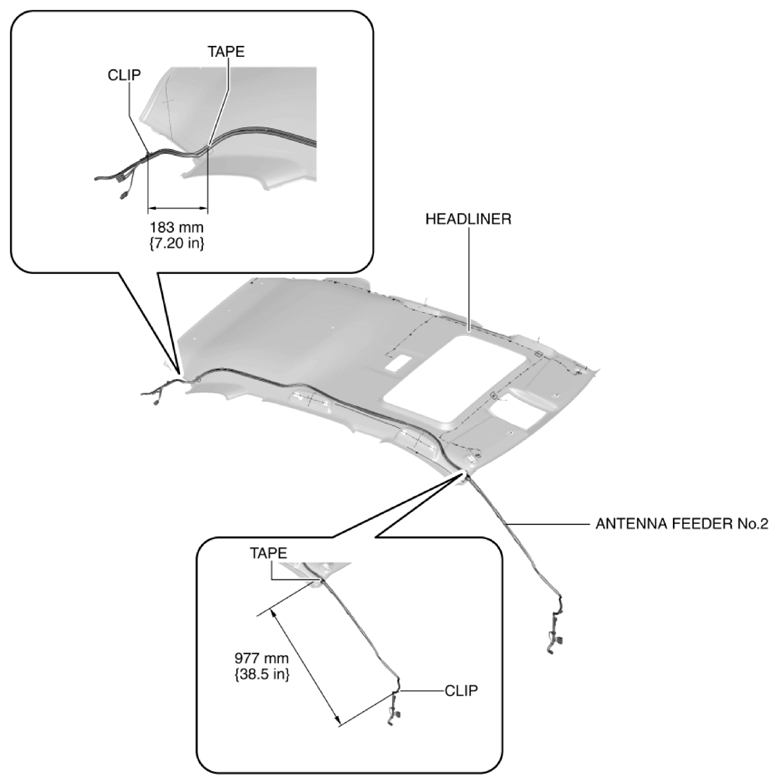

Fig 2: Identifying Antenna Feeder No. 2 (With Sunroof)
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
2. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
6. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
10. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
11. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
12. Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
13. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
14. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
15. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
16. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
17. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
